Description

Price

551

PIN-DOWEL

551R0812

$7.91

11053

BRACKET

11053-3728

$53.35

11060

GASKET,EXHAUST

11060-3712

$33.70

11060A

GASKET,MUFFLER,FR

11060-3713

$31.98

11060B

GASKET,MUFFLER CHAMBER

11060-3714

$31.98

11060C

GASKET,EXHAUST MANIFOLD

11060-3759

$16.53

13271

PLATE

13271-3872

$8.17

18087

MUFFLER,FR

18087-3705

$252.08

18087A

MUFFLER,RR

18087-3706

$223.05

18088

PIPE-EXHAUST

18088-3722

$246.10

32154

PIPE

32154-3709

$56.15

32154A

PIPE

32154-3710

$35.82

49070

MUFFLER-COMP

49070-3743

$649.95

52014

ELBOW

52014-3708

$34.82

59081

MANIFOLD-EXHAUST

59081-3742

$773.74

92005

FITTING,HOSE

92005-3712

$10.88

92009

SCREW,6X20

92009-3870

$4.37

92015

NUT,CAP,8MM

92015-1371

$5.00

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,8.2X18X1.5

92022-3743

$4.22

92150

BOLT,8X35

92150-3833

$9.45

92152

COLLAR

92152-3736

$7.63

92153

BOLT

92153-1276

$2.93

92171

CLAMP

92171-3714

$9.49

92171A

CLAMP

92171-3715

$13.41

92190

TUBE,HEAD-EXHAUST PIPE

92190-3829

$18.58

92190A

TUBE,CHAMBER-MUFLLER

92190-3950

$29.82

92191

TUBE,WATER MUFFLER-PIPE

92191-3953

$28.40

92191A

TUBE,PIPE-TAILPIPE

92191-3954

$104.92

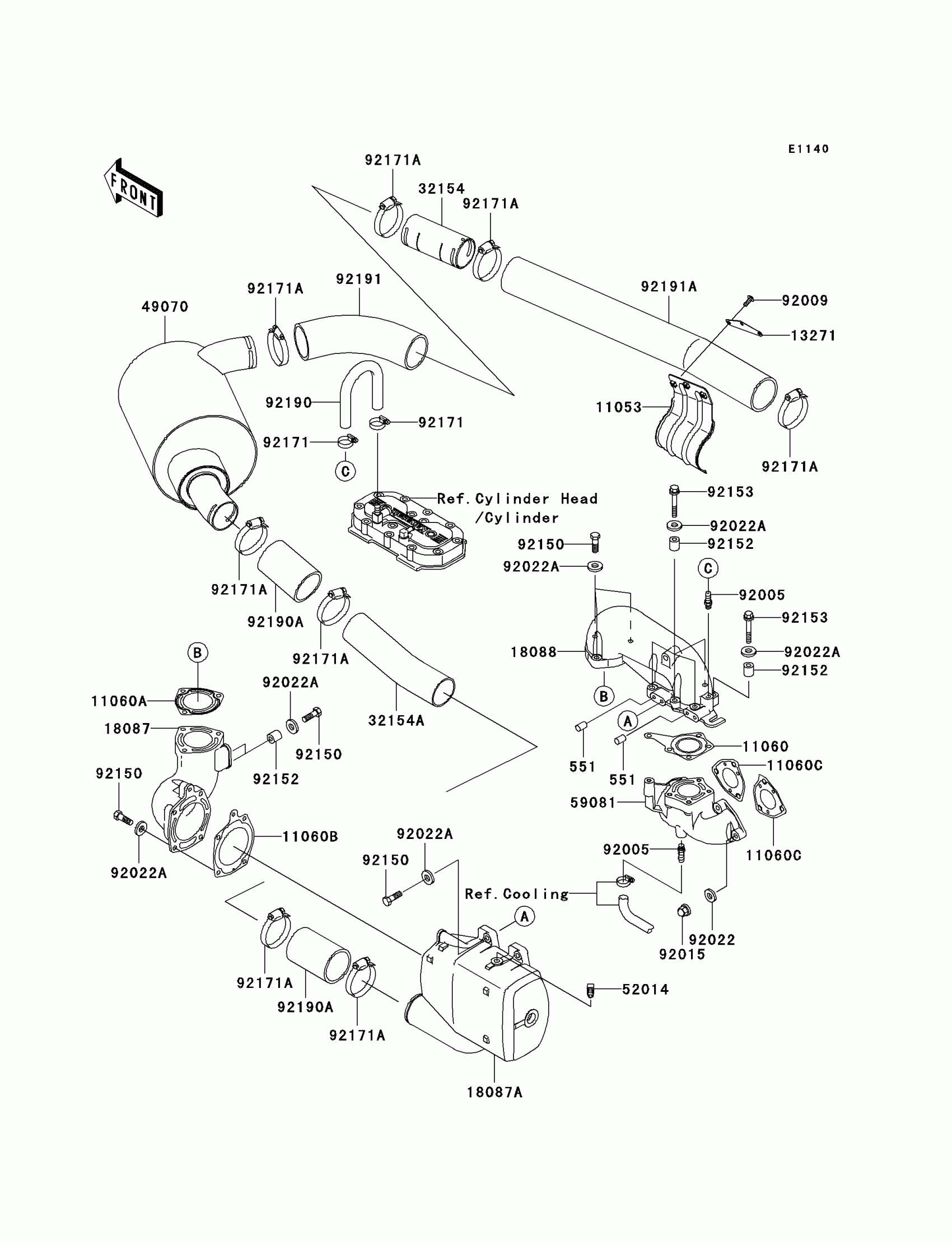

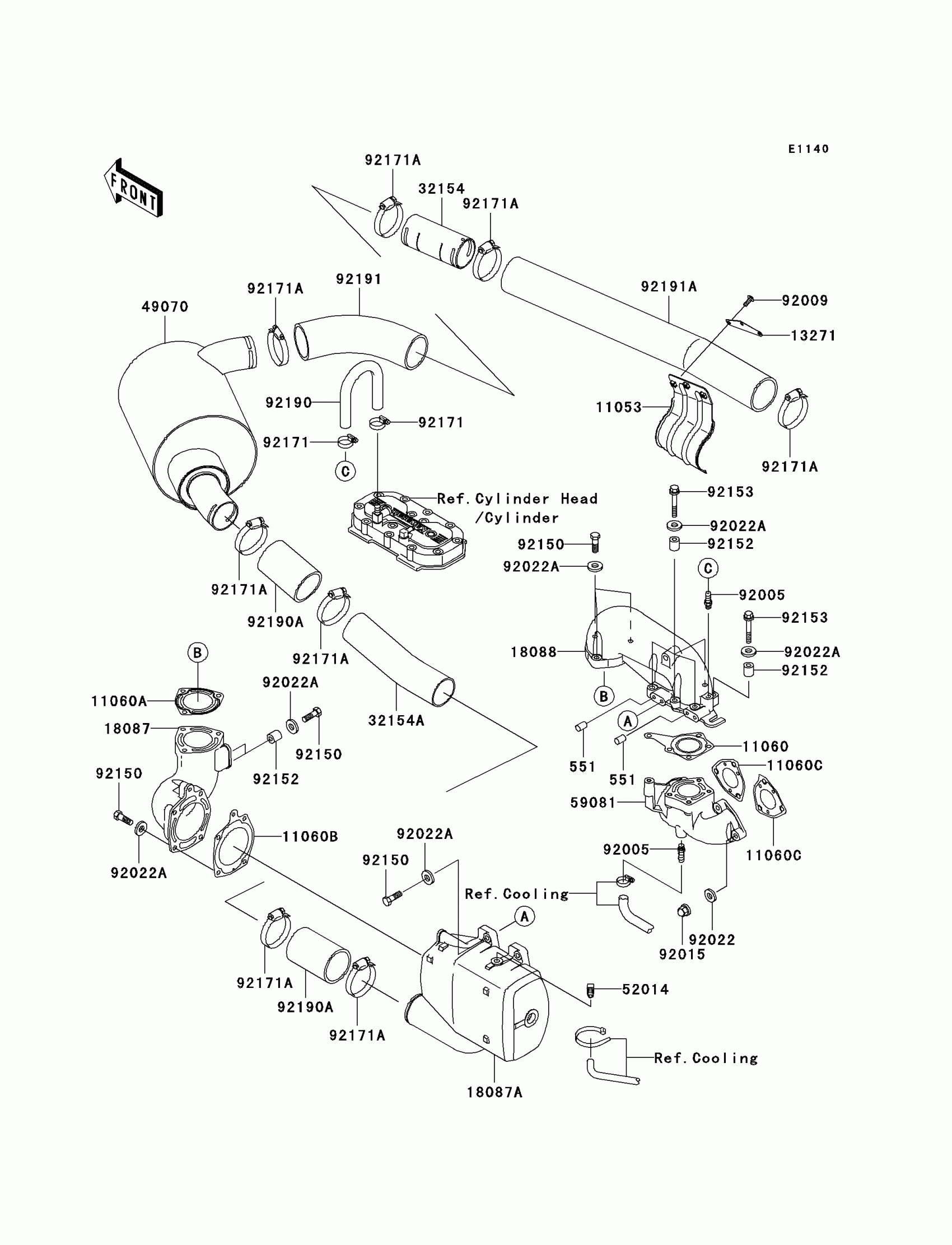

Kawasaki Jet Ski® 800 SX-R Muffler(s) Diagram

PIN-DOWEL

BRACKET

GASKET,EXHAUST

GASKET,MUFFLER,FR

GASKET,MUFFLER CHAMBER

GASKET,EXHAUST MANIFOLD

PLATE

MUFFLER,FR

MUFFLER,RR

PIPE-EXHAUST

PIPE

PIPE

MUFFLER-COMP

ELBOW

MANIFOLD-EXHAUST

FITTING,HOSE

SCREW,6X20

NUT,CAP,8MM

WASHER,8.2X18X1.5

WASHER,8.2X18X1.5

BOLT,8X35

COLLAR

BOLT

CLAMP

CLAMP

TUBE,HEAD-EXHAUST PIPE

TUBE,CHAMBER-MUFLLER

TUBE,WATER MUFFLER-PIPE

TUBE,PIPE-TAILPIPE
