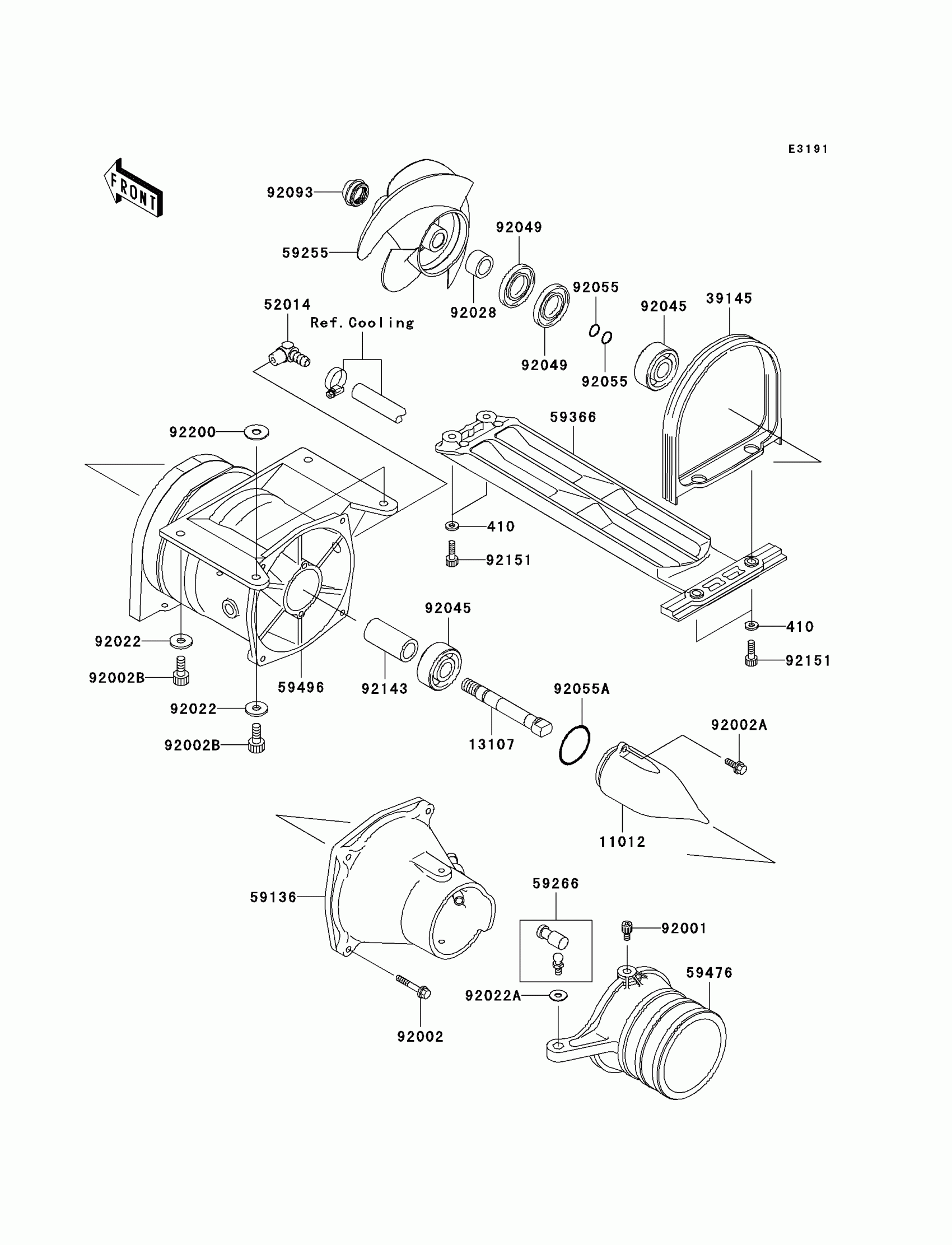

Kawasaki JET SKI® 800 SX-R™ Jet Pump Diagram
#
Description
Price
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
11012
CAP,JET PUMP
11012-3712
$58.91
13107
SHAFT,JET PUMP
13107-3721
$77.79
39145
TRIM-SEAL
39145-3735
$48.67
52014
ELBOW
52014-3724
$43.53
59136
NOZZLE-PUMP
59136-3730
$140.79
59255
IMPELLER-COMP
59255-3726
$579.43
59266
JOINT-BALL
59266-3707
$66.16
59366
GRATE
59366-3721
$97.19
59476
NOZZLE-STRG
59476-3713
$87.11
59496
VANE-GUIDE
59496-3752
Unavailable
92001
BOLT,SOCKET,6X11
92001-3701
$14.67
92002
BOLT,6X35
92002-3715
$6.61
92002A
BOLT,6X16
92002-3728
$4.69
92002B
BOLT,SOCKET,8X20
92002-3771
$8.28
92022
WASHER,8.4X23X2.5
92022-3744
$4.18
92022A
WASHER
92022-567
$2.67
92028
BUSHING,17X25X15
92028-3717
$34.49
92045
BEARING-BALL,#6303 2RS
92045-3746
$29.12
92049
SEAL-OIL,TBY25X47X6
92049-3714
$33.99
92055
RING-O,13.0X1.9
92055-1011
$7.62
92055A
RING-O
92055-3706
$4.45
92093
SEAL
92093-3749
$4.96
92143
COLLAR,17.4X25.4X53
92143-3708
$24.05
92151
BOLT,SOCKET,6X20
92151-3774
$1.83
92200
WASHER,8.5X25X1.5
92200-3717
$4.92
