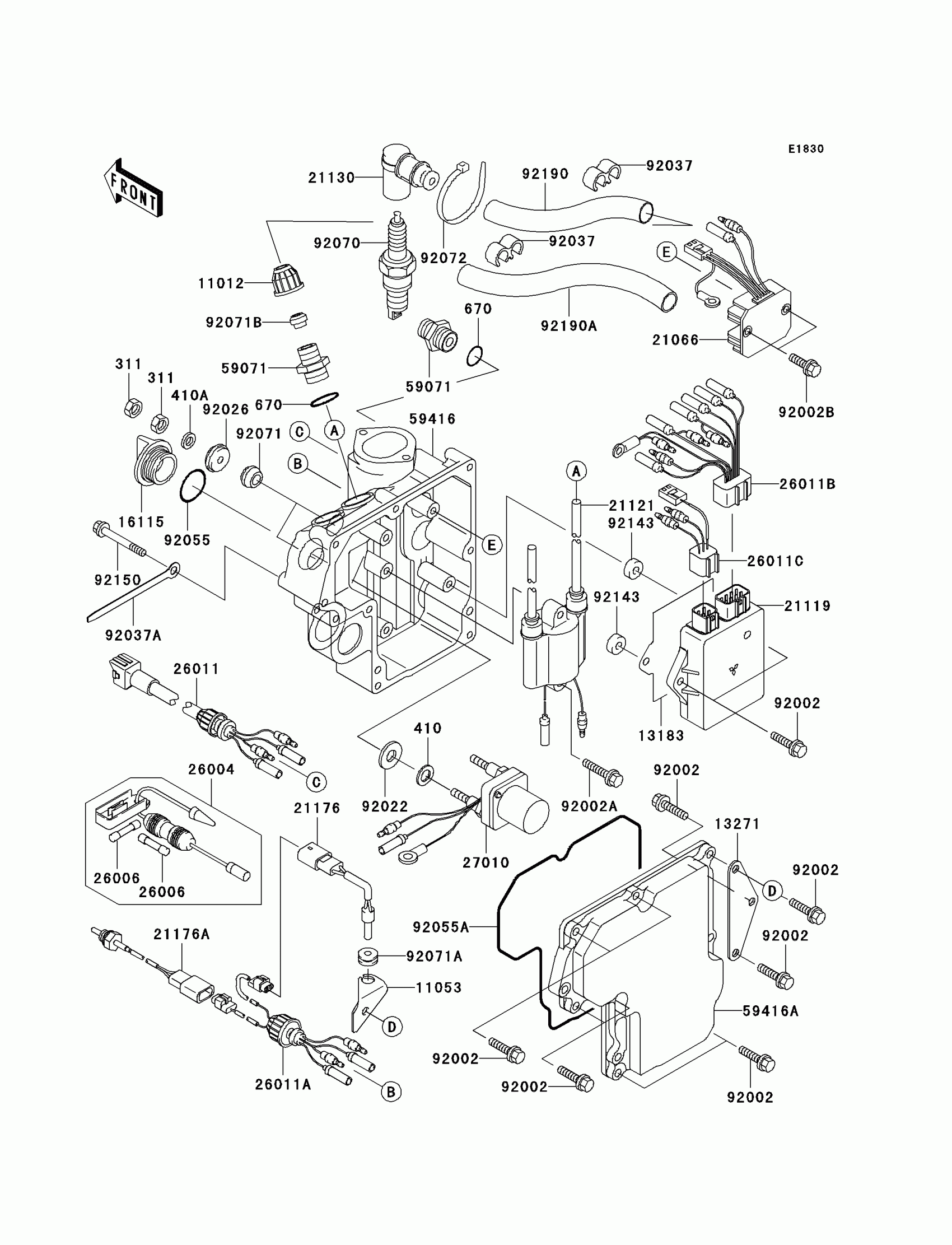

Kawasaki Jet Ski® 800 SX-R Ignition System Diagram

#

Description
Price

311

NUT-HEX,6MM

311R0600

$0.70

11012

CAP

11012-3005

$5.54

11053

BRACKET,AIR TEMP SENSOR

11053-3775

$7.68

13183

PLATE

13183-3811

$8.44

13271

PLATE

13271-3870

$10.05

16115

CAP-OIL FILLER

16115-1009

$14.30

21066

REGULATOR-VOLTAGE

21066-3709

$208.80

21119

IGNITER

21119-3764

$721.39

21121

COIL-IGNITION

21121-3713

$121.33

21130

CAP-SPARK PLUG

21130-3707

$61.34

21176

SENSOR,INTAKE AIR TEMP

21176-3730

$82.80

21176A

SENSOR,TEMP

21176-3758

$133.71

26004

FUSE-ASSY

26004-3712

$55.72

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-0003

$5.74

26011

WIRE-LEAD

26011-3792

$130.74

26011A

WIRE-LEAD,SENSOR

26011-3906

$158.76

26011B

WIRE-LEAD

26011-3907

$115.75

26011C

WIRE-LEAD

26011-3908

$69.42

27010

SWITCH,STARTER RELAY

27010-3760

$115.46

59071

JOINT

59071-3001

$6.29

59416

CASE-ELECTRIC,LWR

59416-3762

$91.96

59416A

CASE-ELECTRIC,UPP

59416-3763

$51.65

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92022

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92037

CLAMP,HOSE

92037-1603

$5.00

92037A

CLAMP,L=100

92037-3736

$5.52

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,ELECTRIC CASE

92055-3731

$24.84

92070

PLUG-SPARK,BR8ES(NGK),SOLID

92070-3702

Unavailable

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-3733

$4.14

92071B

GROMMET

92071-527

$6.68

92072

BAND,L=100.08

92072-3882

$2.02

92143

COLLAR,6.5X16X6

92143-1496

$9.05

92150

BOLT,6X85

92150-3763

$10.14

92190

TUBE,HIGH TENSION,L=210

92190-3708

$12.07

92190A

TUBE,8X10X295

92190-3960

$13.18

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

670

O RING,16MM

670B2016

$1.36
