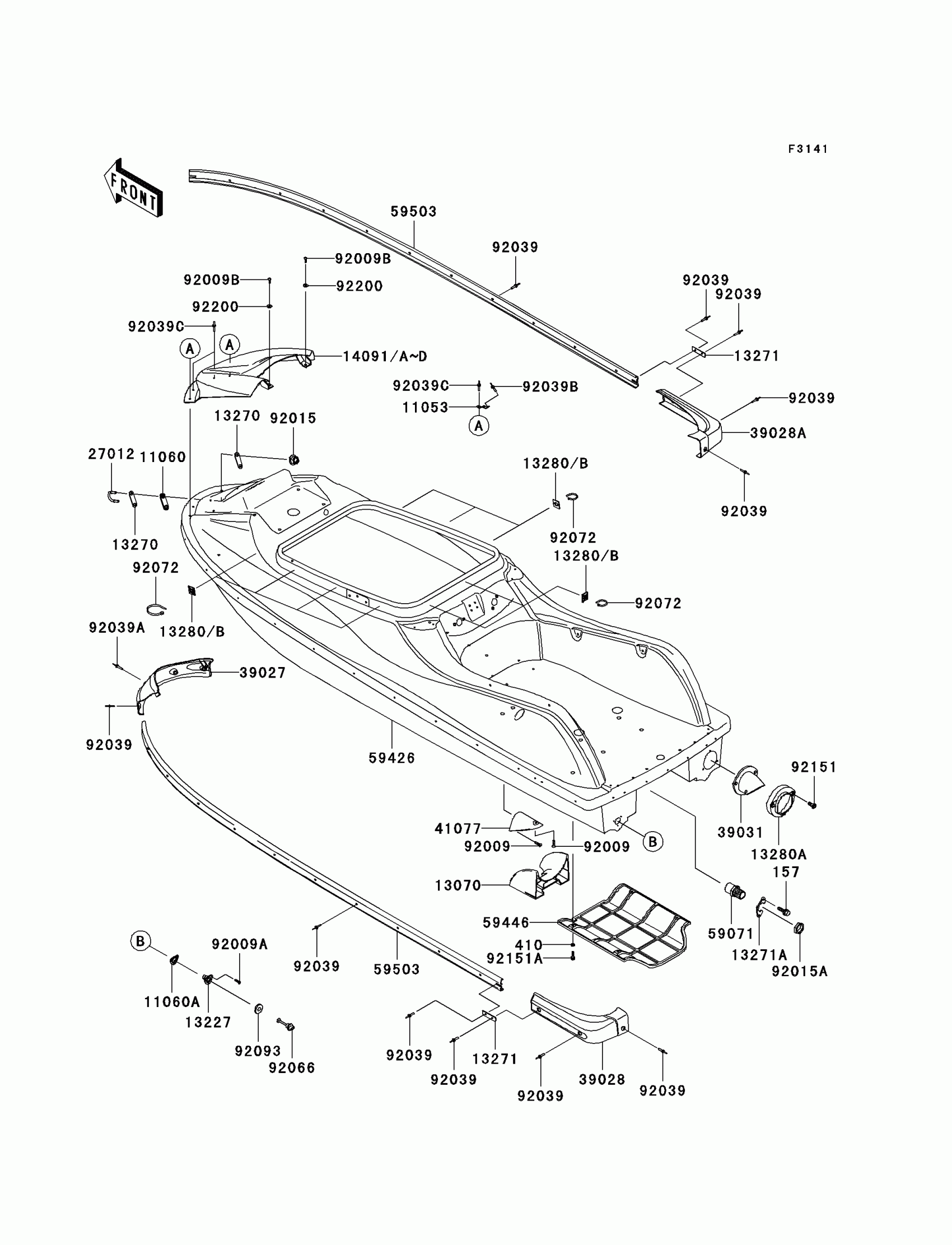

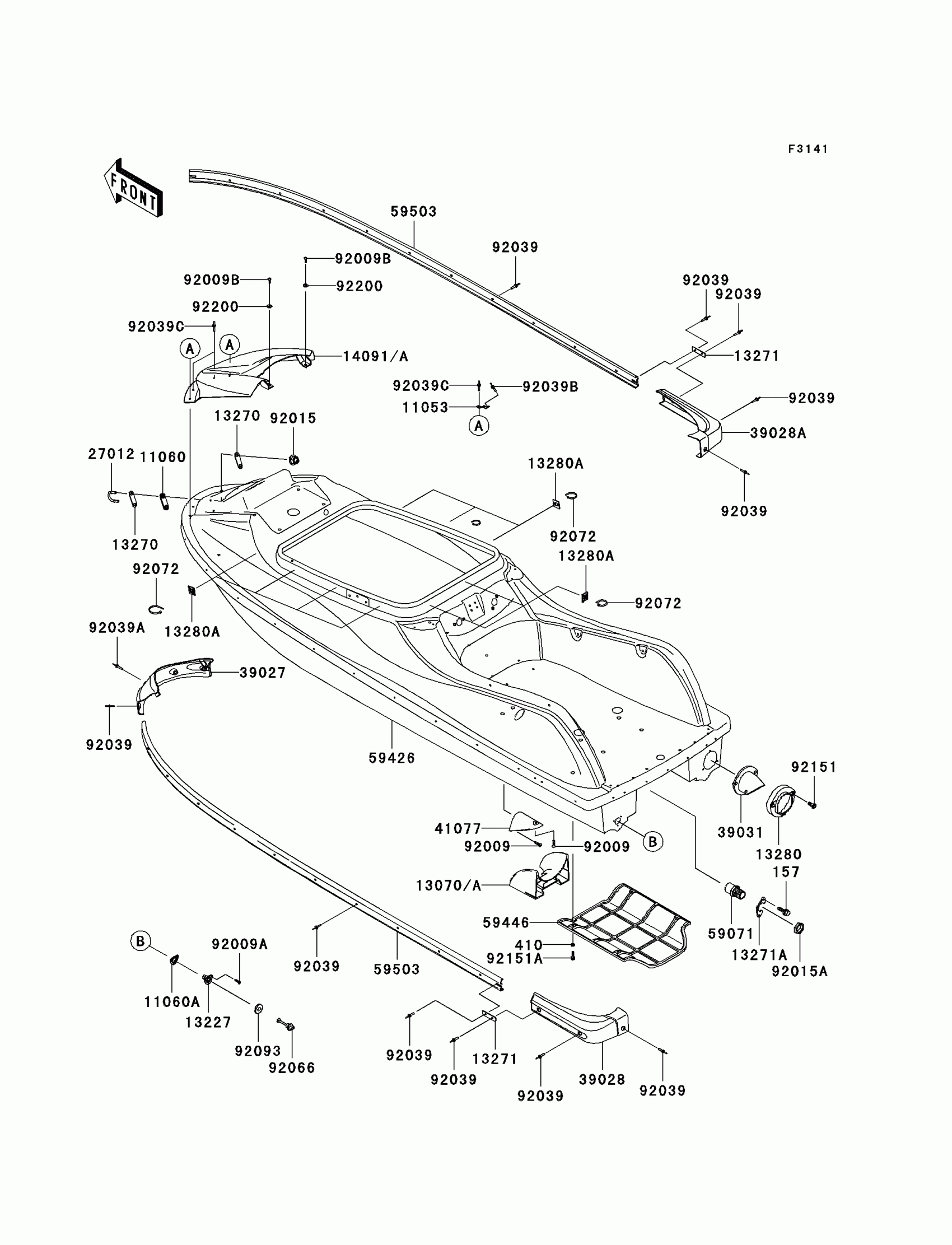

Kawasaki JET SKI® 800 SX-R™ Hull Diagram
#
11053
BRACKET
11053-3739
$8.98
11060
GASKET,U HOOK,FR
11060-3799
$6.29
11060A
GASKET,DRAIN PLUG
11060-3801
$6.61
13227
HOUSING,DRAIN PLUG,F.BLACK
13227-3721-6Z
$7.98
13270
PLATE
13270-3896
$3.94
13271
PLATE
13271-3884
$5.22
13271A
PLATE
13271-3909
$9.08
13280
HOLDER,TAIL PIPE CAP
13280-3742
$32.98
13280A
HOLDER
13280-3757
$5.07
27012
HOOK
27012-3797
$32.29
39027
BUMPER-FRONT,F.BLACK
39027-3745-6Z
$74.44
39028
BUMPER-REAR,LH,F.BLACK
39028-3753-6Z
$44.84
39028A
BUMPER-REAR,RH,F.BLACK
39028-3754-6Z
$44.84
39031
CAP-END,TAIL PIPE
39031-3709
$70.27
41077
ADAPTER
41077-3701
$153.79
59071
JOINT
59071-3763
$26.09
59446
COVER-JET PUMP
59446-3755
$208.33
59503
FENDER-BOAT,F.BLACK
59503-3707-6Z
$339.73
92009
SCREW,TAPPING,6X20
92009-3842
$1.83
92009A
SCREW,TAPPING,4X16
92009-3849
$1.59
92009B
SCREW,5X16
92009-3868
$1.54
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92015A
NUT,20MM
92015-3738
$7.31
92039
RIVET
92039-3778
$0.95
92039A
RIVET
92039-3779
$0.95
92039B
RIVET
92039-3780
$4.45
92039C
RIVET
92039-3794
$7.71
92066
PLUG,RR,DRAIN,F.BLACK
92066-3783-6Z
$17.50
92072
BAND,L=188.85
92072-0105
$1.73
92093
SEAL
92093-3720
$3.62
157
BOLT-WSP,5X18
157R0518
$4.45
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
92151
BOLT,SOCKET,M6,SHOULDER
92151-3746
$12.05
92151A
BOLT,SOCKET,6X20
92151-3774
$1.83
92200
WASHER,5.9X16X1.5
92200-3714
$2.14
13070
GUIDE,INTAKE,EBONY
13070-3732-H8
$64.21
13070A
GUIDE,INTAKE,J.WHITE
13070-3732-8C
$64.21
14091
COVER,NOSE,EBONY
14091-3773-H8
$243.70
14091A
COVER,NOSE,C.L.GREEN
14091-3773-367
$243.70
59426
HULL-COMP,J.WHITE
59426-3943-22
Unavailable
