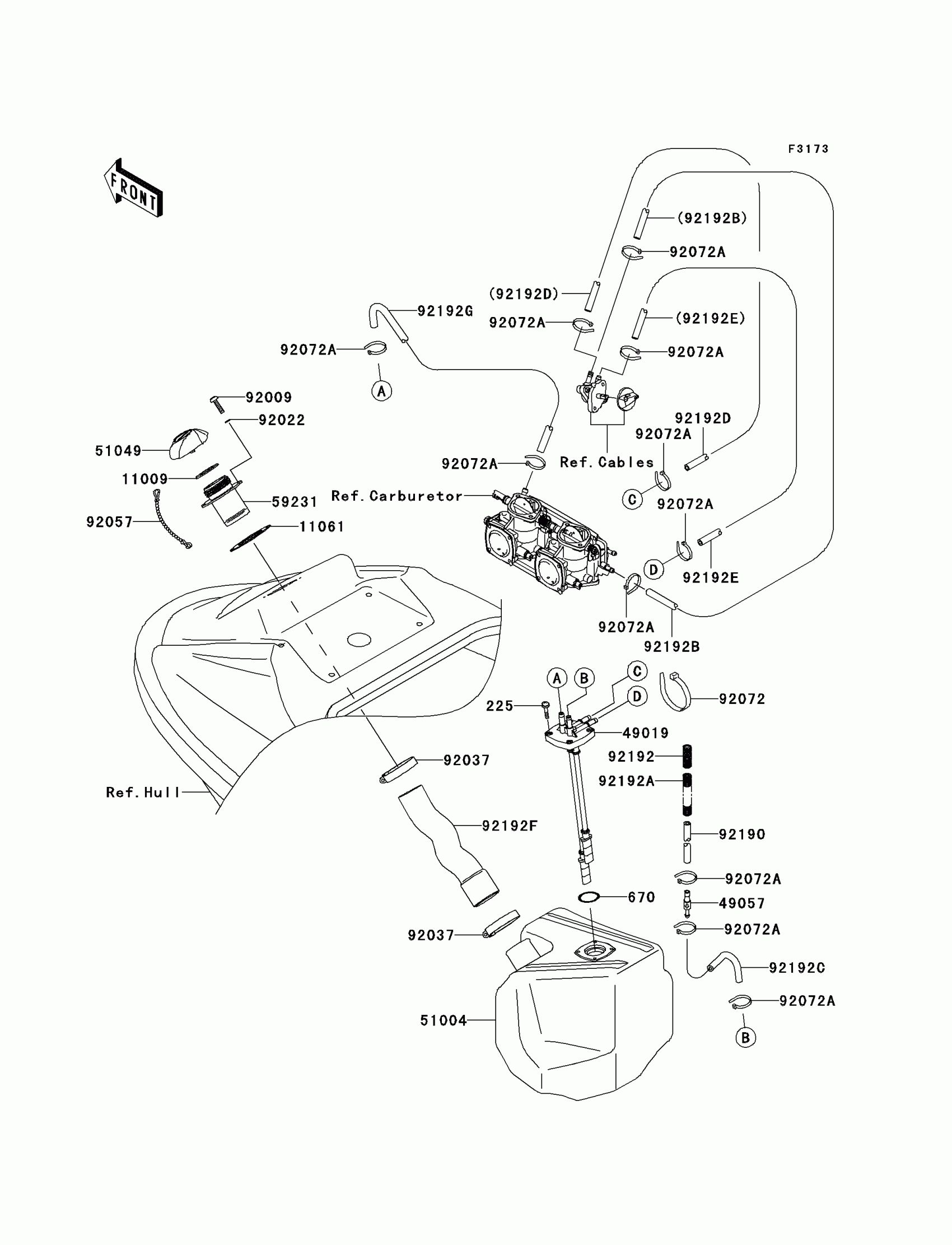

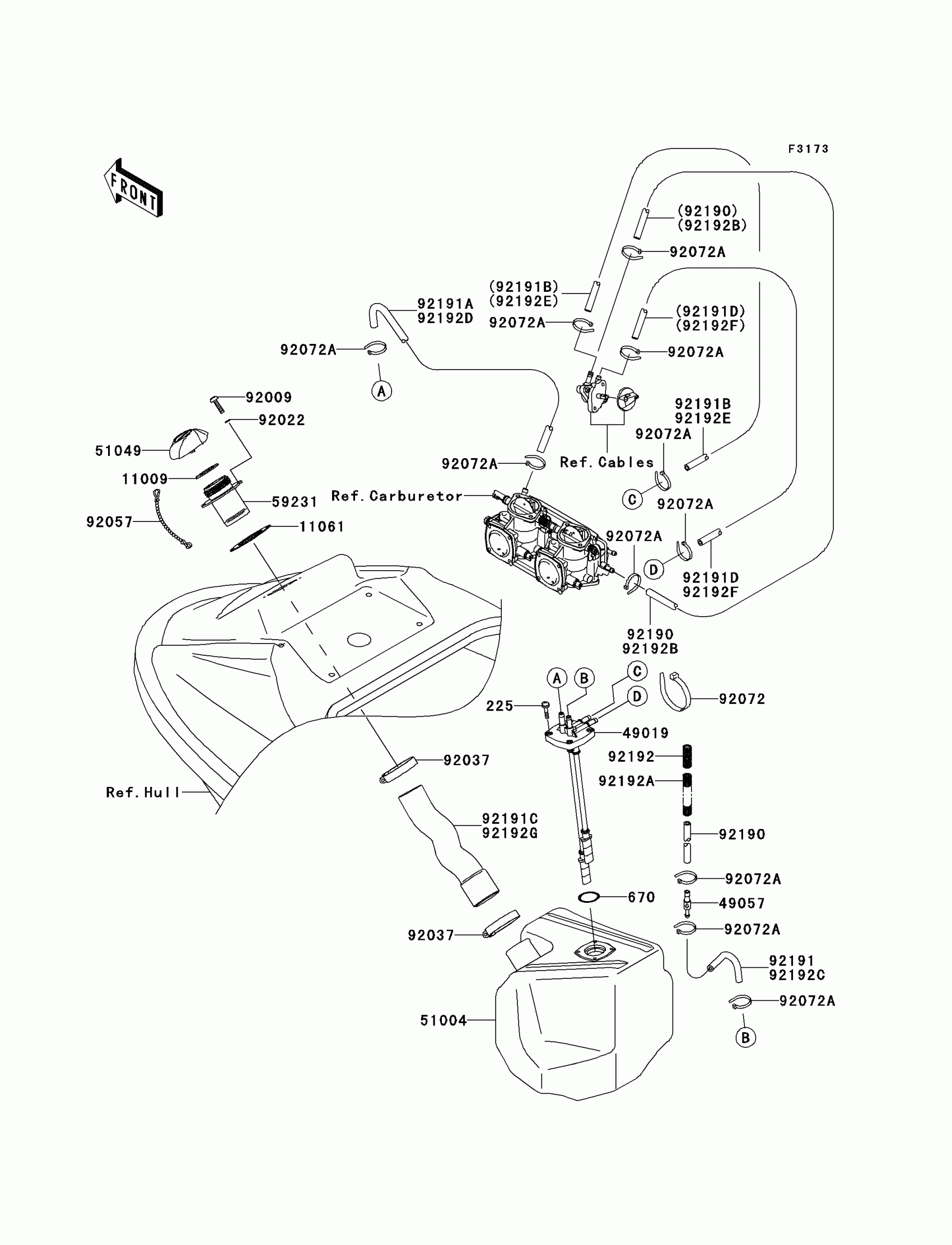

Kawasaki Jet Ski® 800 SX-R Fuel Tank Diagram

#

Description
Price

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.45

670

"0" RING,36MM

670B3036

$1.03

11009

GASKET,TANK CAP

11009-3020

$13.51

11061

GASKET

11061-3701

$14.16

49019

FILTER-FUEL

49019-3718

$69.05

49057

VALVE-RELIEF

49057-3707

$64.85

51004

TANK-FUEL

51004-3744

$151.01

51049

CAP-TANK,FUEL

51049-3725

Unavailable

59231

FILLER,FUEL TANK

59231-3716

Unavailable

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,L=100.08

92072-3882

$2.02

92190

TUBE,5.8X10.8X500

92190-3846

$22.46

92192

TUBE,CORRUGATED,L=40

92192-3733

$0.76

92192A

TUBE,CORRUGATED,L=200

92192-3734

$1.64

92192B

TUBE,5.8X10.8X500

92192-3834

$55.80

92192C

TUBE,AIR VENT

92192-3835

$41.96

92192D

TUBE,RETURN

92192-3836

$84.73

92192E

TUBE,RES

92192-3837

$87.60

92192F

TUBE,ON

92192-3838

$87.60

92192G

TUBE,FUEL TANK-FILLER

92192-3839

$79.78
