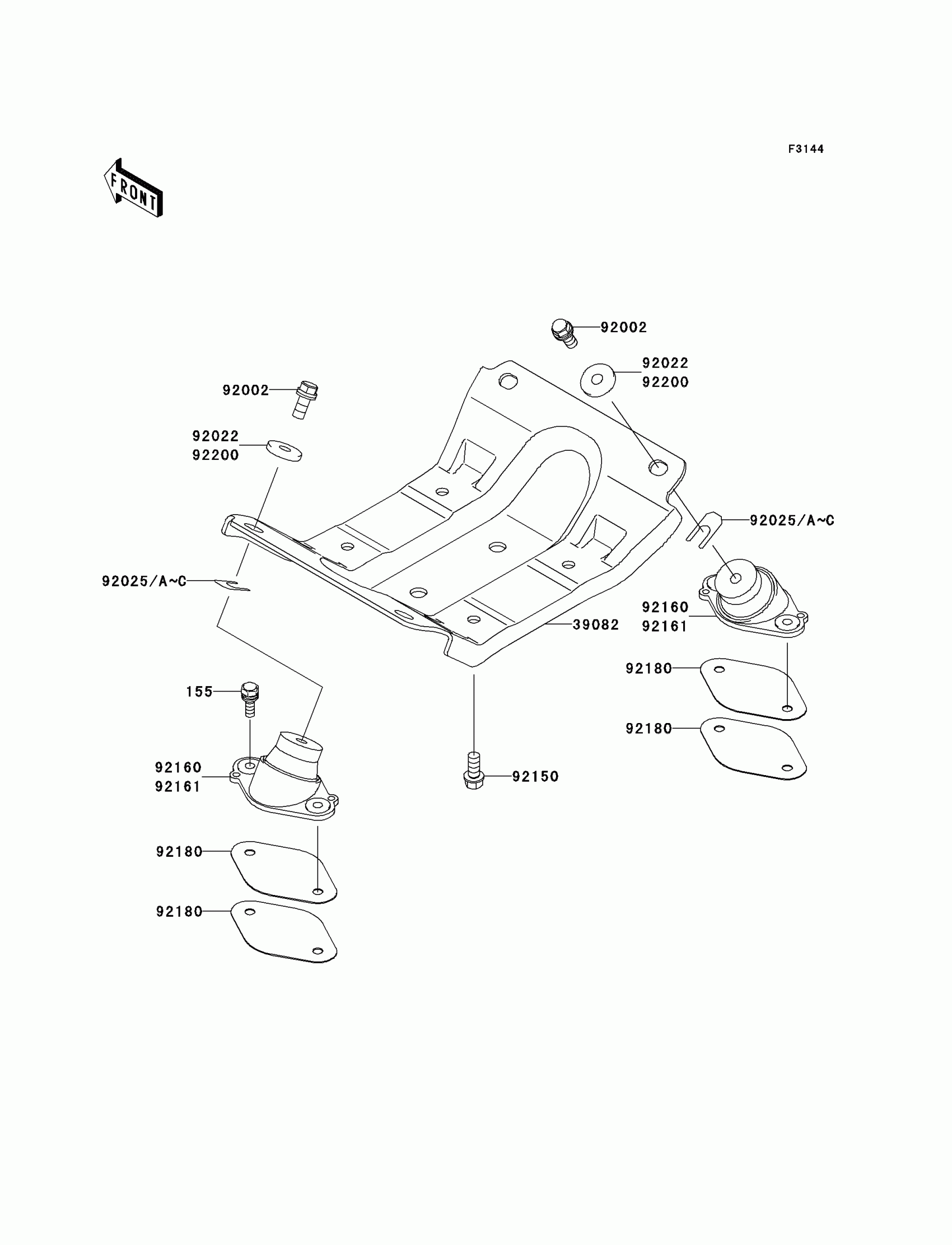

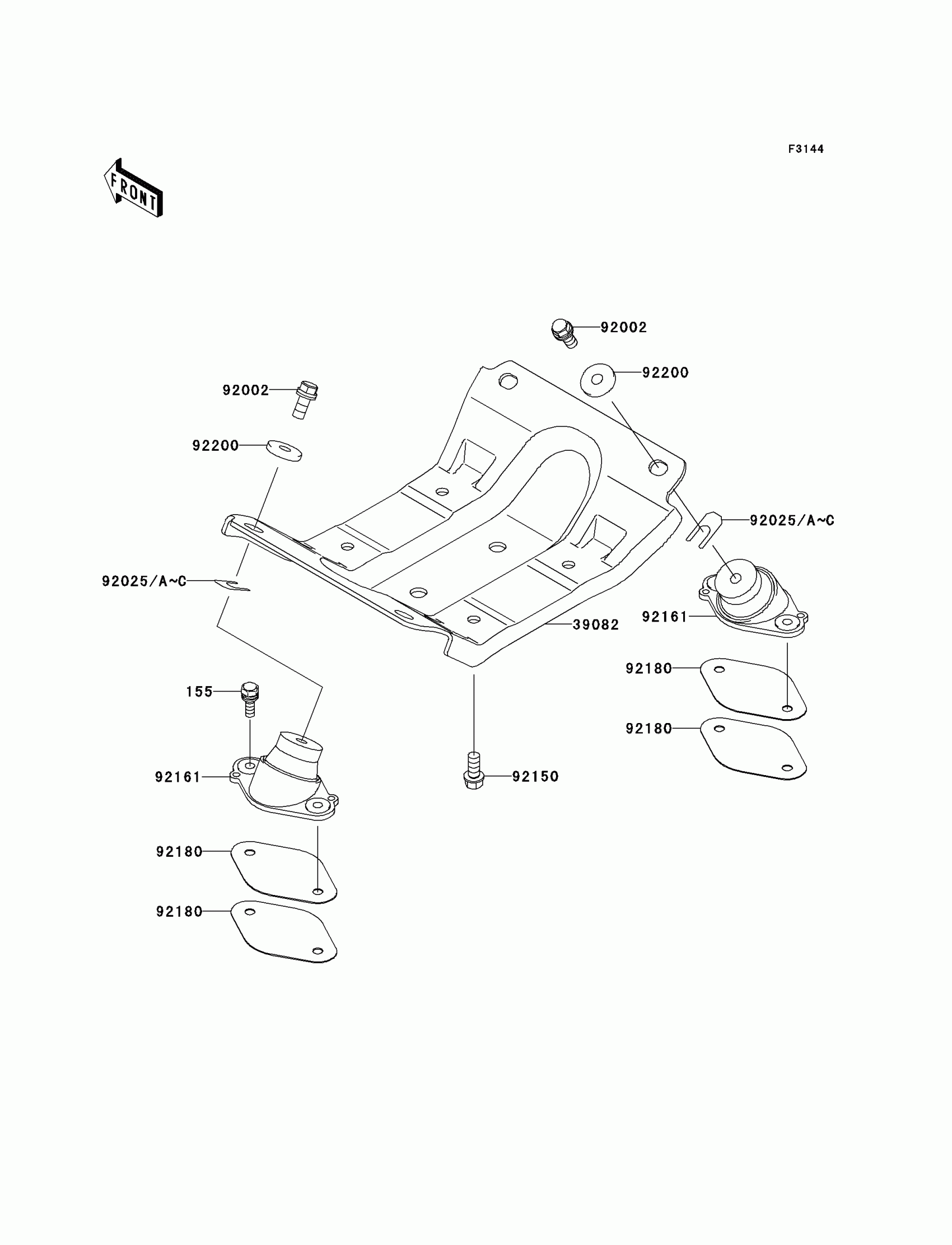

Kawasaki Jet Ski® 800 SX-R Engine Mount Diagram

#

Description
Price

155

BOLT-WSP-SMALL,8X30

155R0830

$4.93

39082

MOUNT-ENGINE

39082-3723

Unavailable

92002

BOLT,10X25

92002-3770

$8.41

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92150

BOLT,10X25

92150-3818

$5.25

92161

DAMPER,ENGINE MOUNT

92161-3788

$166.29

92180

SHIM,T=1.0

92180-3715

Unavailable

92200

WASHER,10.5X26X4

92200-3798

$3.54
