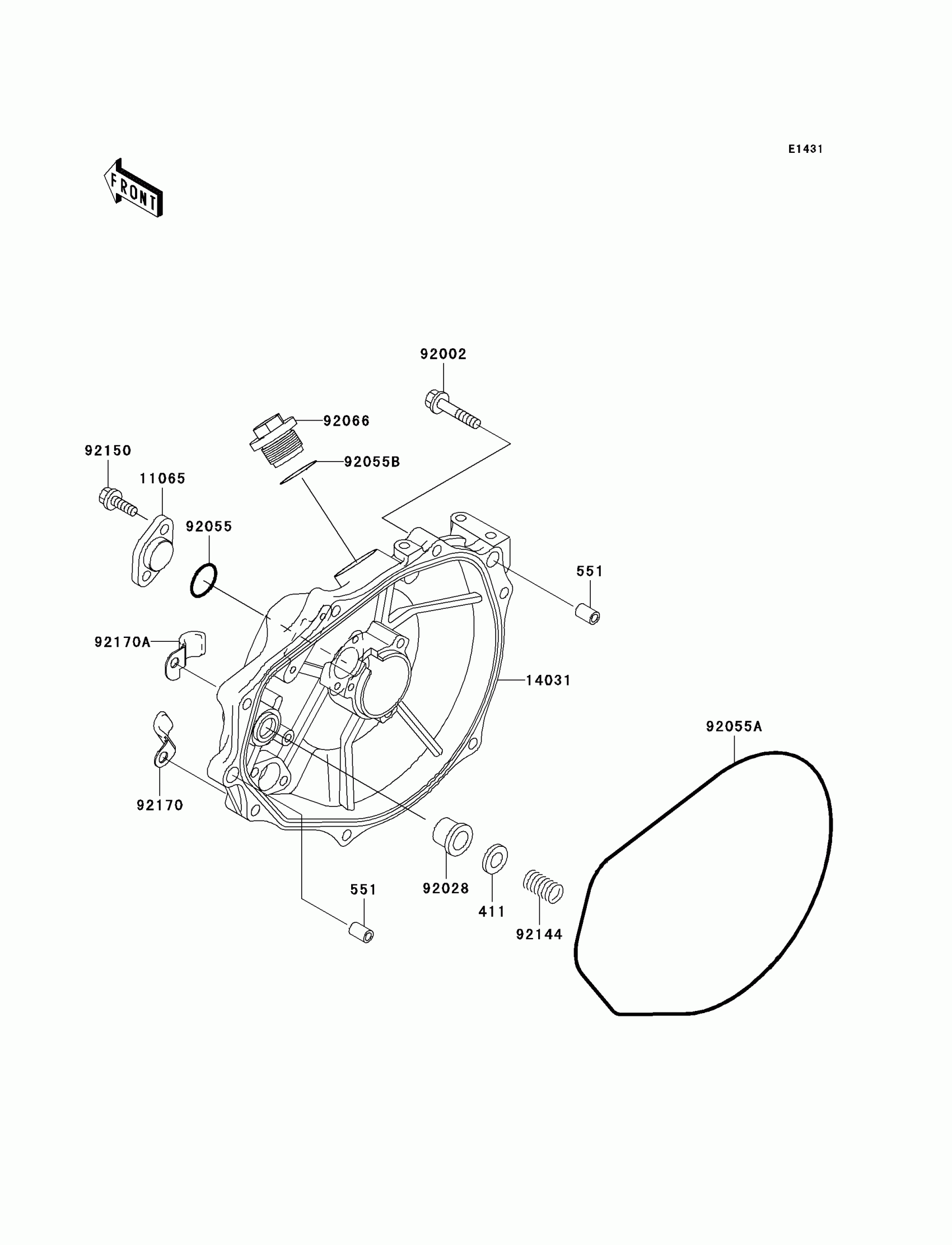

Kawasaki Jet Ski® 800 SX-R Engine Cover(s) Diagram

Description

Price

411

WASHER-PLAIN,5MM

411S0500

$0.78

551

PIN-DOWEL

551R0812

$6.04

11065

CAP

11065-3725

$69.11

14031

COVER-GENERATOR

14031-3735

$260.35

92002

BOLT,6X30

92002-3726

$3.57

92028

BUSHING

92028-3718

$7.18

92055

RING-O,19.5X1.5

92055-055

$3.29

92055A

RING-O,GENERATOR COVER

92055-3712

$27.13

92055B

RING-O

92055-515

$1.98

92066

PLUG

92066-3739

$18.75

92144

SPRING

92144-3728

$4.10

92150

BOLT,6X18

92150-3729

$3.57

92170

CLAMP

92170-3735

$8.58

92170A

CLAMP

92170-3736

$8.58
