Description

Price

311

NUT-HEX,5MM

311R0500

$1.75

410

W-PLAIN-S,5MM

410S0500

$1.59

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

13271A

PLATE

13271-3885

$18.87

13271B

PLATE

13271-3886

$7.75

13271C

PLATE,LH

13271-3894

$11.91

13271D

PLATE,RH

13271-3895

$11.91

13280

HOLDER,FIRE EXTINGUISHER

13280-3740

$52.37

14024

COVER

14024-3748

$7.76

27012

HOOK

27012-3711

$37.56

27012A

HOOK

27012-3842

$14.99

27016

LOCK-ASSY

27016-3703

$166.56

39145

TRIM-SEAL,L=2156

39145-3781

$55.34

53044

TRIM,L=120

53044-3767

$6.28

59456B

HOOD-COMP-ENGINE,L.GREEN

59456-3730-777

$566.21

92015

NUT,LOCK,6MM

92015-3766

$5.91

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3783

$8.05

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92071

GROMMET

92071-3742

$9.94

92072

BAND,TOOL CASE

92072-3859

$18.69

92075

DAMPER

92075-3737

$24.84

92150

BOLT,5X16

92150-3778

$4.65

92153

BOLT,SOCKET,5X20

92153-3716

$2.90

92160

DAMPER,25X25

92160-3864

$3.32

92160A

DAMPER

92160-3913

$6.69

92161

DAMPER

92161-3741

$100.79

92191

TUBE

92191-3987

$66.80

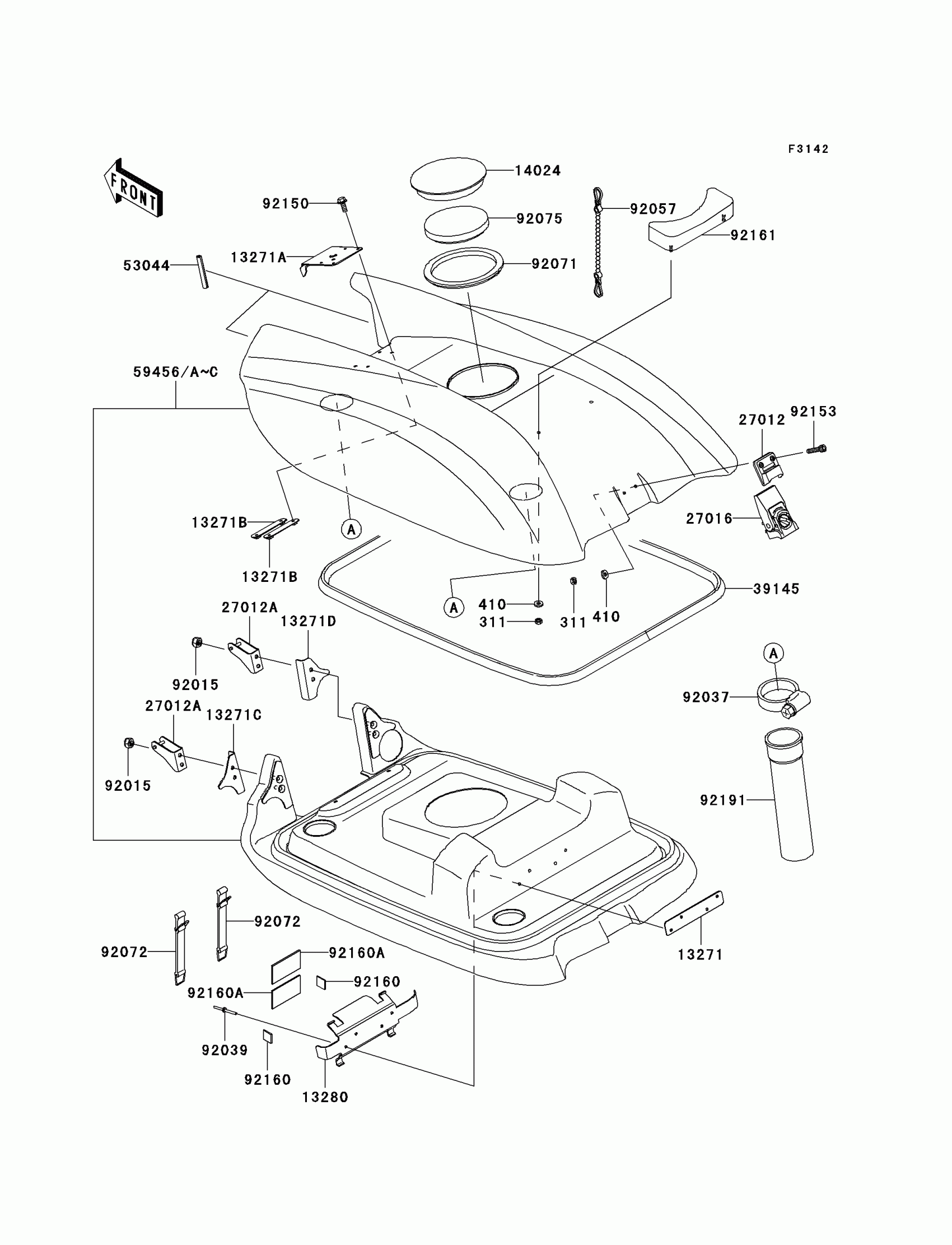

Kawasaki Jet Ski® 800 SX-R Engine Hood Diagram

NUT-HEX,5MM

W-PLAIN-S,5MM

PLATE,FIRE EXTINGUISHER

PLATE

PLATE

PLATE,LH

PLATE,RH

HOLDER,FIRE EXTINGUISHER

COVER

HOOK

HOOK

LOCK-ASSY

TRIM-SEAL,L=2156

TRIM,L=120

HOOD-COMP-ENGINE,L.GREEN

NUT,LOCK,6MM

CLAMP

RIVET

CHAIN,COVER,L=100

GROMMET

BAND,TOOL CASE

DAMPER

BOLT,5X16

BOLT,SOCKET,5X20

DAMPER,25X25

DAMPER

DAMPER

TUBE
