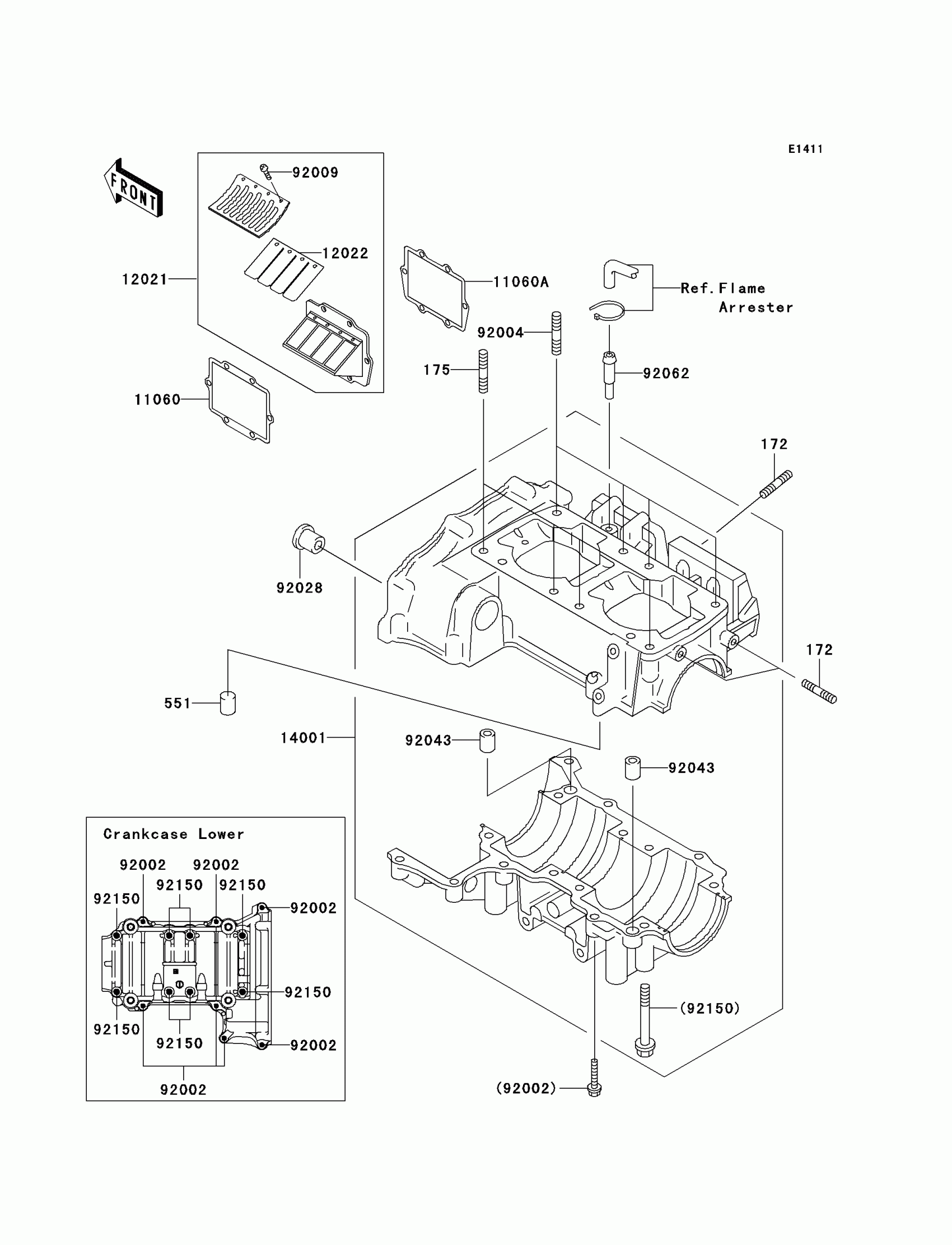

Kawasaki JET SKI® 800 SX-R™ Crankcase Diagram

Description

Price

172

BOLT-STUD,6X20

172R0620

$7.83

175

BOLT-STUD-FINE,10X35

175R1035

$10.56

551

PIN-DOWEL

551R0612

$4.69

11060

GASKET,REED VALVE

11060-3717

$17.78

11060A

GASKET,REED VALVE

11060-3757

$17.78

12021

VALVE-ASSY-REED

12021-3708

$150.51

12022

VALVE-REED

12022-3703

$27.37

14001

SET-CRANKCASE

14001-5391

$809.95

92002

BOLT,6X30

92002-3726

$4.69

92004

STUD,10X35

92004-3752

$7.22

92009

SCREW,3X6

92009-1371

$4.18

92028

BUSHING

92028-3718

$9.43

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92062

NOZZLE

92062-3705

$8.44

92150

BOLT,8X65

92150-3708

$12.18
