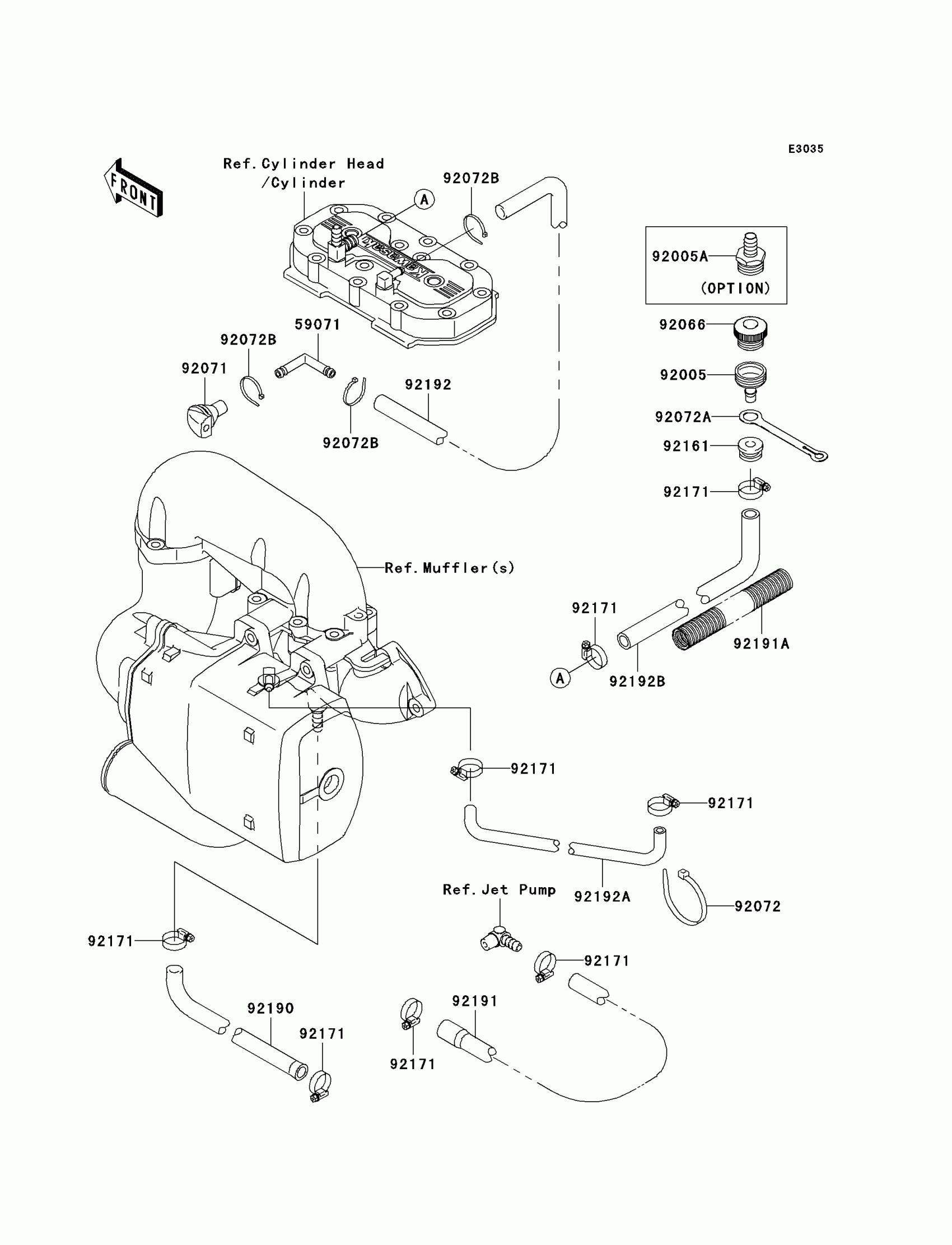

Kawasaki JET SKI® 800 SX-R™ Cooling Diagram

Description

Price

59071

JOINT

59071-3736

$12.96

92005

FITTING,FLUSH

92005-3744

$16.50

92005A

FITTING,FLUSH

92005-3748

$9.68

92066

PLUG

92066-3787

$11.84

92071

GROMMET

92071-3815

$5.46

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND

92072-3877

$5.65

92072B

BAND,L=100.08

92072-3882

$2.02

92161

DAMPER

92161-0016

$3.04

92171

CLAMP

92171-3714

$9.49

92190

TUBE,9X16X450

92190-3914

$12.13

92191

TUBE,PUMP-HULL

92191-3722

$34.72

92191A

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.89

92192

TUBE,7X12X1180

92192-3704

$22.23

92192A

TUBE,MUFFLER-HULL

92192-3720

$23.85

92192B

TUBE,HEAD-FLUSH

92192-3744

$58.36
