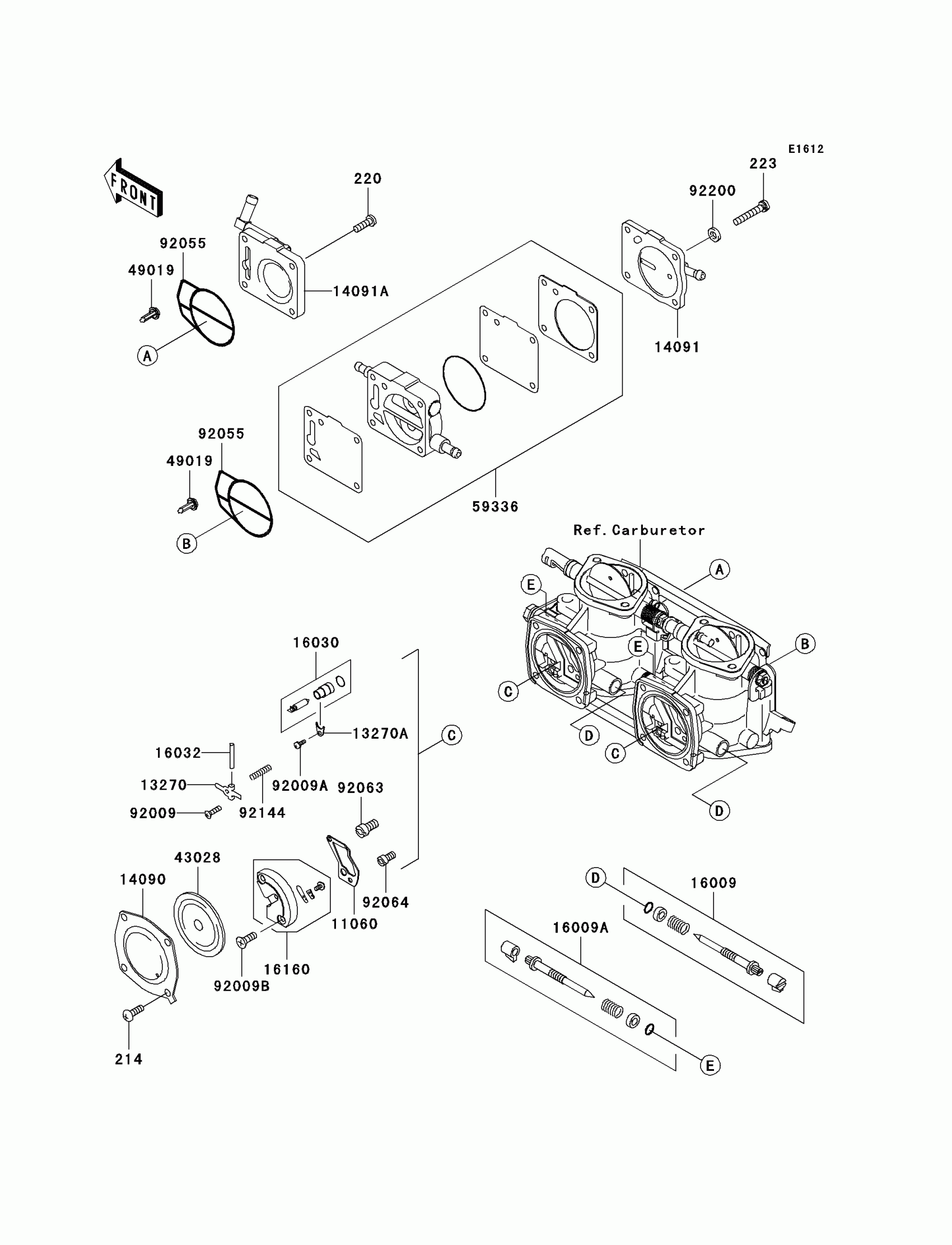

Kawasaki Jet Ski® 800 SX-R Carburetor Parts Diagram

Description

Price

214

SCREW-PAN+-,5X10

214R0510

$4.08

220

SCREW-PAN-CROS

220R0516

$4.59

223

SCREW-PAN-WS-CROS,5X35

223R0535

$5.36

11060

GASKET

11060-3774

$12.37

13270

PLATE

13270-3828

$62.06

13270A

PLATE

13270-3829

$56.18

14090

COVER

14090-3785

$37.33

14091

COVER

14091-3774

Unavailable

14091A

COVER

14091-3775

$36.41

16009

NEEDLE-JET,SLOW

16009-3717

$52.24

16009A

NEEDLE-JET,MAIN

16009-3718

Unavailable

16030

VALVE-FLOAT

16030-3703

$52.70

16032

FLOAT PIN

16032-006

$7.49

16160

BODY

16160-3737

Unavailable

43028

DIAPHRAGM

43028-3709

$26.58

49019

FILTER-FUEL

49019-3713

$7.95

59336

CASE-PUMP,DIAPHRAGM

59336-3712

$172.64

92009

SCREW,3X8

92009-3712

$2.05

92009A

SCREW,3X7

92009-3821

$2.51

92009B

SCREW,4X14

92009-3822

$7.49

92055

RING-O

92055-3745

Unavailable

92063

JET-MAIN,#132.5

92063-3724

$16.61

92064

JET-PILOT,#72.5

92064-3704

$18.66

92144

SPRING

92144-3756

$11.19

92200

WASHER,5.3X10X1.0

92200-3745

$2.51
