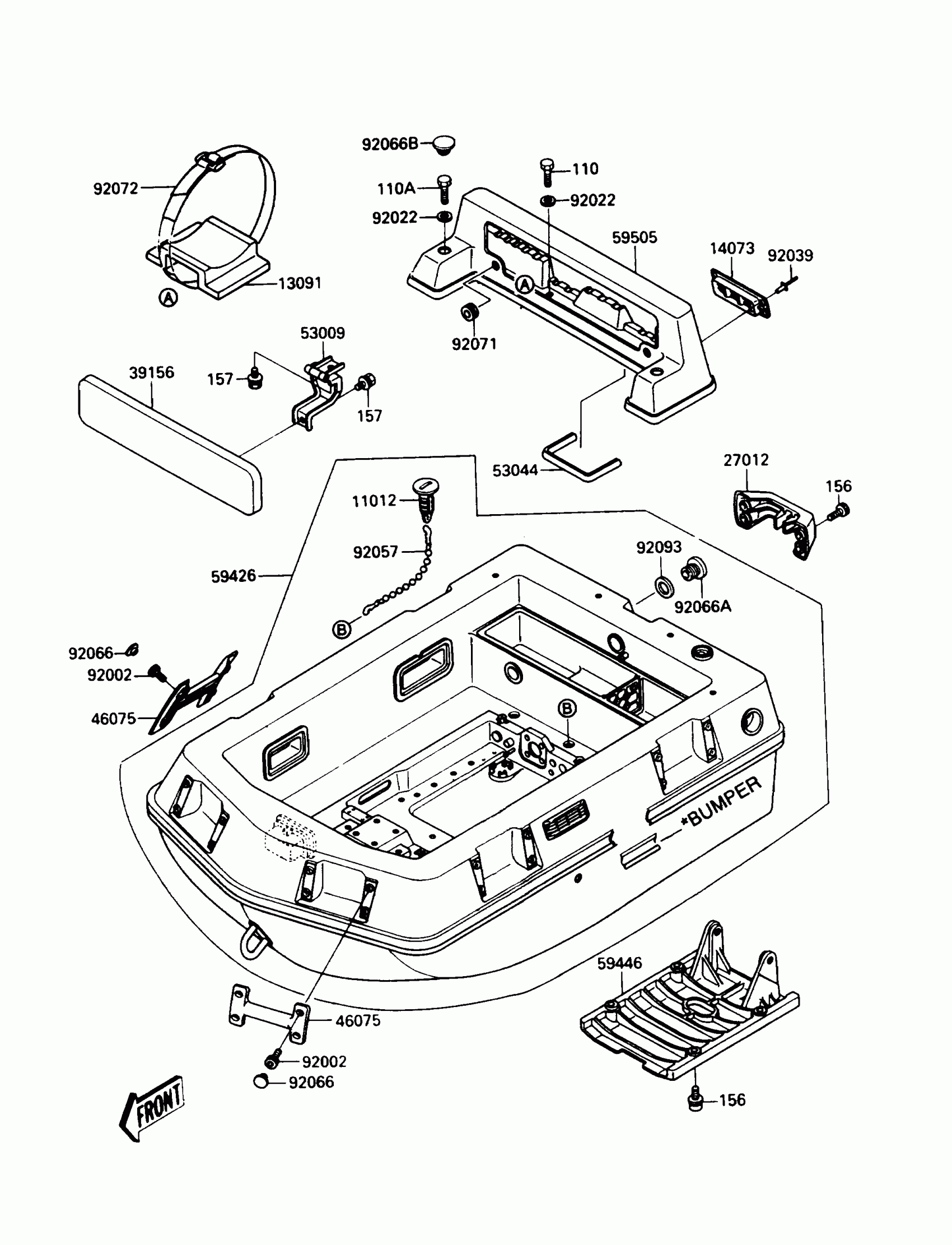

Kawasaki Jet Mate Hull Diagram
#
Description
Price
11012
CAP
11012-3740
Unavailable
13091
HOLDER
13091-3750
Unavailable
14073
DUCT,VENT,P.WHITE
14073-3710-F1
$55.83
27012
HOOK,SKI
27012-3743
$145.08
39156
PAD,BACKREST,RED
39156-3730-MX
$475.92
46075
GRIP,P.WHITE
46075-3715-F1
$231.56
53009
HINGE,BACKREST
53009-3709
$34.55
53044
TRIM
53044-1112
$13.84
59426
HULL-COMP,P.WHITE
59426-3760-BP
$5,296.32
59446
COVER-JET PUMP
59446-3710
Unavailable
59505
BACKREST,P.WHITE
59505-3703-F1
$1,184.48
92002
BOLT,SOCKET,8X20
92002-3771
$8.28
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92039
RIVET
92039-3739
$4.22
92057
CHAIN,COVER,L=250
92057-3701
Unavailable
92066
PLUG,P.WHITE
92066-3715-6F
Unavailable
92066A
PLUG,RR,DRAIN
92066-3725
$19.96
92066B
PLUG,BACKREST,P.WHITE
92066-3726-6F
Unavailable
92071
GROMMET
92071-056
$4.26
92072
BAND
92072-3739
$9.95
92093
SEAL
92093-3720
$3.62
110
BOLT,6X20
110R0620
$5.31
110A
BOLT,6X25
110R0625
$3.20
156
BOLT-WP,6X22
156R0622
$4.09
157
BOLT-WSP,6X12
157R0612
$4.56
