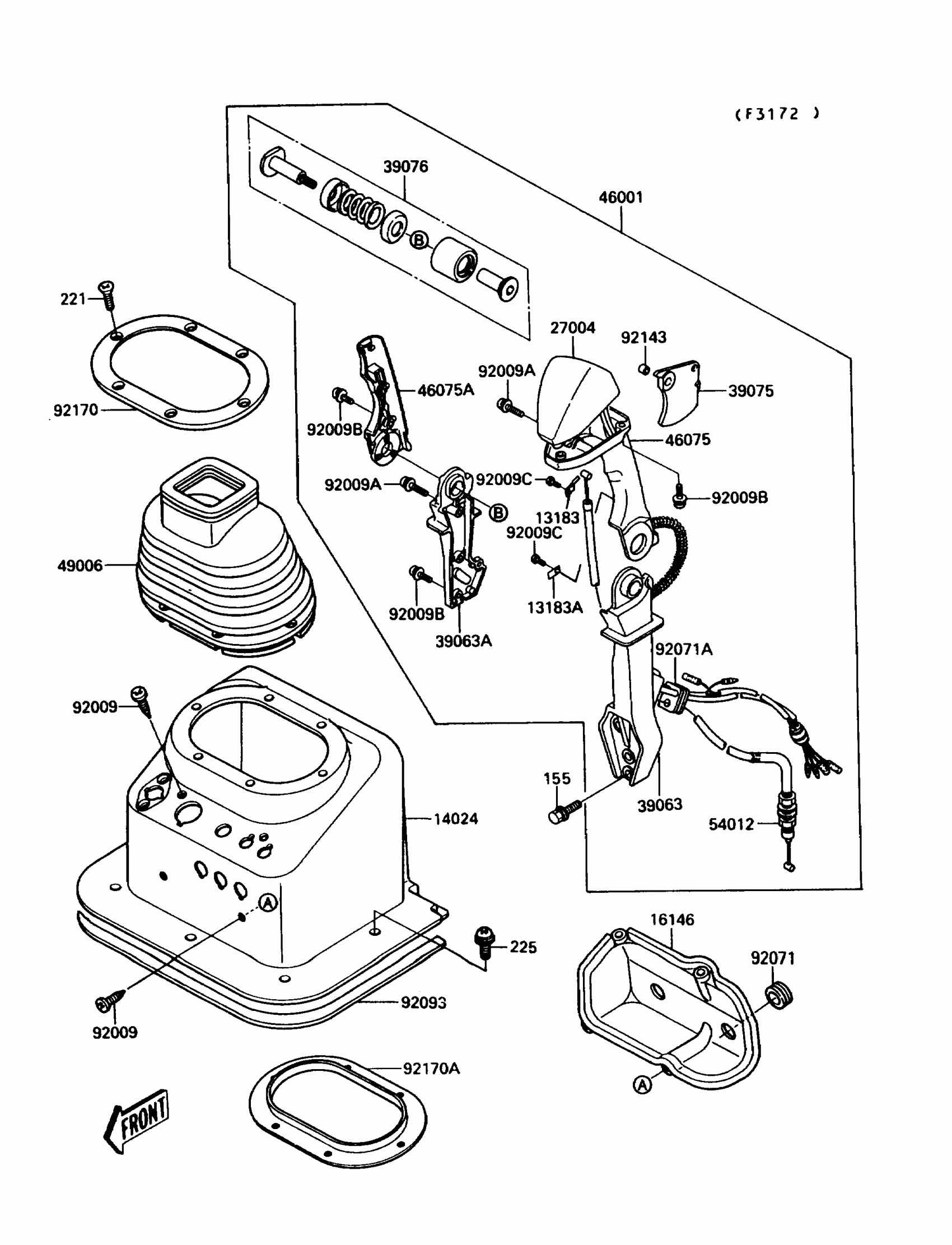

Kawasaki Jet Mate Handlebar Diagram
#
Description
Price
13183
PLATE,SWITCH HARNESS
13183-3763
Unavailable
13183A
PLATE,THROTTLE CABLE
13183-3764
Unavailable
14024
COVER,HANDLE,P.WHITE
14024-3752-F1
Unavailable
16146
COVER-ASSY,FUSE
16146-3705
$29.22
27004
SWITCH-ASSY,START&STOP
27004-3712
Unavailable
39063
HOUSING-CONTROL,LH
39063-3710
$217.54
39063A
HOUSING-CONTROL,RH
39063-3711
$133.38
39075
LEVER-THROTTLE
39075-3707
$18.66
39076
LIMITER
39076-3702
$242.71
46001
HANDLE-ASSY
46001-3702
$1,189.36
46075
GRIP,LH
46075-3716
$112.57
46075A
GRIP,RH
46075-3717
$117.54
49006
BOOT,HANDLE
49006-3712
$71.85
54012
CABLE-THROTTLE
54012-3724
$206.93
92009
SCREW,TAPPING,5X20
92009-3756
$3.65
92009A
SCREW,5X30
92009-3774
$4.58
92009B
SCREW,5X20
92009-3775
$4.16
92009C
SCREW,3X6
92009-3776
$2.99
92071
GROMMET
92071-1027
Unavailable
92071A
GROMMET
92071-3775
$13.79
92093
SEAL
92093-3724
$34.55
92143
COLLAR
92143-3719
$8.71
92170
CLAMP,HANDLE BOOT,UPP
92170-3702
$32.07
92170A
CLAMP,HANDLE BOOT,LWR
92170-3703
$34.13
155
BOLT-WSP-SMALL,8X35
155R0835
$8.19
221
SCREW-CSK-CROS,4X16
221R0416
$1.88
225
SCREW-PAN-WSP-CROS,6X20
225R0620
$3.13
