Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11009A

GASKET

92065-504

$15.31

11012

CAP,FUEL TAP

11012-3728

Unavailable

11046

BRACKET,ELECTRIC

11046-3756

Unavailable

13091

HOLDER,TUBE

13091-3745

Unavailable

23062

BRACKET-COMP,OIL TANK

23062-3701

$202.43

49057

VALVE-RELIEF

49057-3001

$64.85

51004A

TANK-FUEL

51004-3713

Unavailable

51023

TAP-ASSY,FUEL

51023-3707

Unavailable

51023B

TAP-ASSY,FUEL

51023-3711

Unavailable

51049

CAP-TANK,FUEL

51049-3705

Unavailable

51049B

CAP-TANK,OIL

51049-3716

Unavailable

51049C

CAP-TANK,FUEL GAUGE

51049-3717

$133.38

52001

TANK-OIL

52001-3710

Unavailable

59231

FILLER

59231-3711

$171.33

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,6X20

92009-3763

$3.54

92015

NUT,6MM

92015-3763

Unavailable

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-3009

$3.70

92037A

CLAMP

92037-3726

$3.98

92055

RING-O

92055-3722

$3.15

92055A

RING-O

92055-3723

$3.61

92055B

RING-O

92055-3724

$4.58

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92059

TUBE,5.8X12.2X55

92059-3026

Unavailable

92059A

TUBE,5.8X10.8X360

92059-3743

Unavailable

92059C

TUBE,6.35X16X510

92059-3840

$12.75

92059D

TUBE,6.35X16X1340

92059-3841

$28.84

92059E

TUBE,15.9X25.8X110

92059-3842

Unavailable

92059F

TUBE,38.1X51X125

92059-3844

Unavailable

92072

BAND

92072-3726

$37.28

92075

DAMPER RUBBER

92075-076

$4.78

92077

KNOB

92077-3709

Unavailable

92093

SEAL

92093-3727

$5.74

92143

COLLAR,7.5X10.5X9

92143-3714

Unavailable

92160

DAMPER

92160-1004

Unavailable

92160A

DAMPER

92160-3719

$25.28

92160B

DAMPER

92160-3720

$13.43

92160C

DAMPER

92160-3722

Unavailable

92170

CLAMP,COOLING HOSE

92037-1989

$16.83

92170A

CLAMP

92170-3720

$13.67

92190

TUBE

92190-3705

$4.99

92190A

TUBE,6.35X16X170

92190-3721

$9.49

150

BOLT-WS,6X25

150R0625

$4.34

154

BOLT-WP-SMALL,8X18

154R0818

$5.03

157

BOLT-WSP,6X14

157R0614

$3.23

220

SCREW-PAN-CROS,6X12

220R0612

$2.34

225

SCREW-PAN-WSP-CROS,5X16

225R0516

$4.99

670

O RING,8MM

670B1508

$1.29

671

O RING,65MM

671B2565

$8.86

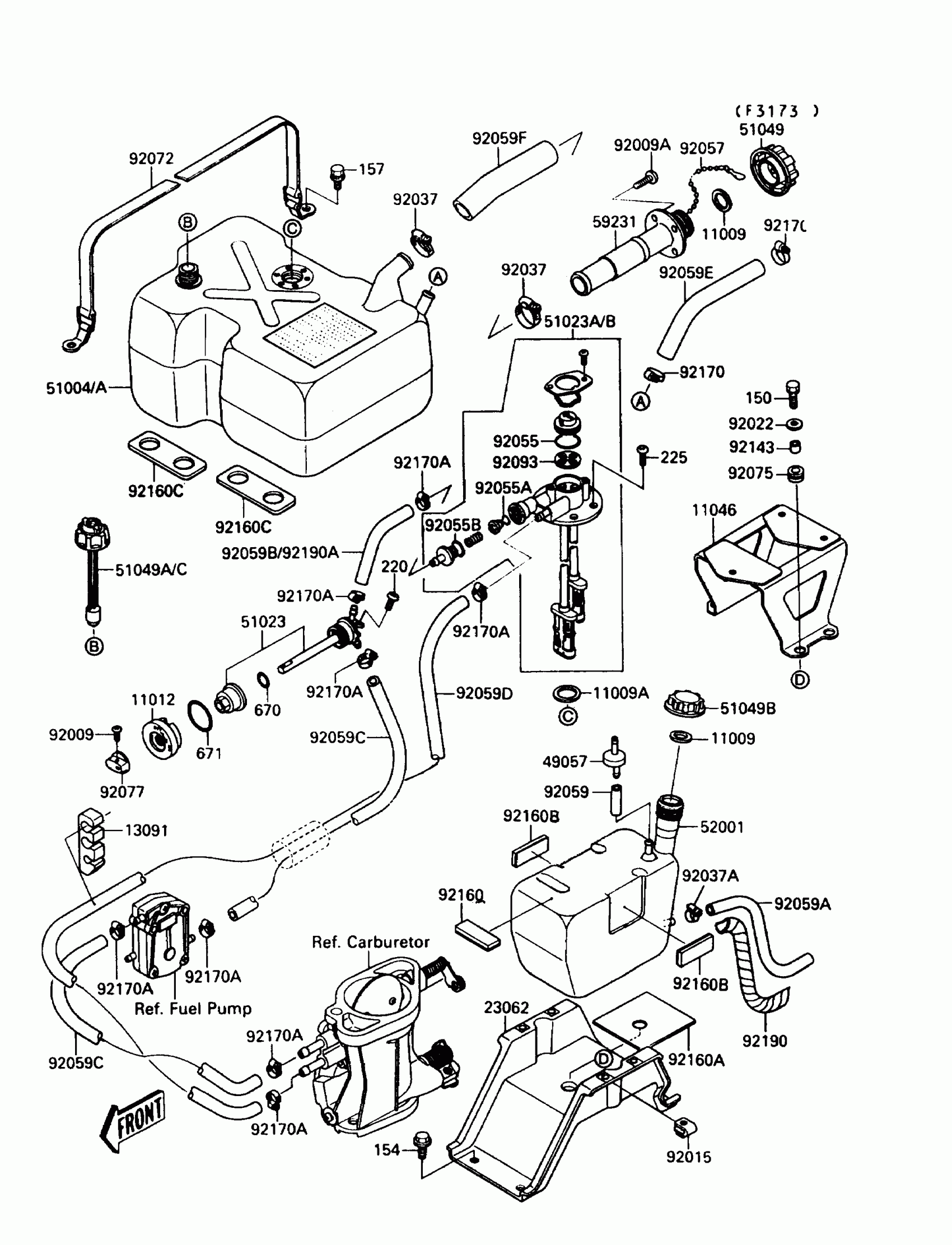

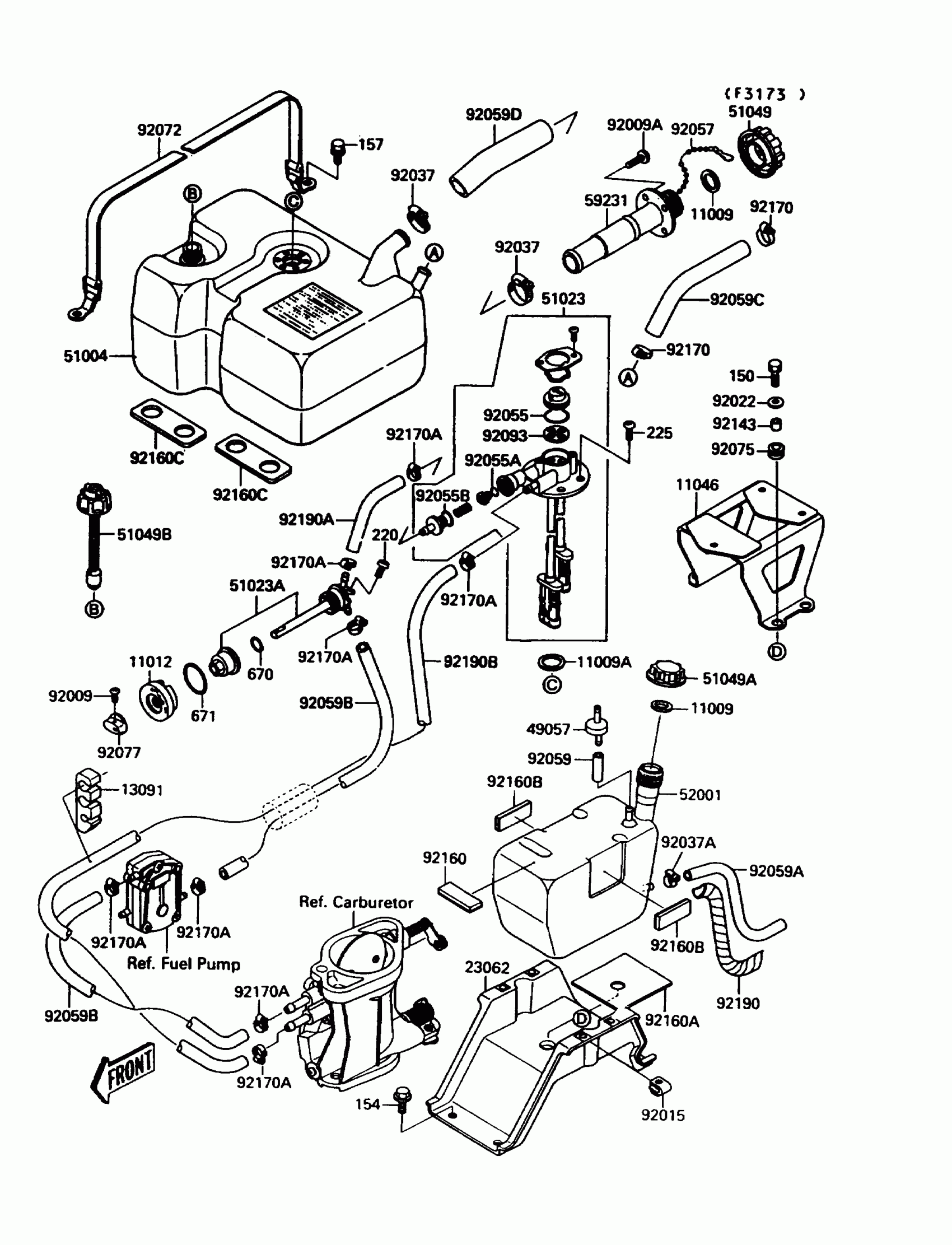

Kawasaki Jet Mate Fuel Tank Diagram

GASKET,TANK CAP

GASKET

CAP,FUEL TAP

BRACKET,ELECTRIC

HOLDER,TUBE

BRACKET-COMP,OIL TANK

VALVE-RELIEF

TANK-FUEL

TAP-ASSY,FUEL

TAP-ASSY,FUEL

CAP-TANK,FUEL

CAP-TANK,OIL

CAP-TANK,FUEL GAUGE

TANK-OIL

FILLER

SCREW,4X8

SCREW,6X20

NUT,6MM

WASHER,6.5X20X1.5

CLAMP

CLAMP

RING-O

RING-O

RING-O

CHAIN,COVER,L=100

TUBE,5.8X12.2X55

TUBE,5.8X10.8X360

TUBE,6.35X16X510

TUBE,6.35X16X1340

TUBE,15.9X25.8X110

TUBE,38.1X51X125

BAND

DAMPER RUBBER

KNOB

SEAL

COLLAR,7.5X10.5X9

DAMPER

DAMPER

DAMPER

DAMPER

CLAMP,COOLING HOSE

CLAMP

TUBE

TUBE,6.35X16X170

BOLT-WS,6X25

BOLT-WP-SMALL,8X18

BOLT-WSP,6X14

SCREW-PAN-CROS,6X12

SCREW-PAN-WSP-CROS,5X16

O RING,8MM

O RING,65MM
