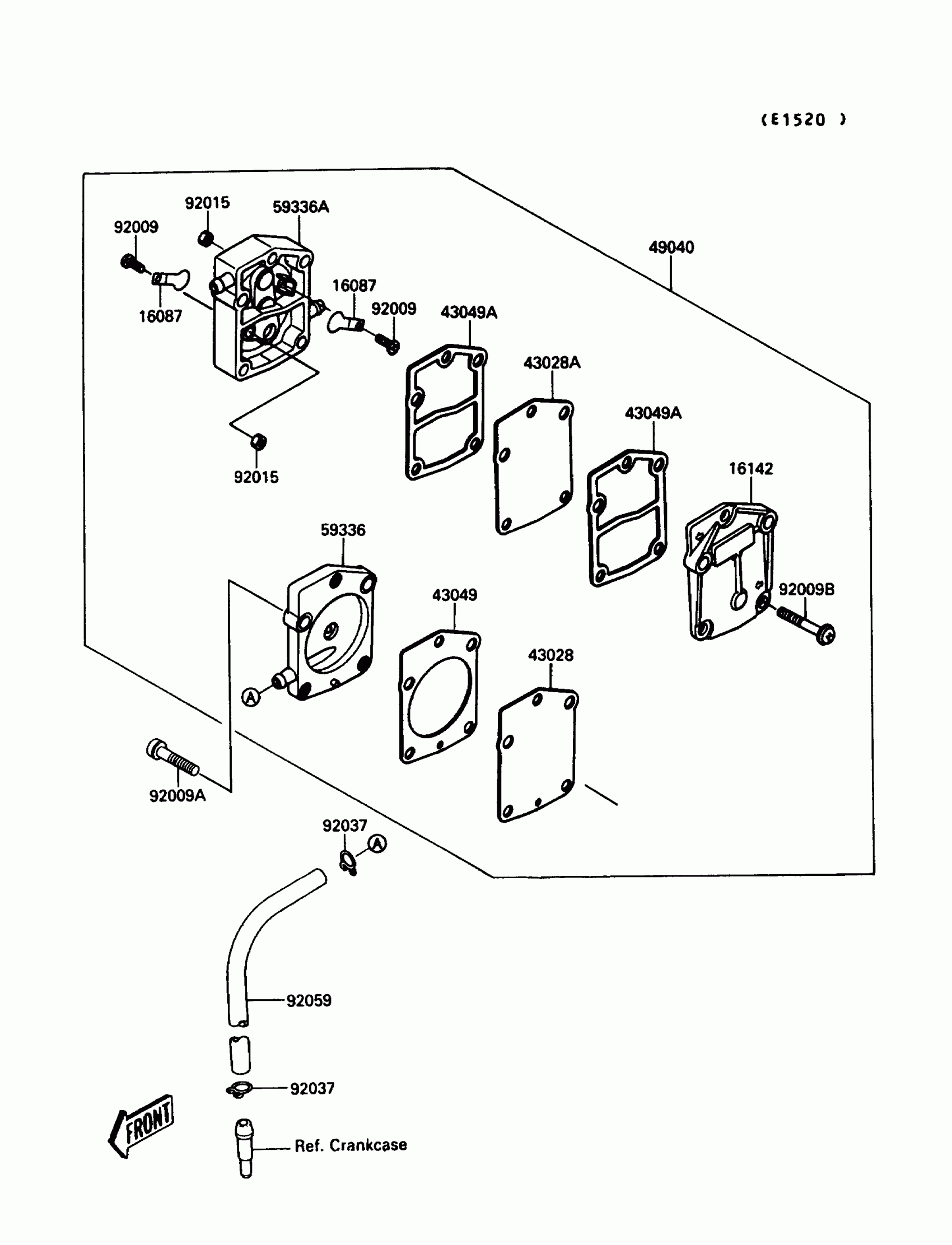

Kawasaki Jet Mate Fuel Pump Diagram

Description

Price

16087

VALVE-CHECK,FUEL PUMP

16087-3701

Unavailable

16142

COVER-PUMP,FUEL

16142-3702

$70.89

43028

DIAPHRAGM,PULSE

43028-3702

Unavailable

43028A

DIAPHRAGM,FUEL

43028-3703

Unavailable

43049

PACKING,PULSE CASE

43049-3705

Unavailable

43049A

PACKING,FUEL COVER

43049-3706

Unavailable

49040

PUMP-FUEL

49040-3706

$120.86

59336

CASE-PUMP,PULSE

59336-3704

$96.93

59336A

CASE-PUMP,BODY

59336-3707

Unavailable

92009

SCREW,3X6

92009-3707

$2.22

92009A

SCREW,6X40

92009-3735

$5.11

92009B

SCREW,5X28

92009-3767

$5.75

92015

NUT,3MM

92015-3731

Unavailable

92037

CLAMP,11MM

92037-3723

$3.49

92059

TUBE,PULSE,5.8X10.8X560

92059-3800

$35.73
