Description

Price

11046

BRACKET,ENGINE HOOD,LH

11046-3766

Unavailable

11046A

BRACKET,ENGINE HOOD,RH

11046-3767

Unavailable

14024

COVER,ENGINE HOOD,P.WHITE

14024-3766-F1

Unavailable

27012

HOOK,ENGINE HOOD COVER

27012-3745

$64.19

27012A

HOOK,LOCK

27012-3748

$10.39

27016

LOCK-ASSY

27016-3712

$65.40

32085

STOPPER,ENGINE HOOD

32085-3715

$14.42

39145

TRIM-SEAL

39145-3711

Unavailable

39145A

TRIM-SEAL

39145-3712

Unavailable

39145B

TRIM-SEAL

39145-3717

Unavailable

46003

GRIP

46003-2054

Unavailable

46075

GRIP,ENGINE HOOD COVER,P.WHITE

46075-3718-F1

$78.95

59246

HOOD-ENGINE,P.WHITE

59246-3715-BP

$1,631.86

92009

SCREW,TAPPING,4X14

92009-3755

$2.55

92009A

SCREW,TAPPING,5X20

92009-3756

$3.65

92022

WASHER,5X16X1.5

92022-3041

$4.18

92022A

WASHER,8.5X19X1.2

92022-3730

$4.31

92039

RIVET,4.8MM

92039-3719

$6.22

92150

BOLT,6X14

92150-3732

$12.35

153

BOLT-WS-SMALL,8X18

153R0818

$3.80

156

BOLT-WP,5X16

156R0516

$2.97

157

BOLT-WSP,6X16

157R0616

$4.66

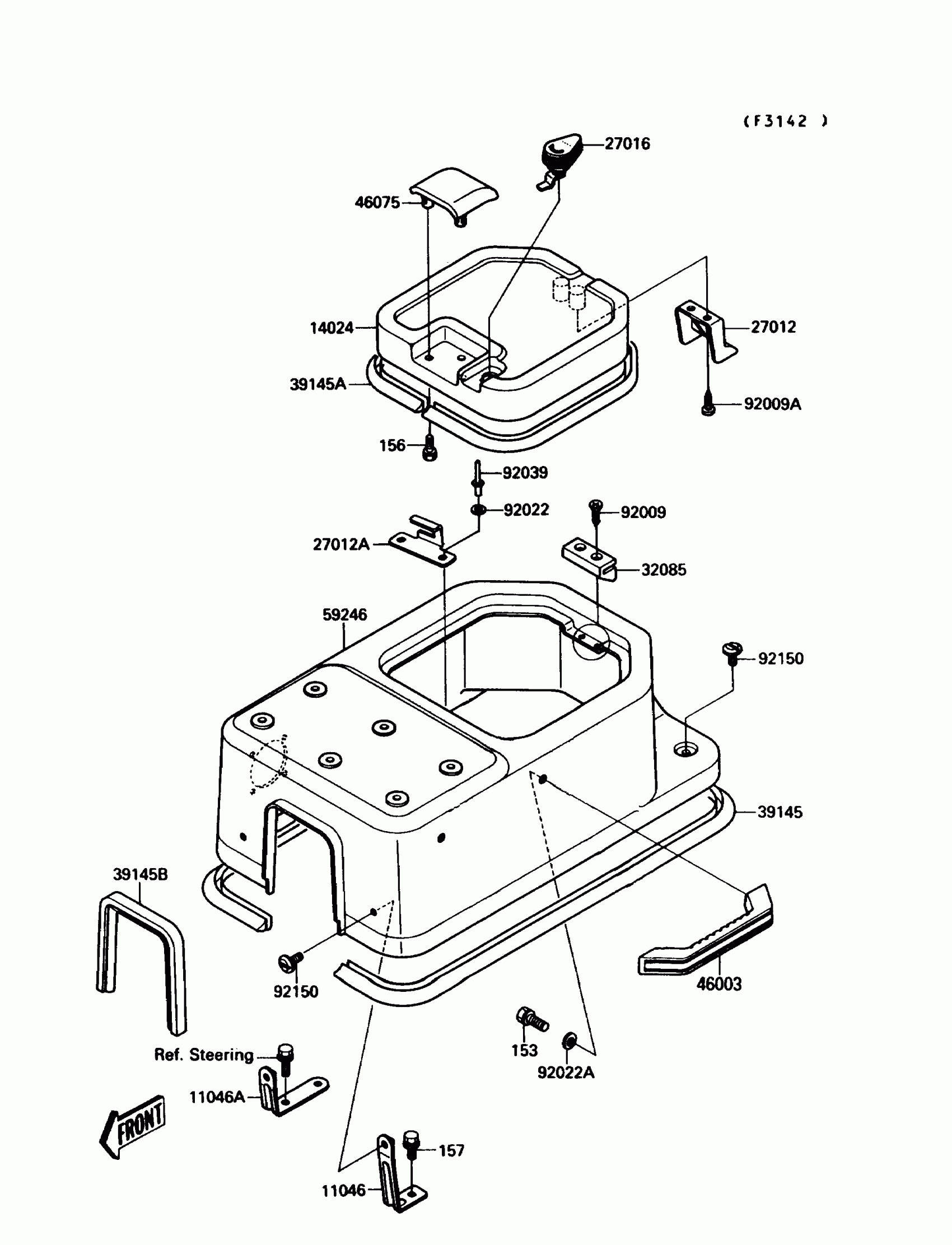

Kawasaki Jet Mate Engine Hood Diagram

BRACKET,ENGINE HOOD,LH

BRACKET,ENGINE HOOD,RH

COVER,ENGINE HOOD,P.WHITE

HOOK,ENGINE HOOD COVER

HOOK,LOCK

LOCK-ASSY

STOPPER,ENGINE HOOD

TRIM-SEAL

TRIM-SEAL

TRIM-SEAL

GRIP

GRIP,ENGINE HOOD COVER,P.WHITE

HOOD-ENGINE,P.WHITE

SCREW,TAPPING,4X14

SCREW,TAPPING,5X20

WASHER,5X16X1.5

WASHER,8.5X19X1.2

RIVET,4.8MM

BOLT,6X14

BOLT-WS-SMALL,8X18

BOLT-WP,5X16

BOLT-WSP,6X16
