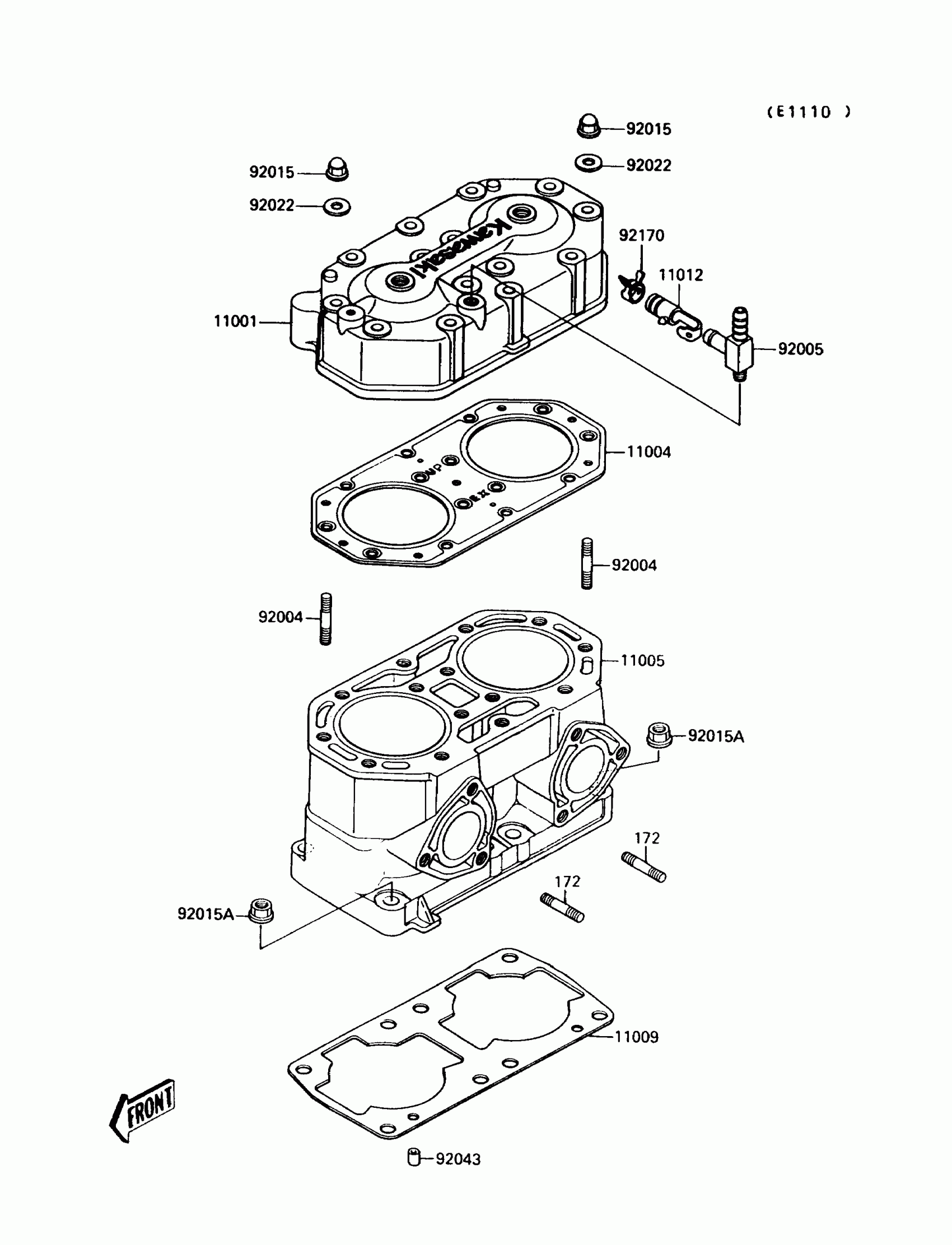

Kawasaki Jet Mate Cylinder Head/Cylinder Diagram

Description

Price

11001

HEAD-CYLINDER

11001-3712

Unavailable

11004

GASKET-HEAD

11004-3704

Unavailable

11005

CYLINDER-ENGINE

11005-3708

Unavailable

11009

GASKET,CYLINDER BASE

11009-3719

Unavailable

11012

CAP

11012-3744

Unavailable

92004

STUD,8X43

92004-3715

$10.46

92005

FITTING

92005-3704

Unavailable

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,10MM

92015-3708

$5.52

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92170

CLAMP

92170-3714

$1.48

172

BOLT-STUD,8X30

172R0830

$8.44
