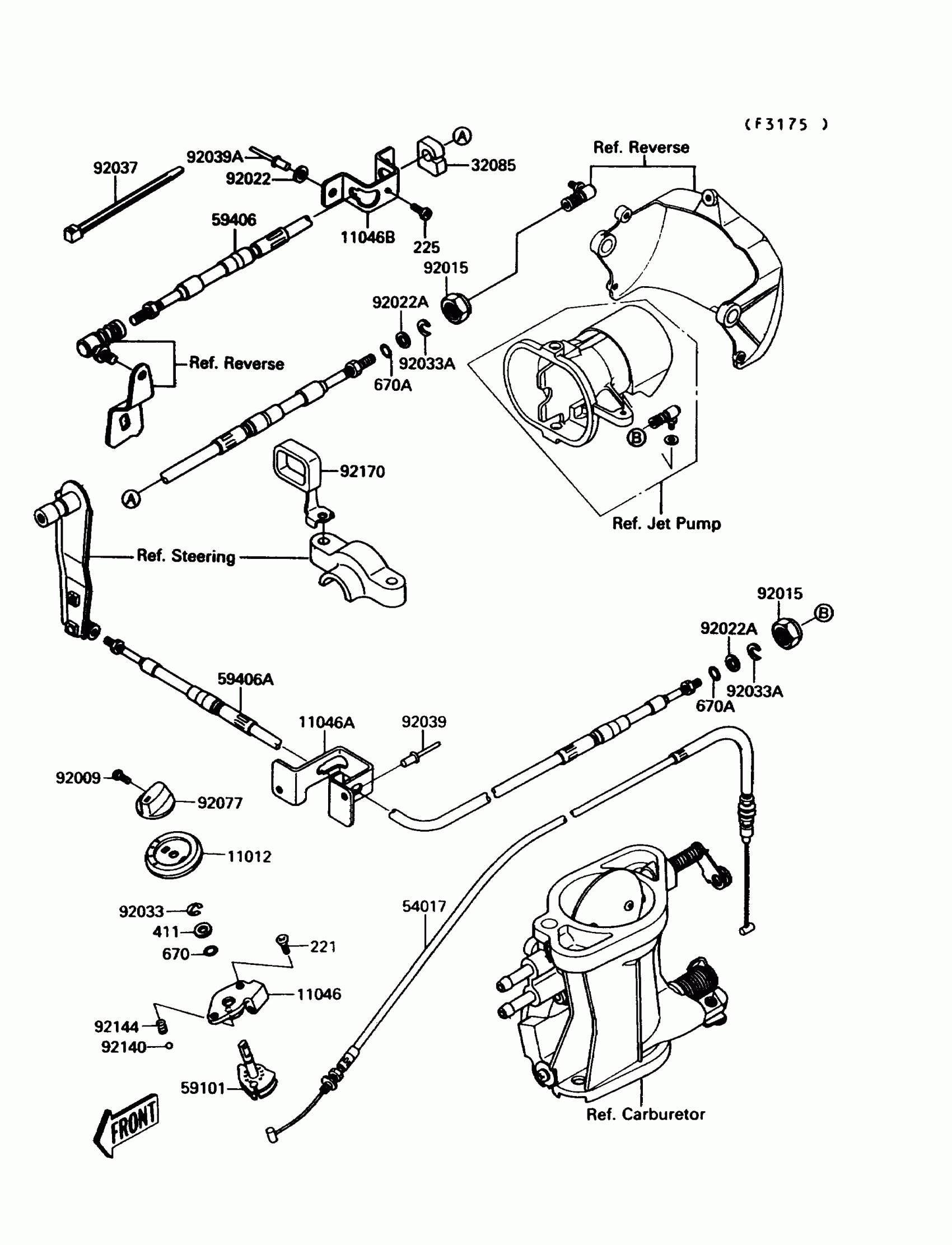

Kawasaki Jet Mate Cable Diagram
#
Description
Price
11012
CAP,STARTER CABLE
11012-3731
Unavailable
11046
BRACKET,STARTER CABLE
11046-3712
Unavailable
11046A
BRACKET,STEERING CABLE
11046-3730
Unavailable
11046B
BRACKET,REVERSE CABLE
11046-3832
Unavailable
32085
DETENT
59346-504
$8.60
54017
CABLE-STARTER
54017-3716
$99.04
59101
REEL,STARTER CABLE
59101-3704
Unavailable
59406
CABLE-STRG,REVERSE
59406-3715
Unavailable
59406A
CABLE-STRG
59406-3717
$239.51
92009
SCREW,4X8
92009-3729
$6.61
92015
NUT,20MM
92015-526
$29.72
92022
WASHER,5X16X1.5
92022-3041
$4.18
92022A
WASHER
92022-535
$7.34
92033
RING-SNAP,7MM
92033-3704
$2.94
92033A
RING-SNAP
92036-501
Unavailable
92037
CLAMP
92037-1173
$3.49
92039
RIVET,4.8MM
92039-3719
$6.22
92039A
RIVET
92039-3737
$6.42
92077
KNOB
92077-3709
Unavailable
92140
BALL,3MM
92140-3702
$4.95
92144
SPRING
92144-3712
$2.53
92170
CLAMP,CABLE
92170-3719
$21.16
221
SCREW-CSK-CROS,5X14
221R0514
$2.97
225
SCREW-PAN-WSP-CROS,5X12
225R0512
$2.95
411
WASHER-PLAIN,8MM
411S0800
$3.09
670
O RING,8MM
670B1508
$1.29
670A
O RING,11MM
670B2011
$1.28
