Partiron

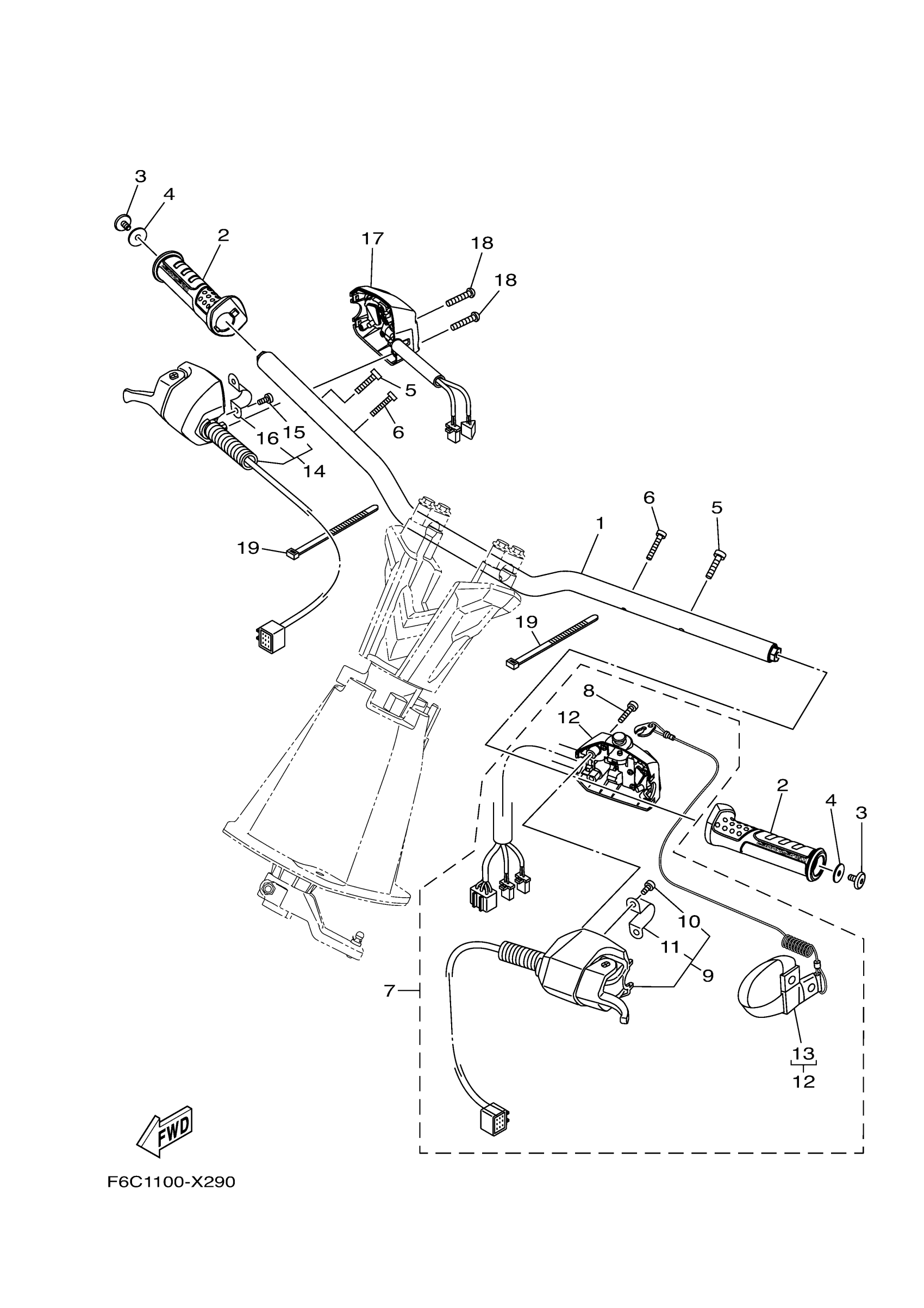

Yamaha JB1050Y (JET BLASTER) F6C2 2023 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F6C-U1552-10-00

$169.10

2

GRIP,HANDLE

F6C-U155C-10-00

$26.46

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.79

4

WASHER, PLATE

90201-068G0-00

$0.74

5

BOLT

F2S-U1516-00-00

$2.93

6

BOLT

91380-04030-00

$0.85

7

SWITCH BOX ASSY

F4P-68310-41-00

$822.04

8

BOLT, THROTTLE

6CS-6725F-00-00

$4.55

9

SHIFT LEVER ASSY

F4P-26411-12-00

$507.34

10

. BOLT, THROTTLE

F4P-6725F-00-00

$6.62

11

. SUPPORT

F4P-61368-00-00

$5.31

12

. SWITCH ASSY

F4P-8259E-21-00

$358.81

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

THROTTLE LEVER COMP

F4P-14305-12-00

$281.52

15

. BOLT, THROTTLE

F4P-6725F-00-00

$6.62

16

. SUPPORT

F4P-61368-00-00

$5.31

17

SWITCH ASSY

F4P-81860-12-00

$186.71

18

BOLT, THROTTLE

6CS-6725F-00-00

$4.55

19

CLAMP(JN6)

90464-40825-00

Unavailable
