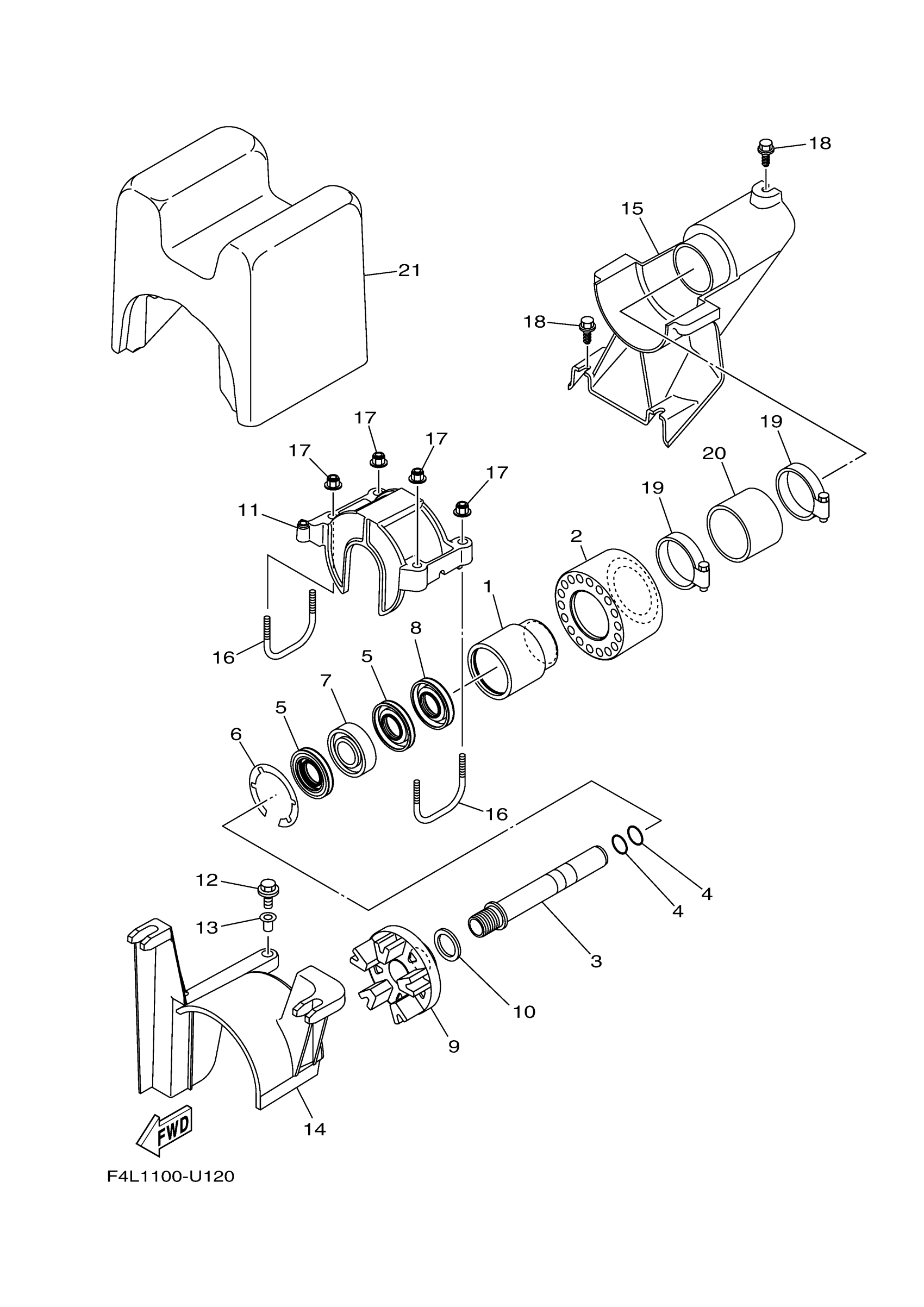

Yamaha JB1050Y (JET BLASTER) F6C2 2023 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

6GA-G5332-00-00

Unavailable

2

DAMPER

6GA-G5235-00-00

$17.94

3

SHAFT, COUPLER

6GY-R1323-00-00

$187.86

4

O-RING

93210-19001-00

$3.49

5

OIL SEAL(62T)

93101-25M55-00

$24.36

6

CIRCLIP(26H)

99009-52500-00

$10.02

7

BEARING

93306-205XG-00

$8.61

8

OIL SEAL

93101-24001-00

$30.69

9

FLANGE, COUPLING 1

6EY-G5593-00-00

$26.74

10

WASHER, PLATE

90201-27008-00

Unavailable

11

CAP

F3Y-U2155-01-00

$27.98

12

BOLT, WITH WASHER

90119-06892-00

$3.79

13

COLLAR

90387-06289-00

$2.30

14

COVER

6GA-R1381-00-00

$4.46

15

JOINT, PIPE

F3Y-U883E-01-00

$27.13

16

NUT,INSERT

F3Y-U3746-01-00

Unavailable

17

NUT, LOCK

F2N-U142L-00-00

$1.00

18

BOLT

90109-06832-00

$2.44

19

BAND, HOSE 55

90601-155U4-00

$5.87

20

PIPE 1

F3Y-U883B-00-00

$4.77

21

FLOTATION, STERN RH

F3Y-U892D-01-00

Unavailable
