- JB1050Y (JET BLASTER) F6C2 2023
GUNWALE & MAT

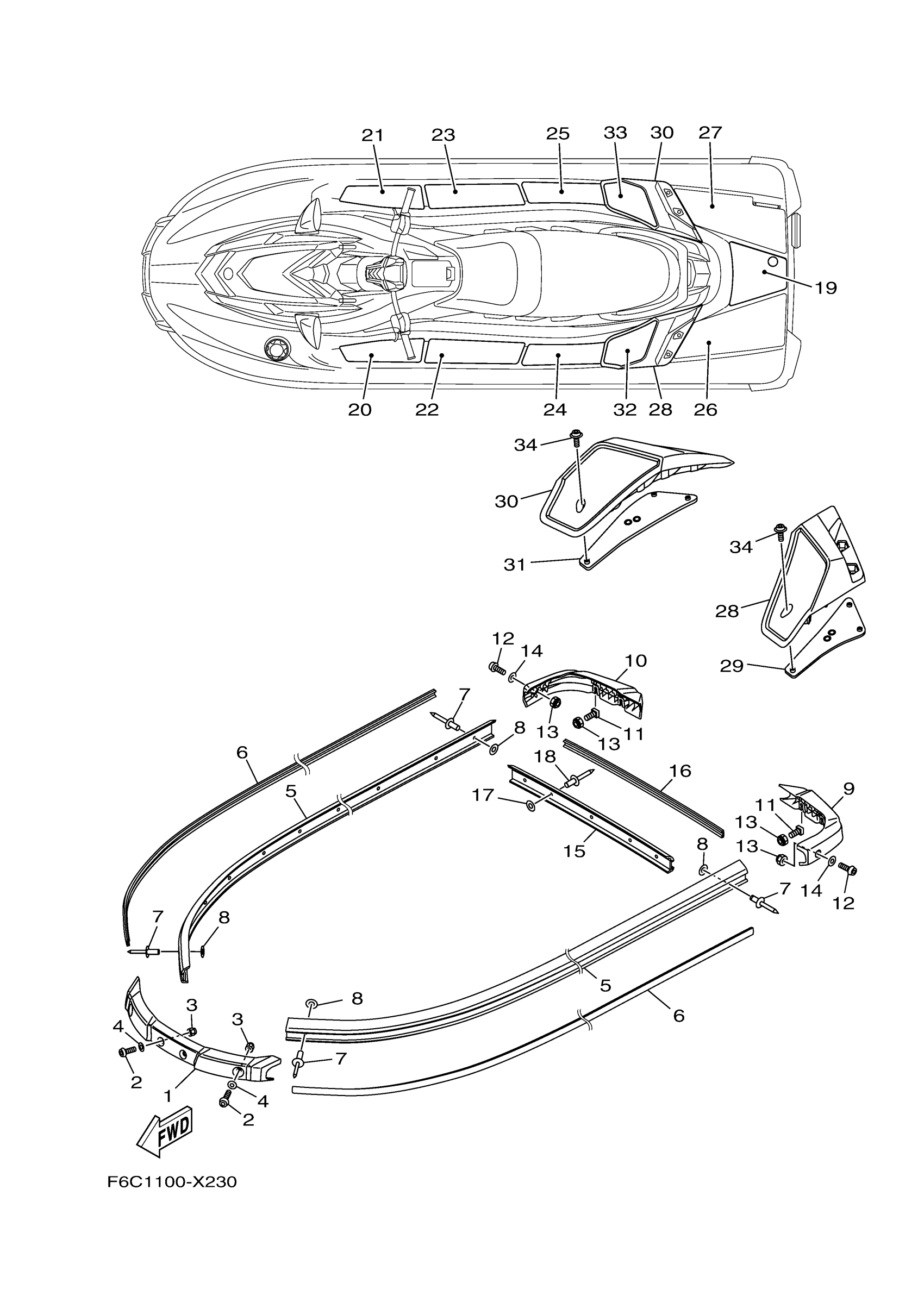

Yamaha JB1050Y (JET BLASTER) F6C2 2023 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW
F3Y-U2511-00-00
Unavailable
2
BOLT,HEX. SOCKET BUTTON
90111-06803-00
Unavailable
3
NUT, LOCK
F2N-U142L-00-00
Unavailable
4
WASHER
F3Y-U1174-00-00
Unavailable
5
GUNWALE, SIDE
F3Y-U2512-03-00
Unavailable
6
INNER,GUNWALE
F3Y-U2519-71-00
Unavailable
7
RIVET, BLIND
90267-489U8-00
Unavailable
8
WASHER
9299R-05200-00
Unavailable
9
GUNWALE, STERN 1
F3Y-U251D-00-00
Unavailable
10
GUNWALE, STERN 2
F3Y-U251E-00-00
Unavailable
11
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
12
BOLT,HEX. SOCKET BUTTON
90111-06803-00
Unavailable
13
NUT, LOCK
F2N-U142L-00-00
Unavailable
14
WASHER
F3Y-U1174-00-00
Unavailable
15
COVER, GUNWALE 1
F3Y-U252C-00-00
Unavailable
16
COVER, GUNWALE 2
F3Y-U252D-00-00
Unavailable
17
WASHER
9299R-05200-00
Unavailable
18
RIVET, BLIND
90267-489U8-00
Unavailable
19
MAT, UPPER
F6C-U3581-10-00
Unavailable
20
MAT, STEP 1
F6C-U351H-10-00
Unavailable
21
MAT, STEP 2
F6C-U351J-10-00
Unavailable
22
MAT, STEP 3
F6C-U351K-10-00
Unavailable
23
MAT, STEP 4
F6C-U351M-10-00
Unavailable
24
MAT, STEP 5
F6C-U351N-10-00
Unavailable
25
MAT, STEP 6
F6C-U351P-10-00
Unavailable
26
MAT, STEP 7
F6C-U351R-10-00
Unavailable
27
MAT, STEP 8
F6C-U351S-10-00
Unavailable
28
DASH BOARD 2 COMP.
F6C-U4907-03-00
Unavailable
29
BRACKET, FOOT REST 1
F6C-U4985-00-00
Unavailable
30
DASH BOARD 2 COMP.
F6C-U4907-13-00
Unavailable
31
BRACKET, FOOT REST 2
F6C-U4986-00-00
Unavailable
32
MAT STEP 9
F6C-U351T-10-00
Unavailable
33
MAT STEP 10
F6C-U351U-10-00
Unavailable
34
SCREW
F3X-U7823-02-00
Unavailable
