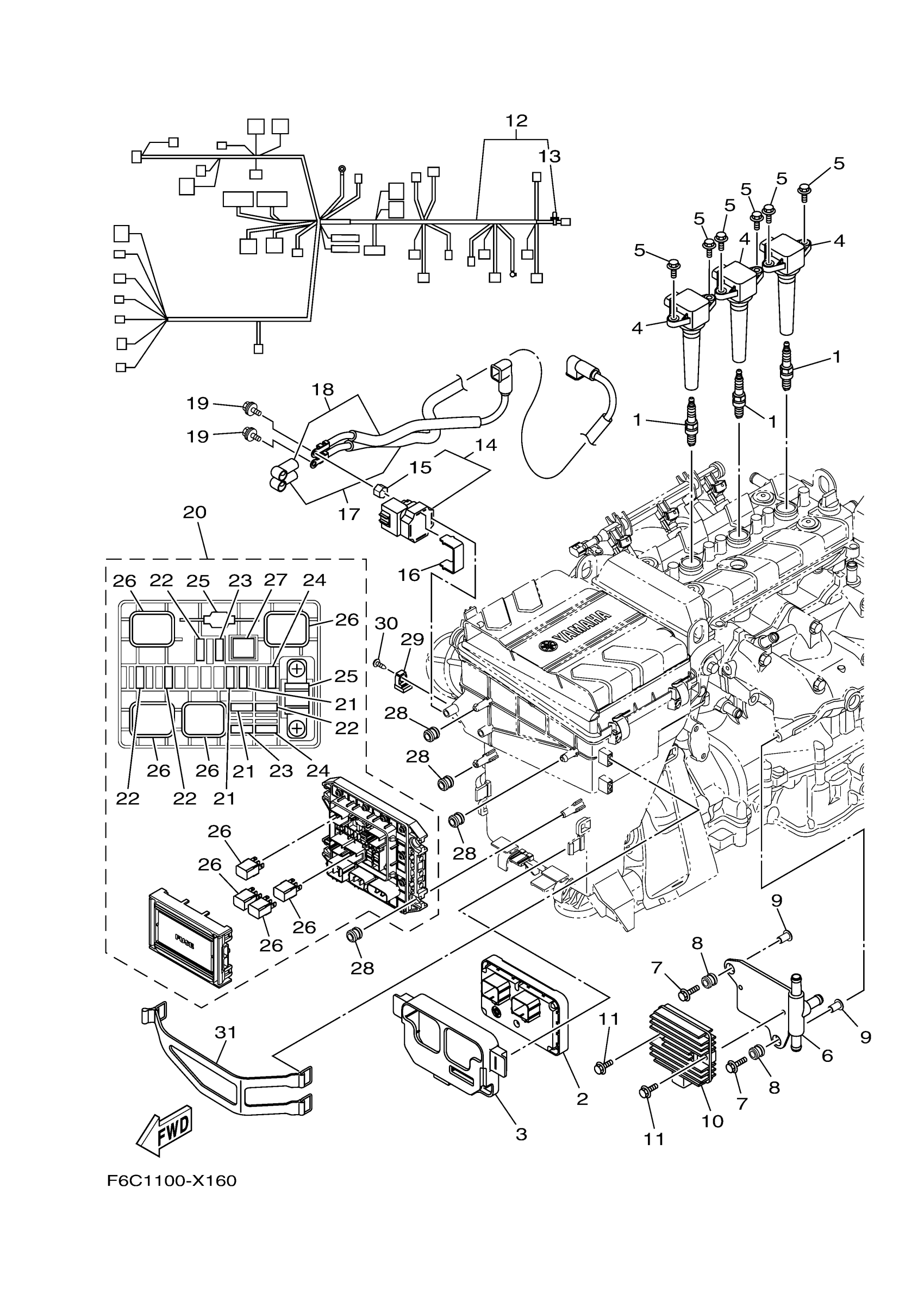

Yamaha JB1050Y (JET BLASTER) F6C2 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$7.28

2

ENGINE CONTROL UNIT ASSY

6GY-8591A-10-00

Unavailable

3

GROMMET, ECU

6EY-8591S-00-00

$18.52

4

IGNITION COIL ASSY

6EX-82310-02-00

$154.71

5

BOLT, FLANGE(JL8)

95880-06016-00

$3.41

6

PLATE, RECTIFIER FITTING

6EY-81975-00-00

$57.56

7

BOLT, WITH WASHER

90119-06311-00

$1.58

8

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

9

. COLLAR

90387-06119-00

$4.37

10

RECTIFIER & REGULA

6D3-81960-01-00

$145.47

11

BOLT, FLANGE

95814-06020-00

$6.22

12

WIRE HARNESS ASSY 1

6GY-8259L-01-00

$871.20

13

CLAMP

90464-20005-00

$2.11

14

STARTER RELAY ASSY

6EY-81940-09-00

$71.09

15

. GROMMET

6EY-82355-00-00

$2.73

16

STAY, RELAY

6EY-81953-00-00

$4.09

17

WIRE, PLUS LEAD

6GA-82115-01-00

$118.17

18

WIRE, LEAD

6EY-82117-00-00

$33.34

19

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

$1.36

20

FUSE BOX ASSY

6EX-82170-02-00

$195.31

21

. FUSE (3A)

67F-82151-30-00

$4.69

22

. FUSE (10A)

67F-82151-40-00

$6.07

23

FUSE

5JJ-82151-20-00

Unavailable

24

FUSE

5JJ-82151-60-00

Unavailable

25

. FUSE (50A)

6EX-82151-00-00

$3.64

26

. RELAY ASSY

6EX-8195A-00-00

$15.55

27

. PULLER, FUSE

6EX-2812A-00-00

$1.36

28

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

29

BRACKET

6AA-85542-00-00

$2.27

30

SCREW, ROUND TAPPING

90160-05003-00

$6.99

31

BAND

6EY-82593-01-00

$23.99
