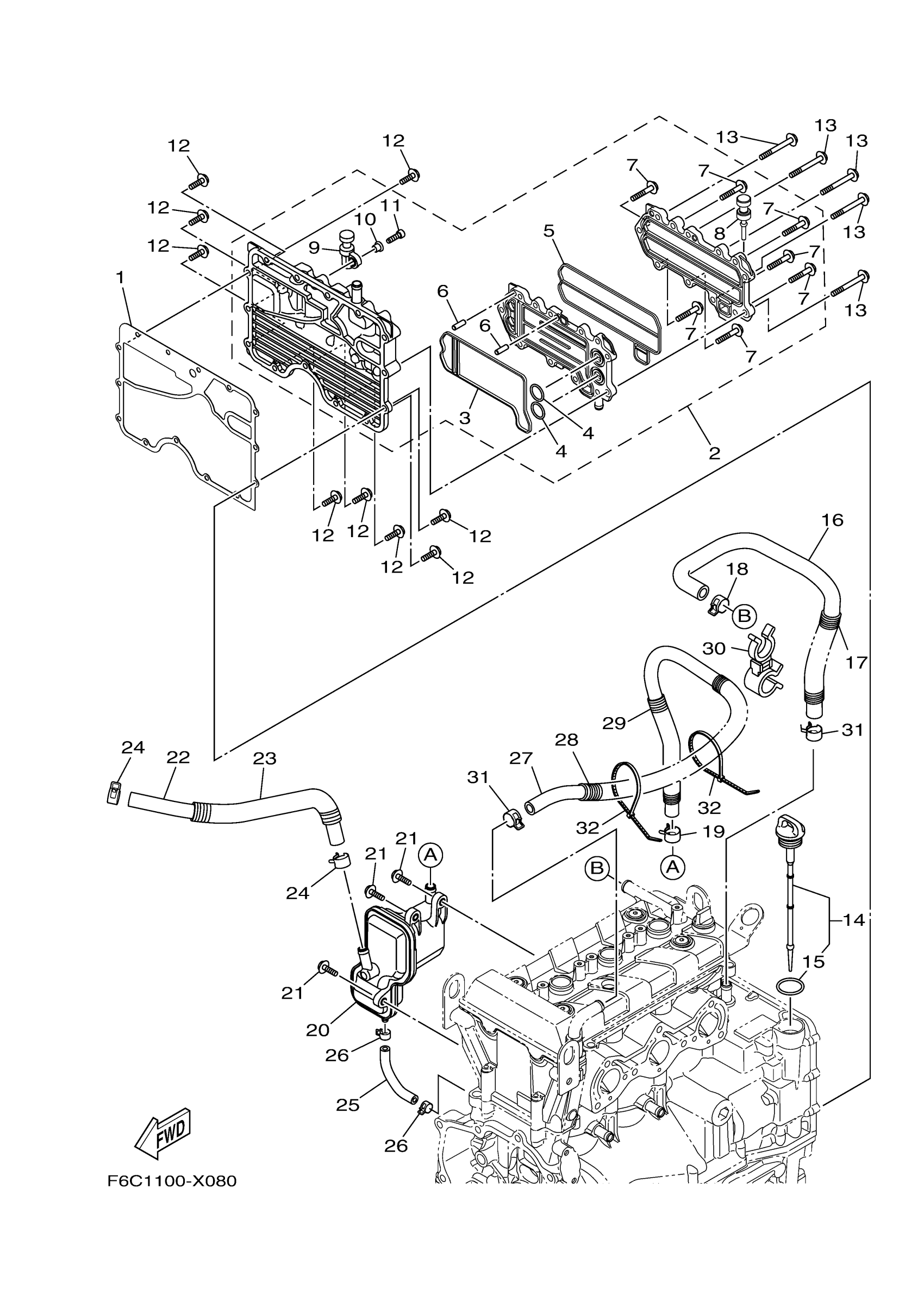

Yamaha JB1050X (JET BLASTER) F6C1 2022 OIL COOLER Diagram
#
1
. GASKET
6EY-15453-00-00
Unavailable
2
OIL COOLER ASSY
6EY-13470-02-00
Unavailable
3
GASKET, MANIFOLD
6EY-13556-01-00
Unavailable
4
O-RING (5Y1)
93210-19522-00
$7.49
5
GASKET
6EY-13557-01-00
Unavailable
6
. PIN, DOWEL
93606-19M23-00
Unavailable
7
BOLT, FLANGE
95814-06035-00
Unavailable
8
GROMMET(6R7)
90480-06M46-00
$12.49
9
. GROMMET
6S5-81364-11-00
Unavailable
10
COLLAR
90387-06M05-00
Unavailable
11
. BOLT
91380-06020-00
Unavailable
12
BOLT, FLANGE
95814-06020-00
$8.49
13
BOLT, FLANGE
95814-06055-00
$4.19
14
PLUG, OIL LEVEL
6EY-15362-10-00
Unavailable
15
O-RING (437)
93210-24235-00
$7.49
16
PIPE, BREATHER 1
6GY-11166-00-00
Unavailable
17
TUBE (L150)
90447-19011-00
Unavailable
18
CLIP
90467-200A3-00
Unavailable
19
CLIP
90467-170A4-00
Unavailable
20
SEPERATOR, OIL
6EY-11164-00-00
Unavailable
21
BOLT (6E0)
90105-06M15-00
Unavailable
22
HOSE (L420)
90445-18020-00
Unavailable
23
HOSE (L350)
90446-24MF4-00
Unavailable
24
CLIP
90467-170A4-00
Unavailable
25
PIPE, BREATHER 4
6EY-11125-00-00
Unavailable
26
CLIP
90467-110A1-00
Unavailable
27
PIPE, BREATHER 3
6GY-11126-00-00
Unavailable
28
TUBE (L150)
90447-19011-00
Unavailable
29
TUBE
90447-19023-00
Unavailable
30
CLAMP
90464-18005-00
Unavailable
31
CLIP
90467-170A4-00
Unavailable
32
CLAMP(3XW)
90464-35132-00
Unavailable
