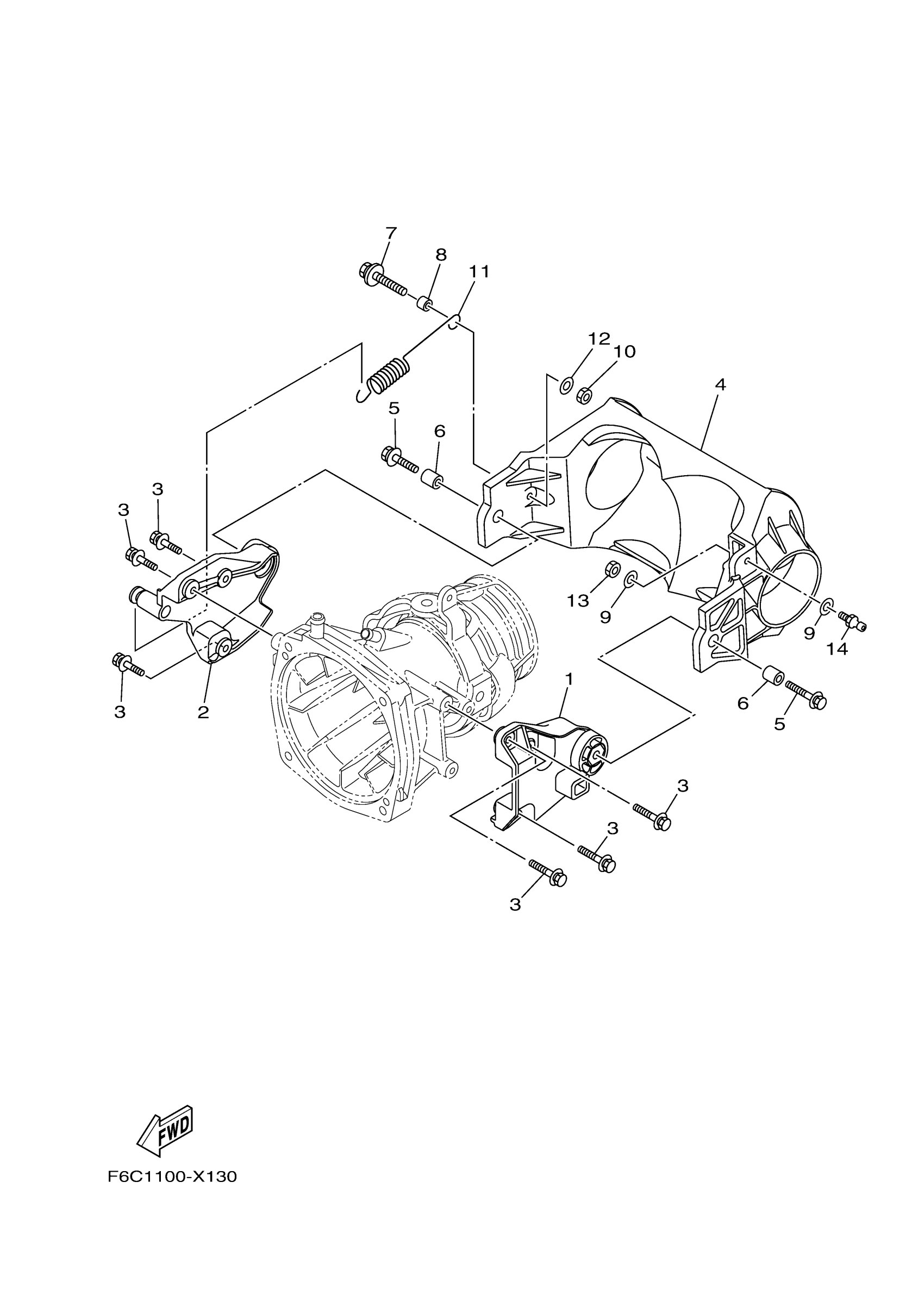

Yamaha JB1050X (JET BLASTER) F6C1 2022 JET UNIT 3 Diagram

#

Description

Price

1

BRACKET 1

6GY-R1341-00-00

$14.16

2

BRACKET 2

6GY-R1342-00-00

$15.66

3

BOLT, WITH WASHER

90119-06892-00

$4.01

4

GATE, REVERSE

6GY-R1314-00-00

$27.60

5

BOLT, WITH WASHER

90119-08841-00

$1.07

6

COLLAR

90387-08M30-00

$7.59

7

BOLT, WITH WASHER

90119-068E3-00

$1.79

8

COLLAR

90387-06319-00

Unavailable

9

WASHER, PLATE

90201-06020-00

$5.86

10

NUT, HEXAGON

95380-06600-00

$4.20

11

SPRING, RETAINER

6S5-R2358-00-00

$2.40

12

WASHER, PLATE

90201-06020-00

$5.86

13

NUT, HEXAGON

95380-06600-00

$4.20

14

STUD, JOINT BALL

6GA-U1461-10-00

Unavailable
