Description

Price

1

HOUSING, BEARING

6GA-G5332-00-00

Unavailable

2

DAMPER

6GA-G5235-00-00

Unavailable

3

SHAFT, COUPLER

6GY-R1323-00-00

Unavailable

4

O-RING

93210-19001-00

Unavailable

5

OIL SEAL(62T)

93101-25M55-00

$30.99

6

CIRCLIP(26H)

99009-52500-00

$12.49

7

BEARING

93306-205XG-00

Unavailable

8

OIL SEAL

93101-24001-00

$31.99

9

FLANGE, COUPLING 1

6EY-G5593-00-00

Unavailable

10

WASHER, PLATE

90201-27008-00

Unavailable

11

CAP

F3Y-U2155-01-00

Unavailable

12

BOLT, WITH WASHER

90119-06892-00

Unavailable

13

COLLAR

90387-06289-00

$3.18

14

COVER

6GA-R1381-00-00

Unavailable

15

JOINT, PIPE

F3Y-U883E-01-00

$35.99

16

NUT,INSERT

F3Y-U3746-01-00

Unavailable

17

NUT, LOCK

F2N-U142L-00-00

Unavailable

18

BOLT

90109-06832-00

Unavailable

19

BAND, HOSE 55

90601-155U4-00

Unavailable

20

PIPE 1

F3Y-U883B-00-00

Unavailable

21

FLOTATION, STERN RH

F3Y-U892D-01-00

Unavailable

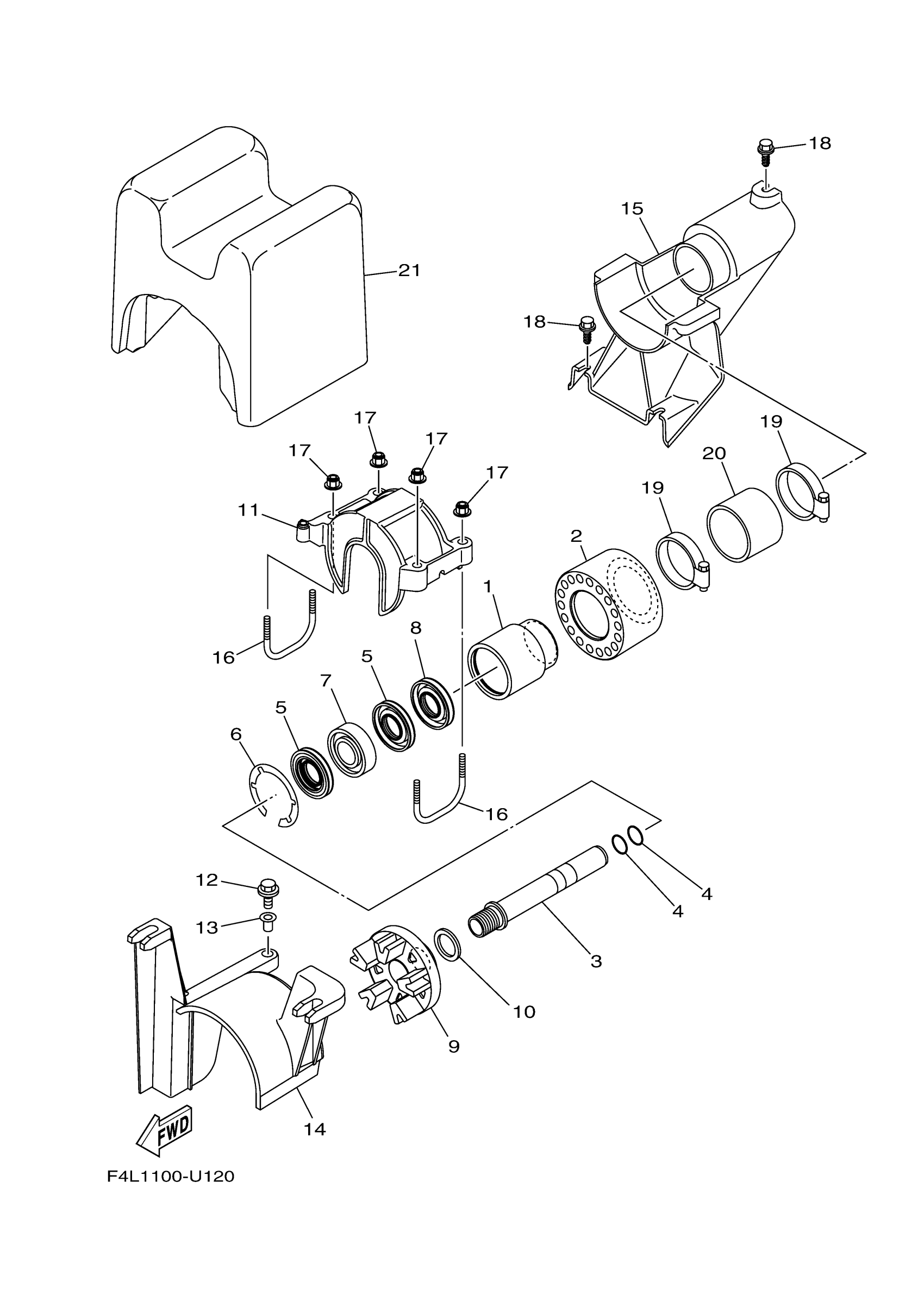

Yamaha JB1050X (JET BLASTER) F6C1 2022 JET UNIT 2 Diagram

HOUSING, BEARING

DAMPER

SHAFT, COUPLER

O-RING

OIL SEAL(62T)

CIRCLIP(26H)

BEARING

OIL SEAL

FLANGE, COUPLING 1

WASHER, PLATE

CAP

BOLT, WITH WASHER

COLLAR

COVER

JOINT, PIPE

NUT,INSERT

NUT, LOCK

BOLT

BAND, HOSE 55

PIPE 1

FLOTATION, STERN RH
