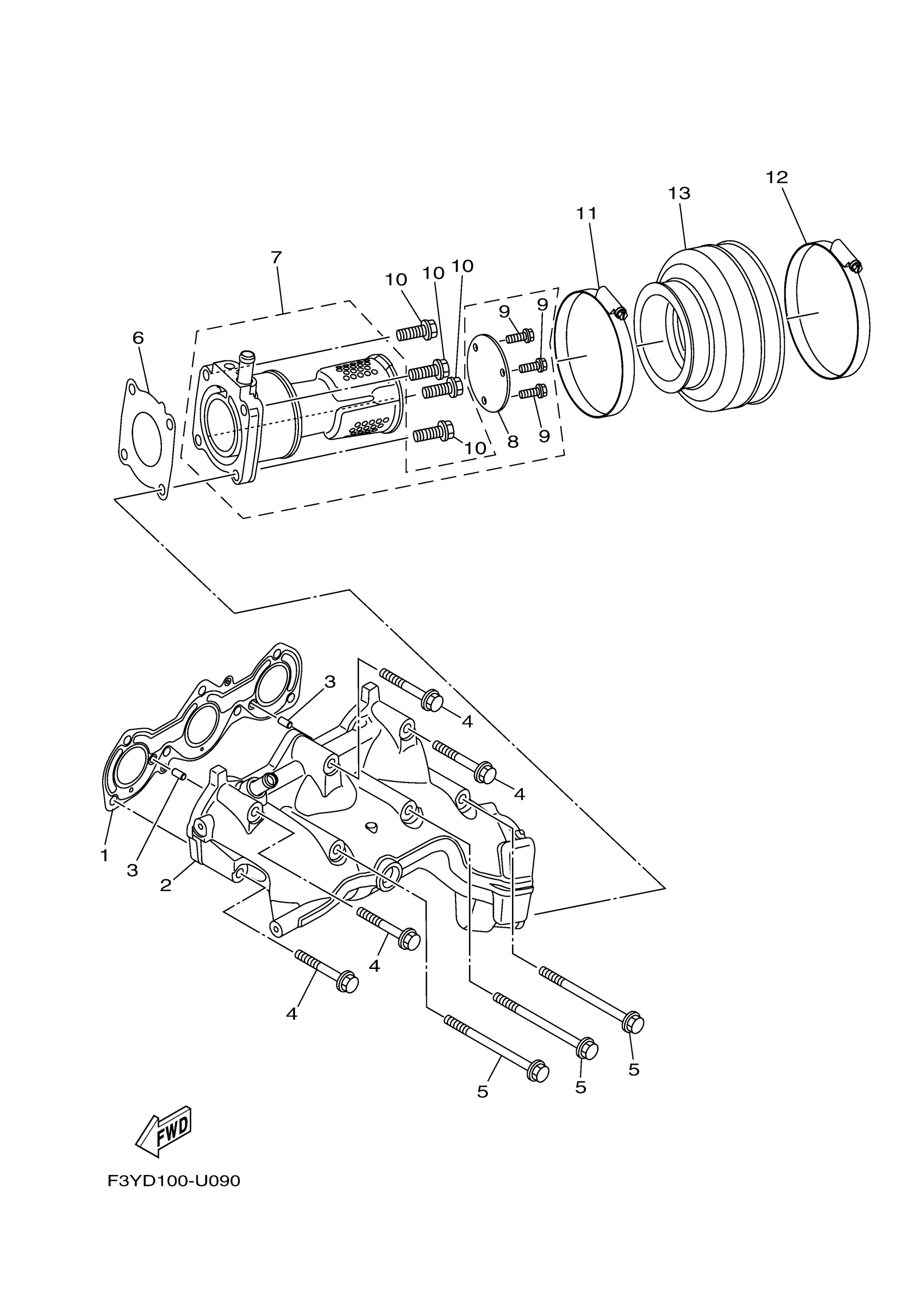

Yamaha JB1050X (JET BLASTER) F6C1 2022 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6GA-14613-00-00

$31.85

2

MUFFLER 1

6GA-14711-00-00

$522.71

3

PIN, DOWEL (614)

93606-12019-00

$3.05

4

BOLT, WITH WASHER

90119-08034-00

$3.33

5

BOLT, WITH WASHER

90119-08097-00

$5.18

6

. GASKET, MUFFLER DAMPER 1

6GA-14739-00-00

$7.40

7

PIPE, TAIL

6GA-14784-00-00

$218.17

8

. PLATE, SILENCER 6

6GA-1469W-00-00

$8.32

9

. BOLT, FLANGE DEEP RECESS

95E34-06016-00

$4.55

10

BOLT, FLANGE (3JPE)

95024-08030-00

$9.99

11

HOSE CLAMP ASSY

90450-99808-00

$5.15

12

HOSE CLAMP ASSY

90450-99810-00

$5.53

13

PIPE, OUTLET

6GA-14752-00-00

$86.35
