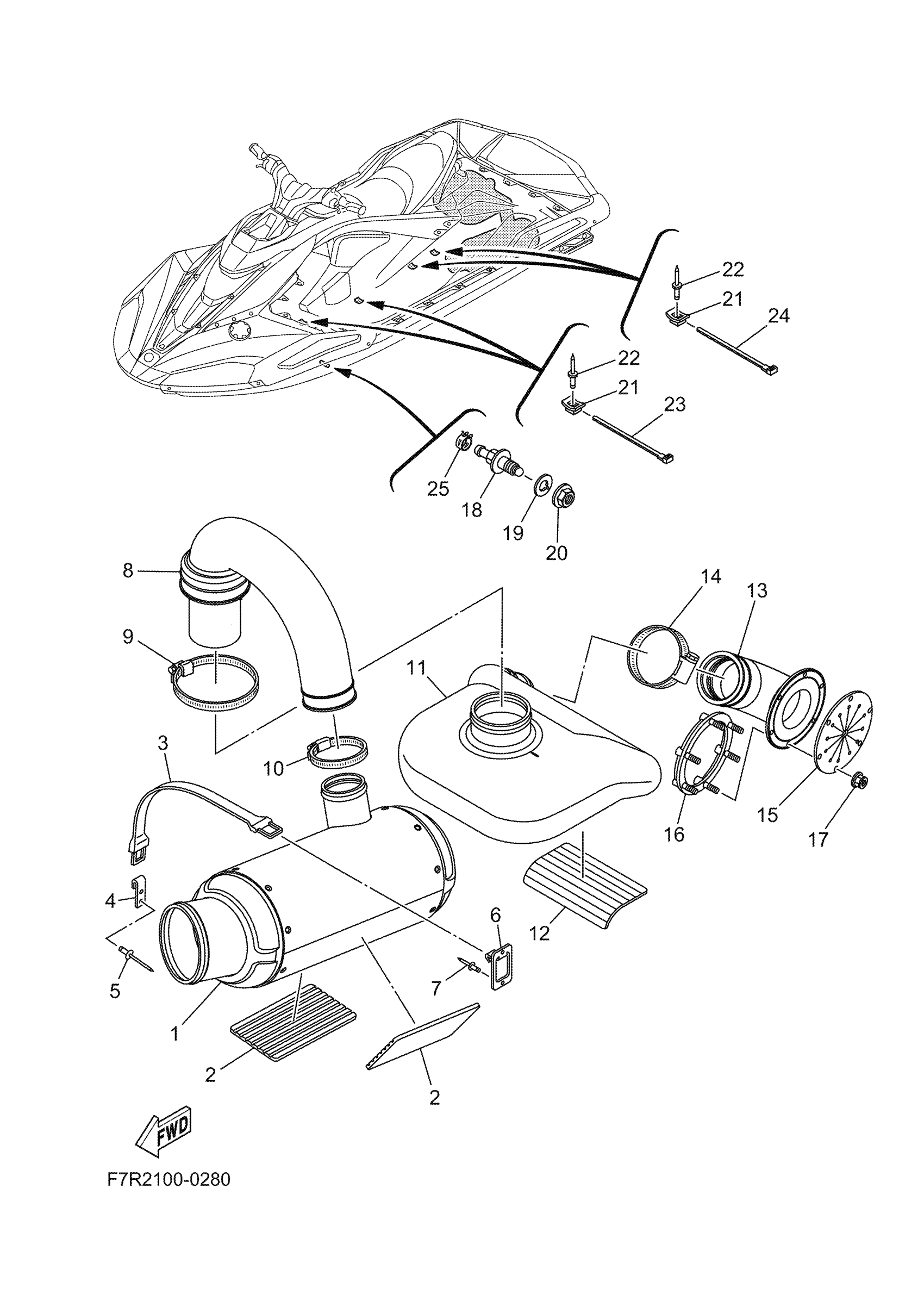

Yamaha JB1050FB (JETBLASTER) F7R2 2025 EXHAUST 3 Diagram
#
Description
Price
1
WATER LOCK COMP.
F3Y-U7550-01-00
Unavailable
2
PAD, BATTERY
F1S-U8221-00-00
Unavailable
3
BAND,BATTERY 1
EU0-U821D-00-00
Unavailable
4
HOOK A
GA7-65772-00-00
Unavailable
5
RIVET (EU0)
90267-48938-00
Unavailable
6
HOOK A
F1K-U5772-04-00
Unavailable
7
RIVET (EU0)
90267-48938-00
Unavailable
8
HOSE, EXHAUST
F5P-U7555-00-00
Unavailable
9
BAND, HOSE 79
90601-179U8-00
Unavailable
10
HOSE CLAMP ASSY
90450-99804-00
Unavailable
11
TANK, WATER
F3Y-U4261-00-00
Unavailable
12
PAD, BATTERY
F1S-U8221-00-00
Unavailable
13
HOSE,EXHAUST 3
F3Y-U758D-00-00
Unavailable
14
BAND, HOSE 79
90601-179U8-00
Unavailable
15
VALVE, EXHAUST
F1B-U751G-10-00
Unavailable
16
PLATE
F1S-U757B-01-00
Unavailable
17
NUT, LOCK
F2N-U142L-00-00
Unavailable
18
PILOT, WATER
F2C-U753B-01-00
Unavailable
19
GASKET
F2C-U7564-02-00
Unavailable
20
NUT
F2C-U2733-00-00
Unavailable
21
BASE, CLAMP
F1W-U828M-00-00
Unavailable
22
RIVET, BLIND
90267-48806-00
Unavailable
23
CLAMP
90464-32801-00
Unavailable
24
BAND
90601-200U2-00
Unavailable
25
CLIP
90467-150A5-00
Unavailable
