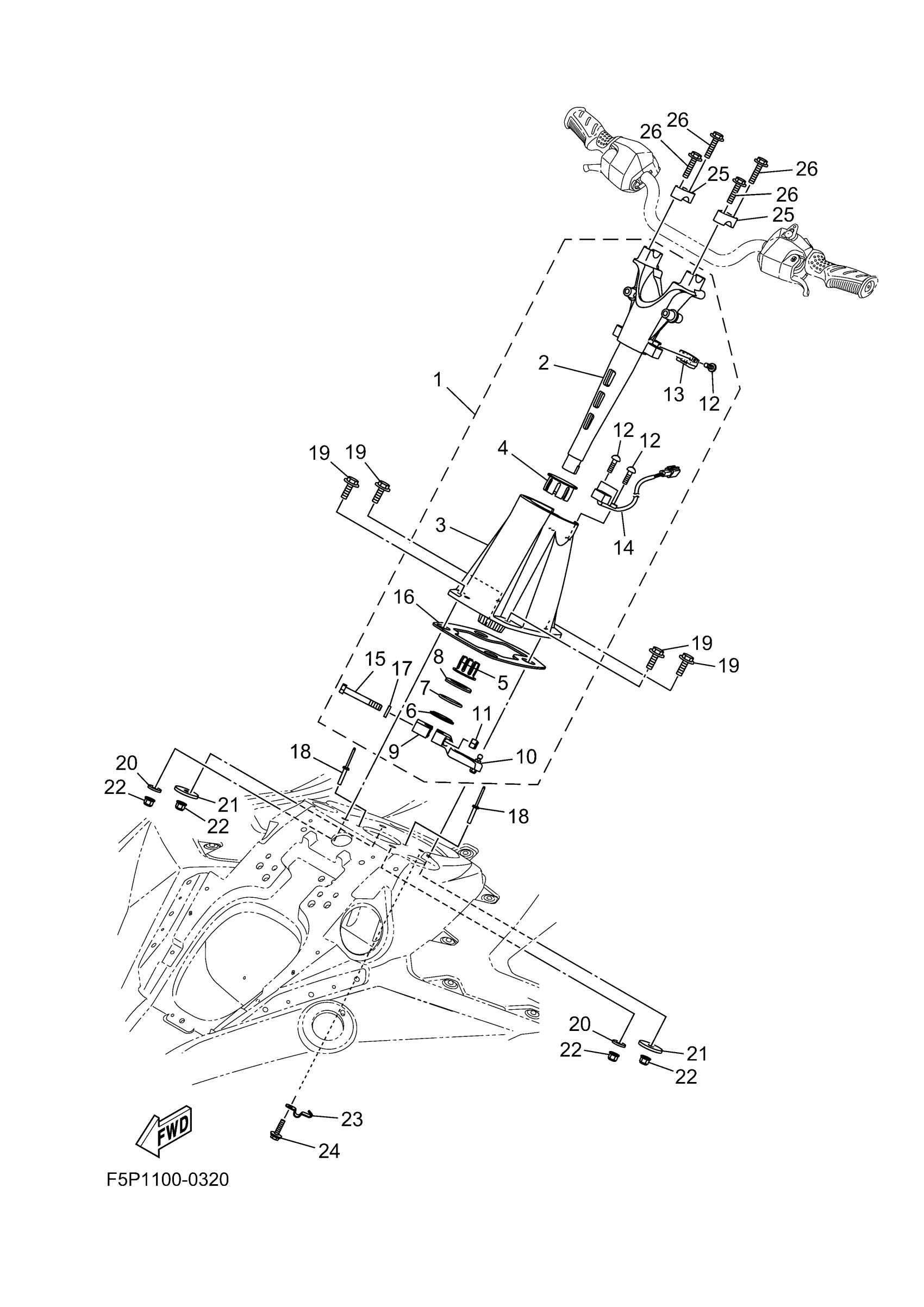

Yamaha JB1050EB (JETBLASTER DLX 2UP) F7R1 2025 STEERING 2 Diagram

#

Description

Price

1

STEERING MASTER ASSY

F5P-61400-00-00

Unavailable

2

. SHAFT

F5P-6152D-00-00

Unavailable

3

. HOUSING ASSY

F5M-6152M-00-00

Unavailable

4

. BUSH

F5M-6134M-00-00

Unavailable

5

. BUSH

F5M-6134M-10-00

Unavailable

6

. PLATE, RETAINING

F5M-61554-00-00

Unavailable

7

. O-RING

F5M-613C5-00-00

Unavailable

8

. PLATE, COVER

F5M-6155G-00-00

Unavailable

9

. HOLDER, STOPPER

F5M-61339-00-00

Unavailable

10

. ARM ASSY

F5P-6153R-00-00

Unavailable

11

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

12

. SCREW

F2X-613C1-00-00

Unavailable

13

MAGNET

F2X-6838C-01-00

Unavailable

14

SENSOR, MAGNET

F2X-6838B-02-00

Unavailable

15

.. BOLT

F1K-61355-00-00

Unavailable

16

. SEAL, RUBBER

F5M-6143C-00-00

Unavailable

17

. WASHER

F5M-6153P-00-00

Unavailable

18

RIVET, BLIND

90267-489U8-00

Unavailable

19

BOLT

F3P-U1369-09-00

Unavailable

20

WASHER, PLATE

90201-109U6-00

Unavailable

21

WASHER

F1W-U725E-00-00

Unavailable

22

NUT, LOCK

F3Y-U142L-00-00

Unavailable

23

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

24

BOLT, WITH WASHER

90119-06880-00

Unavailable

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

Unavailable

26

BOLT, WITH WASHER

90119-08844-00

Unavailable
