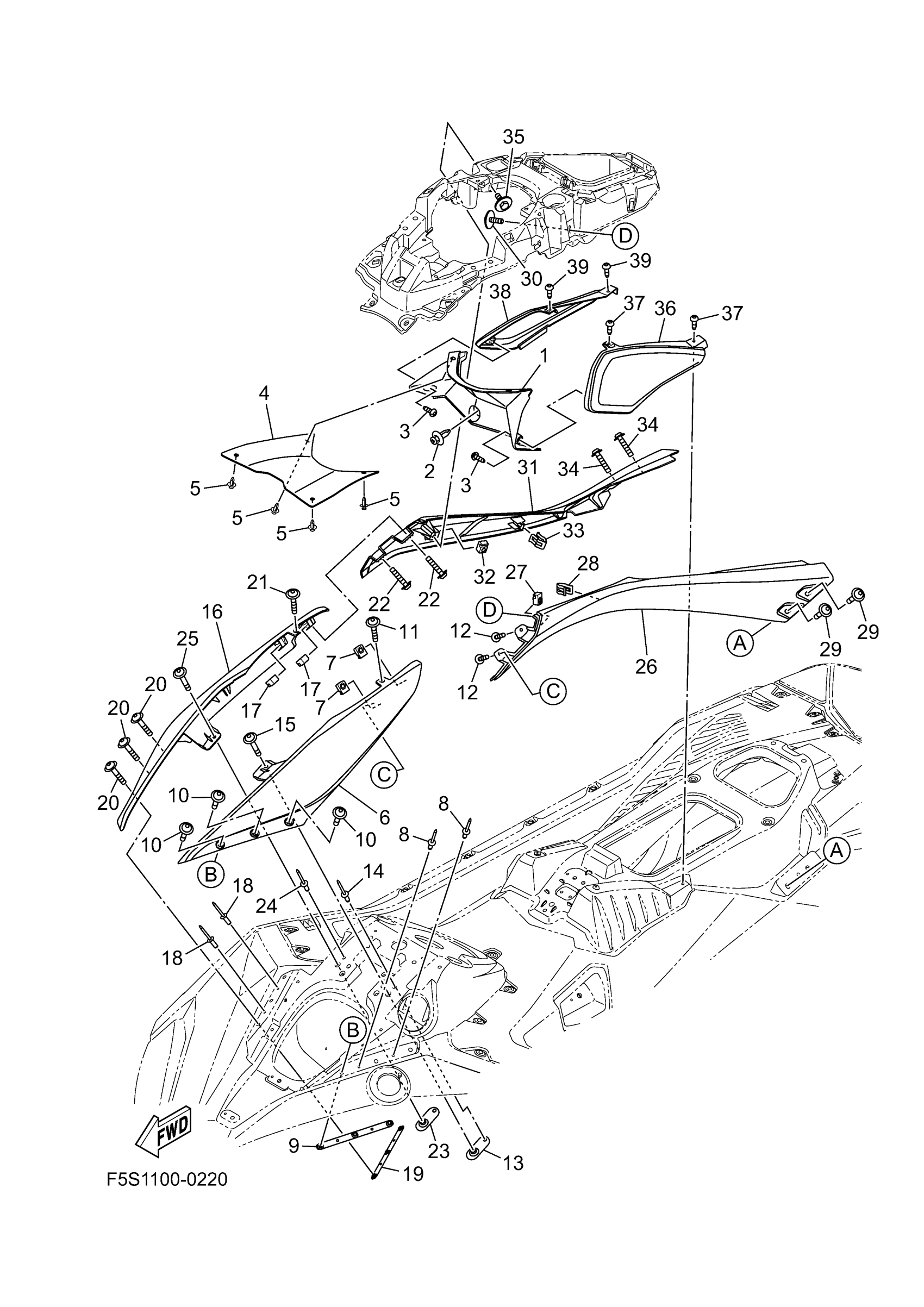

Yamaha JB1050EB (JETBLASTER DLX 2UP) F7R1 2025 ENGINE HATCH 3 Diagram

#

Description
Price

1

COVER, GLOVE BOX

F5P-U4785-00-00

Unavailable

2

RIVET

F4P-U1454-00-00

$1.06

3

SCREW

F2S-U13C1-00-00

$2.36

4

PLATE,GLOVE BOX

F5P-U4755-00-00

Unavailable

5

RIVET

F4P-U1454-00-00

$1.06

6

COVER, SIDE 1

F5P-U377B-10-00

Unavailable

7

NUT

F3X-U517E-00-00

$1.23

8

RIVET 1

F4P-U516R-01-00

$4.87

9

BRACKET 1

F5P-U0511-00-00

Unavailable

10

SCREW

F5G-U6829-00-00

$0.91

11

SCREW

F5G-U6829-09-00

Unavailable

12

SCREW

F5G-U6829-09-00

Unavailable

13

PLATE, FIX

F2X-U5175-00-00

$1.80

14

RIVET 1

F4P-U516R-01-00

$4.87

15

SCREW

F5G-U6829-00-00

$0.91

16

COVER, SIDE 2

F5P-U377C-10-00

Unavailable

17

NUT

F3X-U517E-00-00

$1.23

18

RIVET 1

F4P-U516R-01-00

$4.87

19

BRACKET 1

F5P-U0511-00-00

Unavailable

20

SCREW

F5G-U6829-00-00

$0.91

21

SCREW

F5G-U6829-09-00

Unavailable

22

SCREW

F5G-U6829-09-00

Unavailable

23

PLATE, FIX

F2X-U5175-00-00

$1.80

24

RIVET 1

F4P-U516R-01-00

$4.87

25

SCREW

F5G-U6829-00-00

$0.91

26

FRAME

F5P-U3663-10-00

Unavailable

27

NUT

F3X-U517E-00-00

$1.23

28

CLIP

F3Y-U153K-00-00

$1.29

29

SCREW

F5G-U6829-00-00

$0.91

30

BOLT

F3X-U13B4-00-00

$1.01

31

FRAME

F5P-U3664-10-00

Unavailable

32

NUT

F3X-U517E-00-00

$1.23

33

CLIP

F3Y-U153K-00-00

$1.29

34

SCREW

F5G-U6829-00-00

$0.91

35

BOLT

F3X-U13B4-00-00

$1.01

36

PAD, KNEE 1

F5P-U353C-20-00

Unavailable

37

SCREW

F2S-U13C1-00-00

$2.36

38

PAD, KNEE 2

F5P-U353D-20-00

Unavailable

39

SCREW

F2S-U13C1-00-00

$2.36
