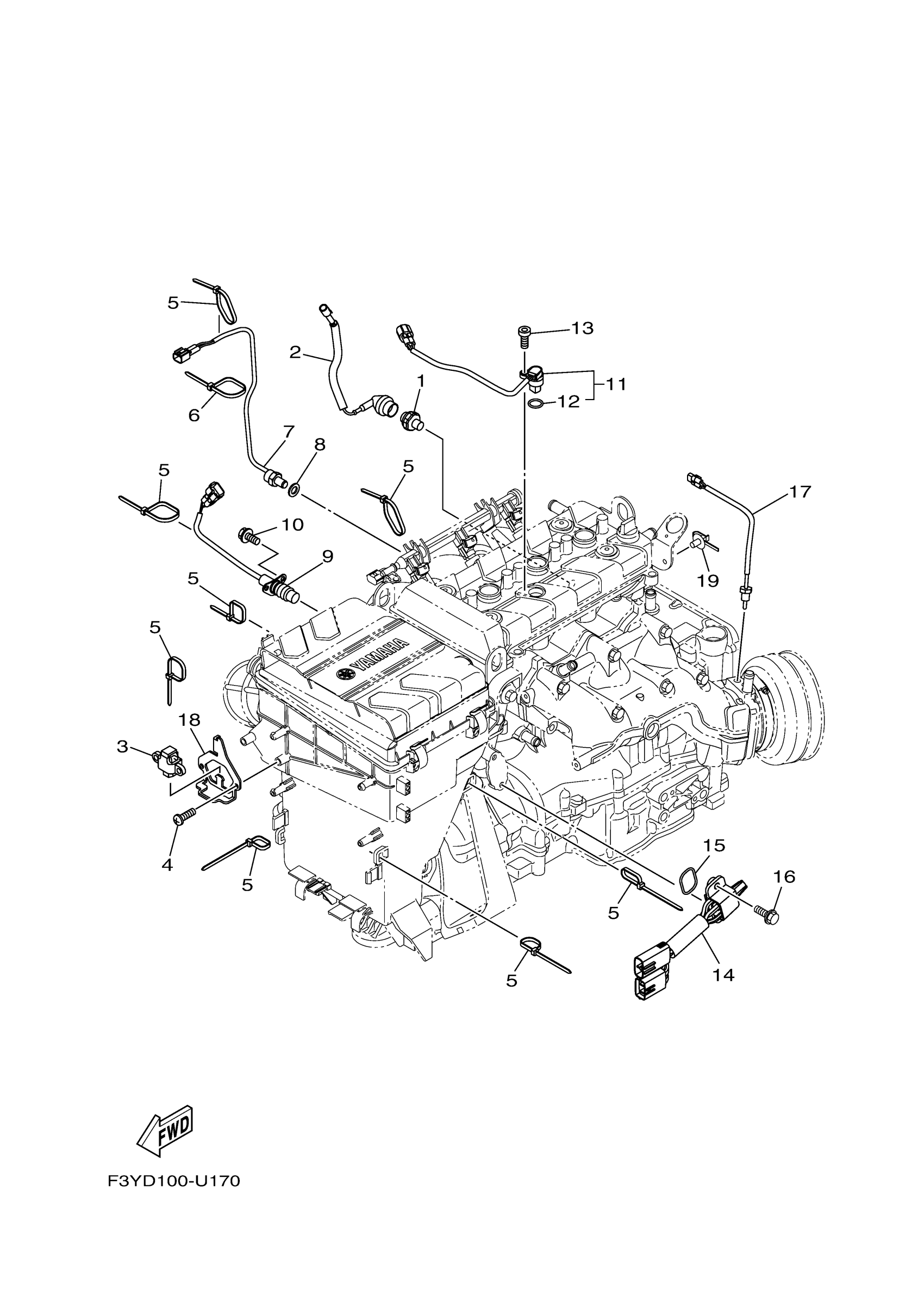

Yamaha JB1050EB (JETBLASTER DLX 2UP) F7R1 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

2

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

3

SENSOR, LEAN ANGLE

6ET-82576-00-00

Unavailable

4

SCREW, TAPPING

97780-60520-00

Unavailable

5

CLAMP(3XW)

90464-35132-00

$9.49

6

CLAMP(6E8)

90465-13M39-00

$5.40

7

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

8

WASHER, PLATE

92990-10600-00

Unavailable

9

THERMO SWITCH ASSY

6CR-82560-00-00

Unavailable

10

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

Unavailable

11

SENSOR, CAM POSITI

2S3-85896-02-00

Unavailable

12

O-RING

4D9-81168-00-00

$6.99

13

BOLT,SOCKET

91380-06016-00

Unavailable

14

EARTH PLATE COMP.

6CS-8273J-11-00

Unavailable

15

O-RING (341)

93210-32172-00

$7.49

16

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

17

THERMOSENSOR ASSY

6DE-85790-00-00

Unavailable

18

PLATE

6EY-83618-10-00

Unavailable

19

CLAMP

90464-20005-00

Unavailable
