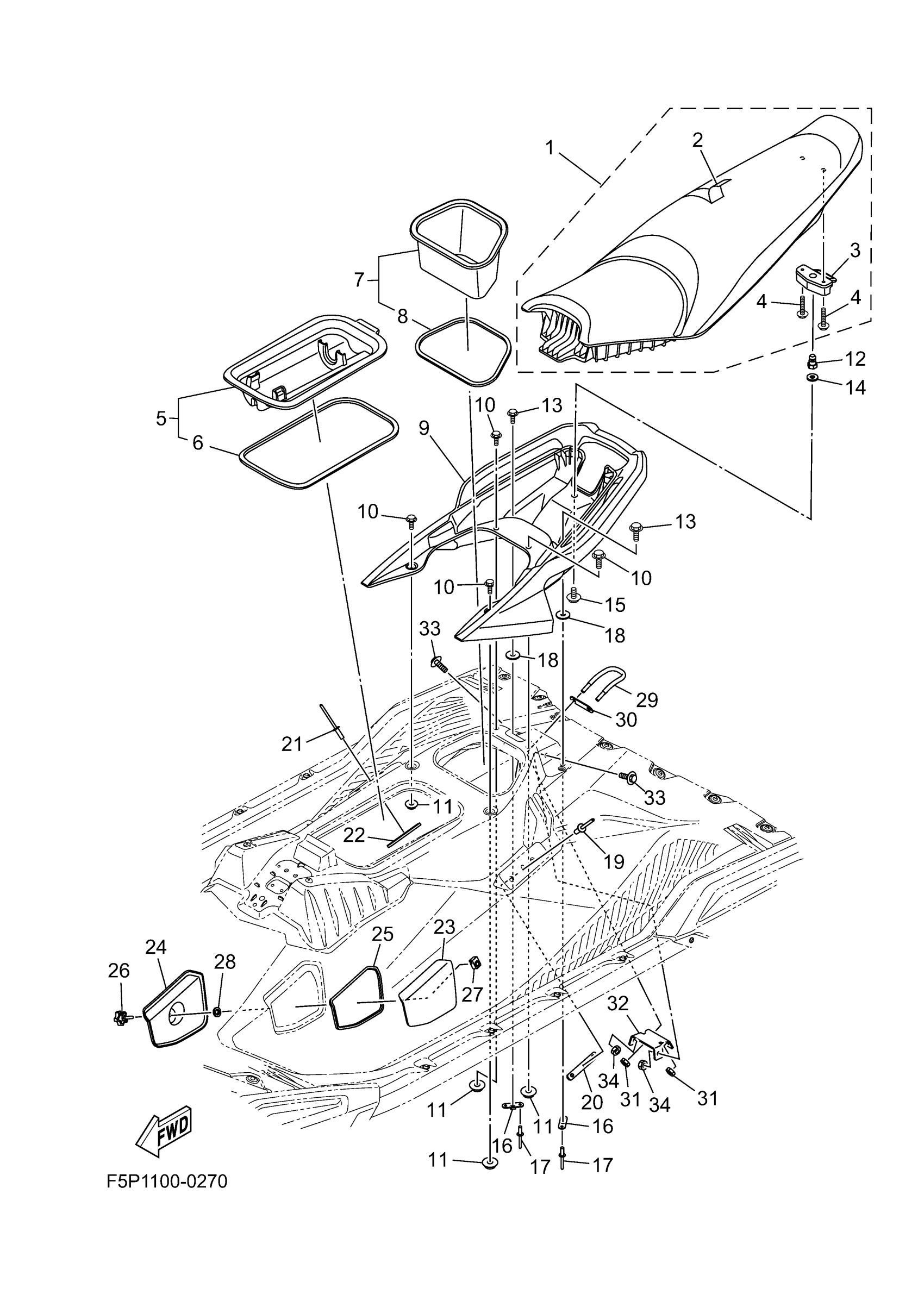

Yamaha JB1050DB (JETBLASTER DLX 3UP) F5S1 2025 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

TRIPLE SEAT ASSY

F5P-U370H-20-00

Unavailable

2

. COVER,SEAT 3

F5P-UFJ53-20-00

Unavailable

3

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

4

BOLT, WITH WASHER

90119-06808-00

$2.16

5

CASE ASSY 2

F3Y-U592A-10-00

$28.02

6

PACKING 5

F3Y-U266D-10-00

$13.62

7

CASE ASSY 1

F5P-U591A-00-00

Unavailable

8

. PACKING 6

F5P-U266E-00-00

Unavailable

9

GRIP, HAND

F5P-U271B-00-00

Unavailable

10

BOLT, WITH WASHER

90119-08828-00

$2.30

11

NUT, LOCK

F3Y-U142L-00-00

$2.52

12

PIN

F1K-U3774-00-00

$15.07

13

BOLT, WITH WASHER

90119-08828-00

$2.30

14

WASHER, PLATE

90201-109U6-00

$3.29

15

BOLT,WITH WASHER

90119-10815-00

$4.09

16

BRACKET

F2C-U826C-00-00

$3.79

17

RIVET

F5M-U1454-00-00

Unavailable

18

PACKING 4

F5P-U266C-00-00

Unavailable

19

RIVET 1

F4P-U516R-01-00

$4.87

20

BRACKET, 2 (FX31)

F5P-U0512-00-00

Unavailable

21

RIVET 1

F4P-U516R-01-00

$4.87

22

BRACKET, 2 (FX31)

F5P-U0512-00-00

Unavailable

23

COVER 1

F5P-U8187-00-00

Unavailable

24

COVER

F5P-U8188-00-00

Unavailable

25

PACKING,SEAL

F5P-U7824-00-00

Unavailable

26

KNOB

F5P-U6862-00-00

Unavailable

27

NUT

F3X-U517E-00-00

$1.23

28

WASHER

F5P-U1174-00-00

Unavailable

29

SKI TOWS

F1B-U1629-00-00

$25.11

30

PLATE A

GP7-U4953-10-00

$3.52

31

NUT, NYLON (6J8)

95780-08300-00

$10.55

32

RFM. DECK ASSY 1

F5P-U9310-00-00

Unavailable

33

BOLT,WITH WASHER

90119-08870-00

$12.90

34

NUT, NYLON (6J8)

95780-08300-00

$10.55
