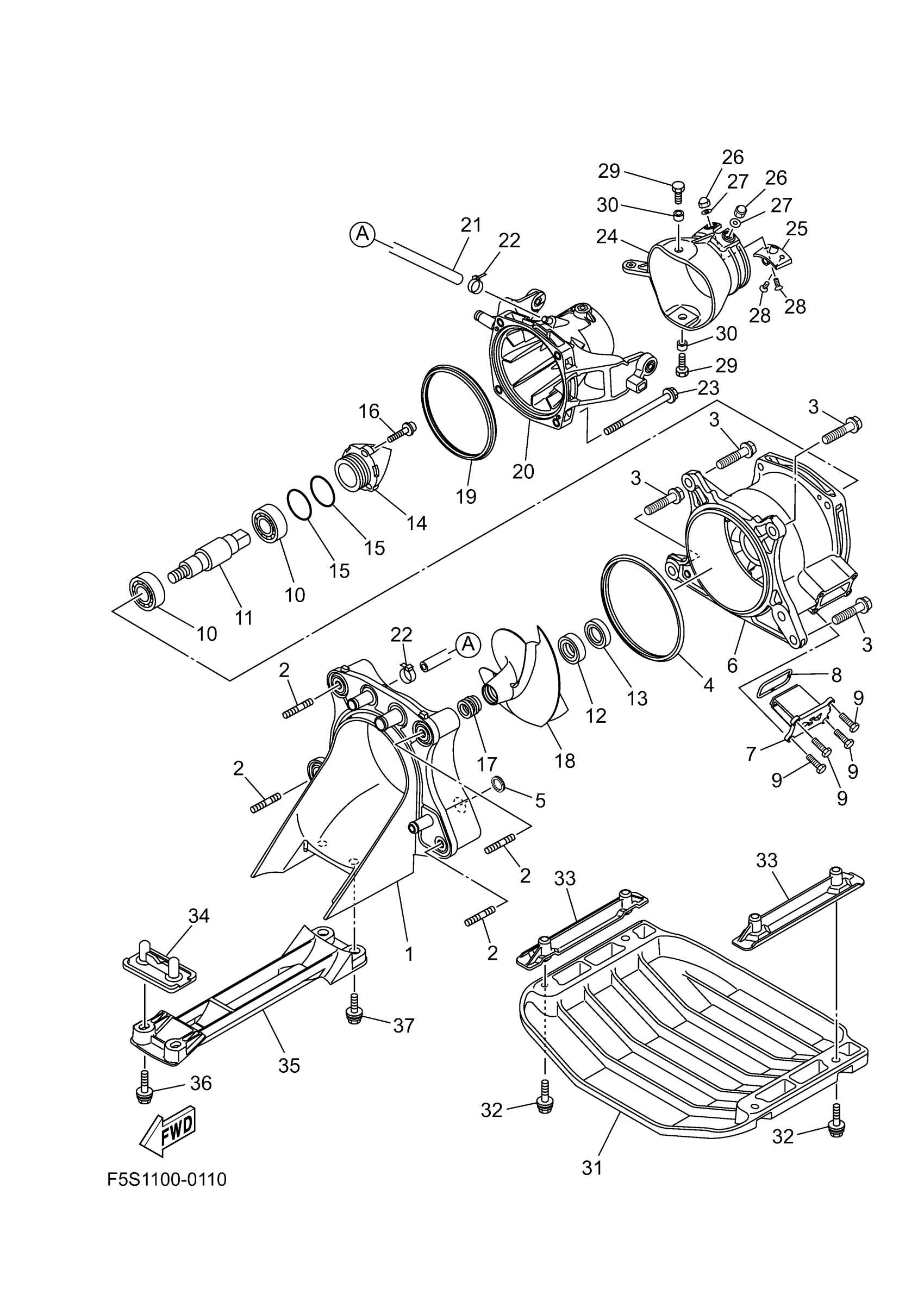

Yamaha JB1050DB (JETBLASTER DLX 3UP) F5S1 2025 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM 2

6MP-G5833-00-00

Unavailable

2

BOLT, STUD

90116-10803-00

Unavailable

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

. PACKING

6MP-G6883-00-00

Unavailable

5

. RING, SEAL

6MP-G5874-00-00

Unavailable

6

HOUSING, IMPELLER

6MP-R1312-00-00

Unavailable

7

FILTER

6MP-G6882-00-00

Unavailable

8

O-RING

6MP-G2414-00-00

Unavailable

9

BOLT,WITH WASHER

90119-06890-00

$1.07

10

BEARING

93306-255X7-00

$14.35

11

SHAFT, DRIVE 4

6GA-G5514-00-00

$43.83

12

OIL SEAL(6R7)

93102-25M34-00

$13.70

13

OIL SEAL(6R7)

93101-25M50-00

$20.80

14

CAP

6EX-R1326-10-00

$7.12

15

. O-RING

93210-44003-00

$2.61

16

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

17

CAP, IMPELLER

6DU-51319-00-00

$24.98

18

IMPELLER

6GA-R1321-00-00

$214.88

19

. O-RING

93211-49800-00

Unavailable

20

NOZZLE

6MP-R1318-00-00

Unavailable

21

HOSE (L380)

90445-14M25-00

Unavailable

22

CLAMP

90465-10098-00

$1.68

23

BOLT, WITH WASHER

90119-10811-00

$1.37

24

NOZZLE, DEFLECTOR

6MP-R1313-00-00

Unavailable

25

SPOUT

6MP-U269B-00-00

Unavailable

26

NUT (J17)

95380-06800-00

Unavailable

27

WASHER, PLATE

90201-06020-00

Unavailable

28

SCREW, FLAT HEAD

98780-06016-00

$5.00

29

BOLT, WITH WASHER

90119-08841-00

$1.01

30

COLLAR

90387-08M30-00

$7.40

31

PLATE 2

F5P-U273B-00-00

Unavailable

32

BOLT

F4L-U3222-01-00

Unavailable

33

BRACKET 2

F5P-U8572-00-00

Unavailable

34

BRACKET, 3

F2S-U8577-00-00

$15.07

35

SCREEN, INTAKE

F5P-U72B7-00-00

Unavailable

36

BOLT

F3Y-U1426-01-00

Unavailable

37

BOLT

F3Y-U1426-01-00

Unavailable
