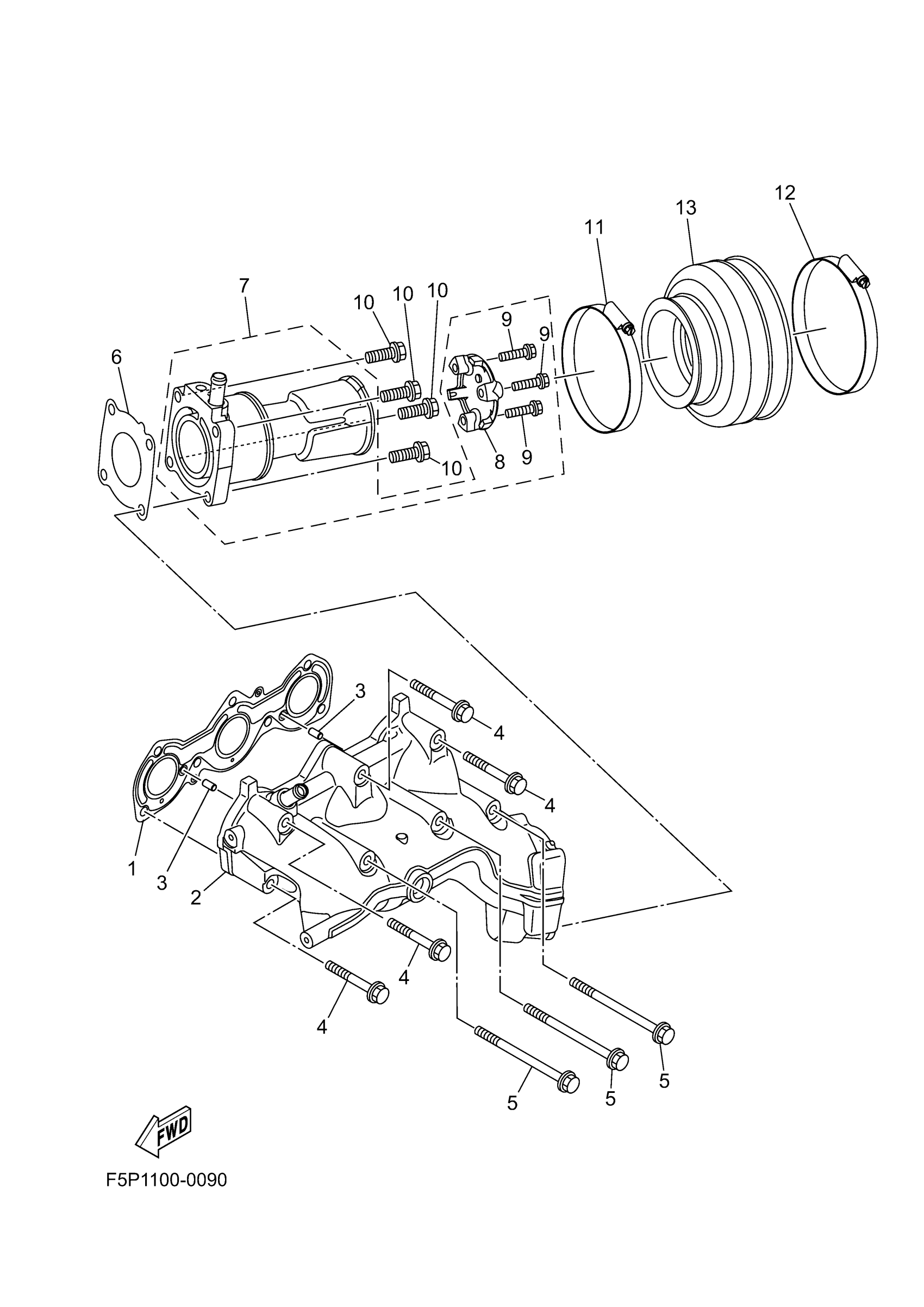

Yamaha JB1050DB (JETBLASTER DLX 3UP) F5S1 2025 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6GA-14613-00-00

Unavailable

2

MUFFLER 1

6GA-14711-00-00

Unavailable

3

PIN, DOWEL (614)

93606-12019-00

$4.24

4

BOLT, WITH WASHER

90119-08034-00

Unavailable

5

BOLT, WITH WASHER

90119-08097-00

Unavailable

6

. GASKET, MUFFLER DAMPER 1

6GA-14739-00-00

Unavailable

7

PIPE, TAIL

6JF-14784-00-00

Unavailable

8

PLATE, SILENCER 6

6JF-1469W-00-00

Unavailable

9

BOLT, FLANGE DEEP

95E34-06030-00

Unavailable

10

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

11

HOSE CLAMP ASSY

90450-99808-00

Unavailable

12

HOSE CLAMP ASSY

90450-99810-00

Unavailable

13

PIPE, OUTLET

6GA-14752-00-00

Unavailable
