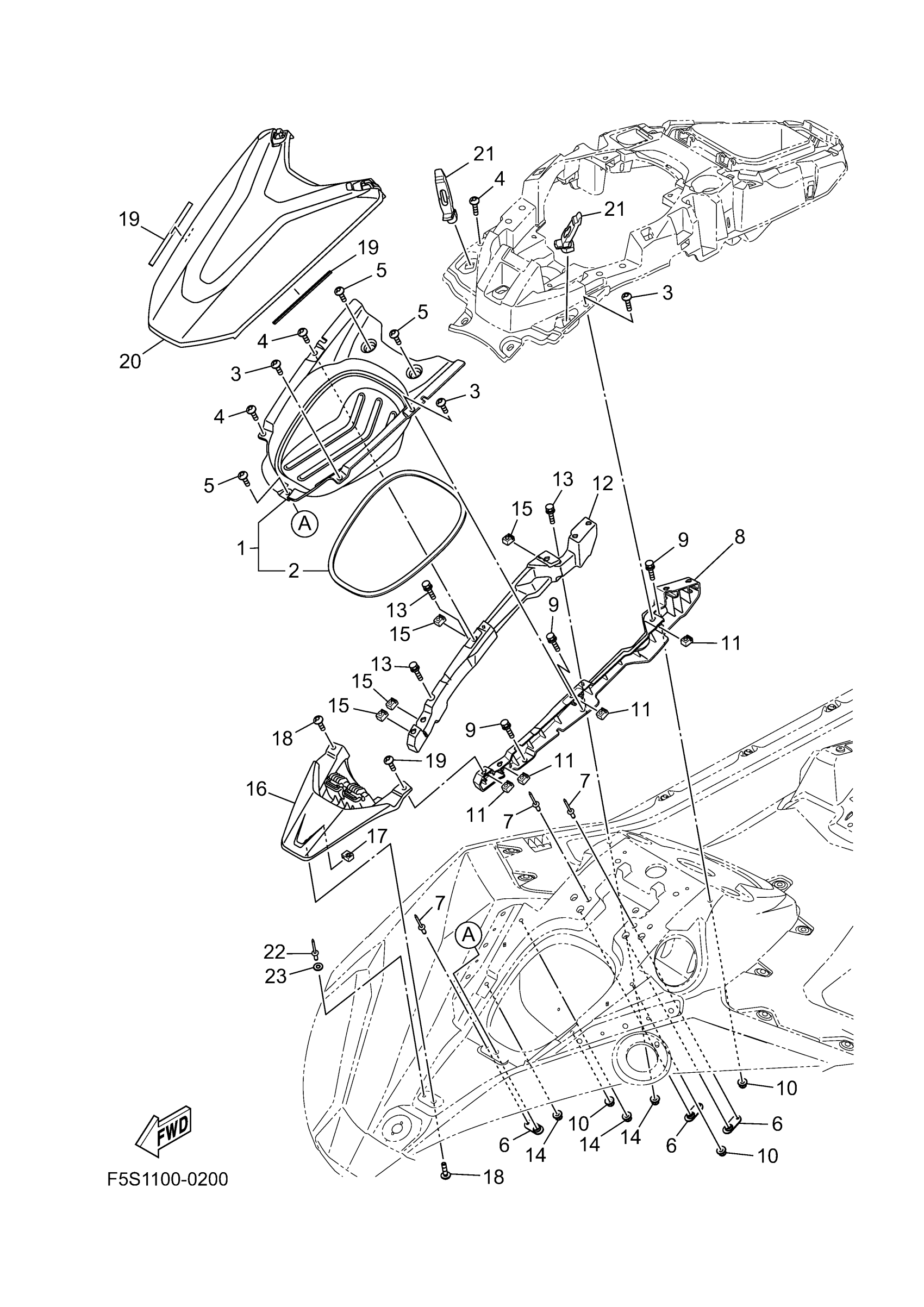

Yamaha JB1050DB (JETBLASTER DLX 3UP) F5S1 2025 ENGINE HATCH 1 Diagram

#

Description
Price

1

BOWLOCKER ASSY

F5P-U475A-00-00

Unavailable

2

. PACKING 1

F3Y-U2663-00-00

$6.97

3

SCREW

F5G-U7823-09-00

Unavailable

4

SCREW

F5G-U7823-09-00

Unavailable

5

SCREW

F5G-U7823-00-00

$5.15

6

PLATE, FIX

F2X-U5175-00-00

$1.80

7

RIVET 1

F4P-U516R-01-00

$4.87

8

BRKT., COVER SIDE 1

F5P-U377M-00-00

Unavailable

9

BOLT, WITH WASHER

90119-06892-00

$3.79

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

NUT

F3X-U517E-00-00

$1.23

12

BRKT, COVER SIDE 2

F5P-U377N-00-00

Unavailable

13

BOLT, WITH WASHER

90119-06892-00

$3.79

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

NUT

F3X-U517E-00-00

$1.23

16

COVER, FRONT

F5P-U513M-00-00

Unavailable

17

NUT

F3X-U517E-00-00

$1.23

18

SCREW

F5G-U7823-09-00

Unavailable

19

PACKING 3

F4L-U266B-01-00

Unavailable

20

OUTER, ENGINE HATCH

F5P-U519F-00-00

Unavailable

21

LOCK 1

F5P-U264L-00-00

Unavailable

22

RIVET 1

F4P-U516R-01-00

$4.87

23

WASHER

9299R-05200-00

$3.16
