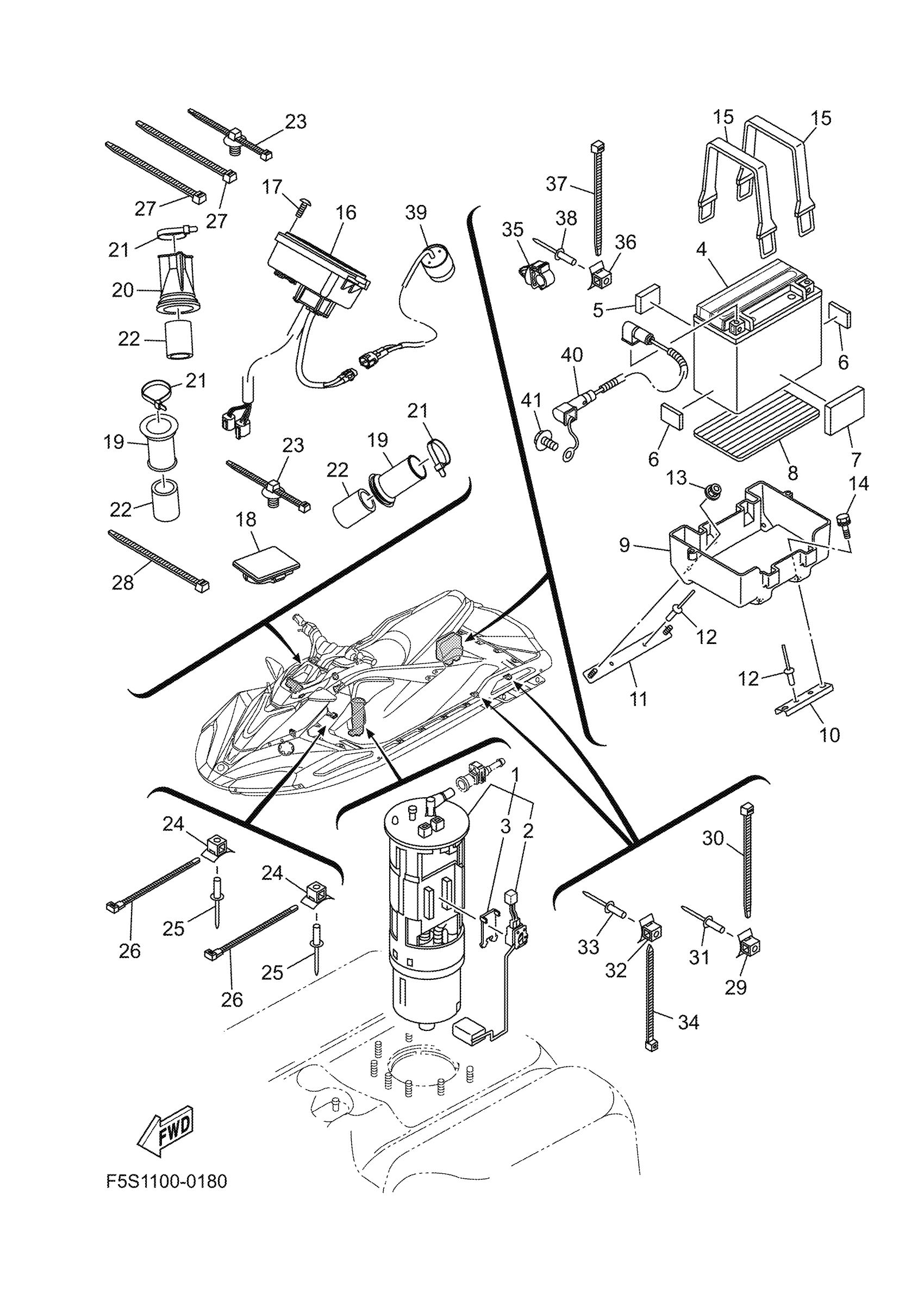

Yamaha JB1050DB (JETBLASTER DLX 3UP) F5S1 2025 ELECTRICAL 3 Diagram
#
1
FUEL PUMP COMP.
6S5-13907-05-00
Unavailable
2
FUEL SENDER ASSY
6S5-682E0-10-00
Unavailable
3
DAMPER, STOPPER
60E-82556-10-00
Unavailable
4
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
5
PACKING
F2C-U1743-00-00
Unavailable
6
PAD, BATTERY
EU0-U8221-31-00
$2.99
7
MAT 2
F1W-U759C-01-00
Unavailable
8
PAD, BATTERY
F1S-U8221-00-00
Unavailable
9
CASE, BATTERY
F2S-U8211-00-00
Unavailable
10
PLATE, BASE 2
F2S-U8592-00-00
Unavailable
11
PLATE, BASE 3
F2S-U8593-00-00
Unavailable
12
RIVET (EU0)
90267-48938-00
Unavailable
13
NUT, LOCK
F2N-U142L-00-00
Unavailable
14
BOLT, WITH WASHER
90119-06820-00
Unavailable
15
BAND, BATTERY 1
F4P-U821D-00-00
Unavailable
16
METER ASSY
F5S-U820A-00-00
Unavailable
17
SCREW
F2S-U7823-01-00
Unavailable
18
CAP
F4P-U5568-00-00
Unavailable
19
GROMMET
GU2-6822E-01-00
Unavailable
20
GROMMET
F3J-U822E-01-00
Unavailable
21
CLAMP
90464-32801-00
Unavailable
22
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
23
CLAMP
1NS-F1338-00-00
Unavailable
24
BASE, CLAMP
F1W-U828M-00-00
Unavailable
25
RIVET, BLIND
90267-48806-00
Unavailable
26
CLAMP
90464-32801-00
Unavailable
27
CLAMP
F2C-U4256-00-00
Unavailable
28
CLAMP
F2C-U4256-00-00
Unavailable
29
BASE, CLAMP
F1W-U828M-00-00
Unavailable
30
CLAMP
90464-32801-00
Unavailable
31
RIVET, BLIND
90267-48806-00
Unavailable
32
BASE, CLAMP
F1W-U828M-00-00
Unavailable
33
RIVET, BLIND
90267-48806-00
Unavailable
34
CLAMP
90464-32801-00
Unavailable
35
CLAMP
90464-10008-00
Unavailable
36
BASE, CLAMP
F1W-U828M-00-00
Unavailable
37
CLAMP
90464-32801-00
Unavailable
38
RIVET, BLIND
90267-48806-00
Unavailable
39
BUZZER
F1S-68341-00-00
Unavailable
40
WIRE, MINUS LEAD
6GA-82116-00-00
Unavailable
41
BOLT, WITH WASHER
97513-08514-00
Unavailable
