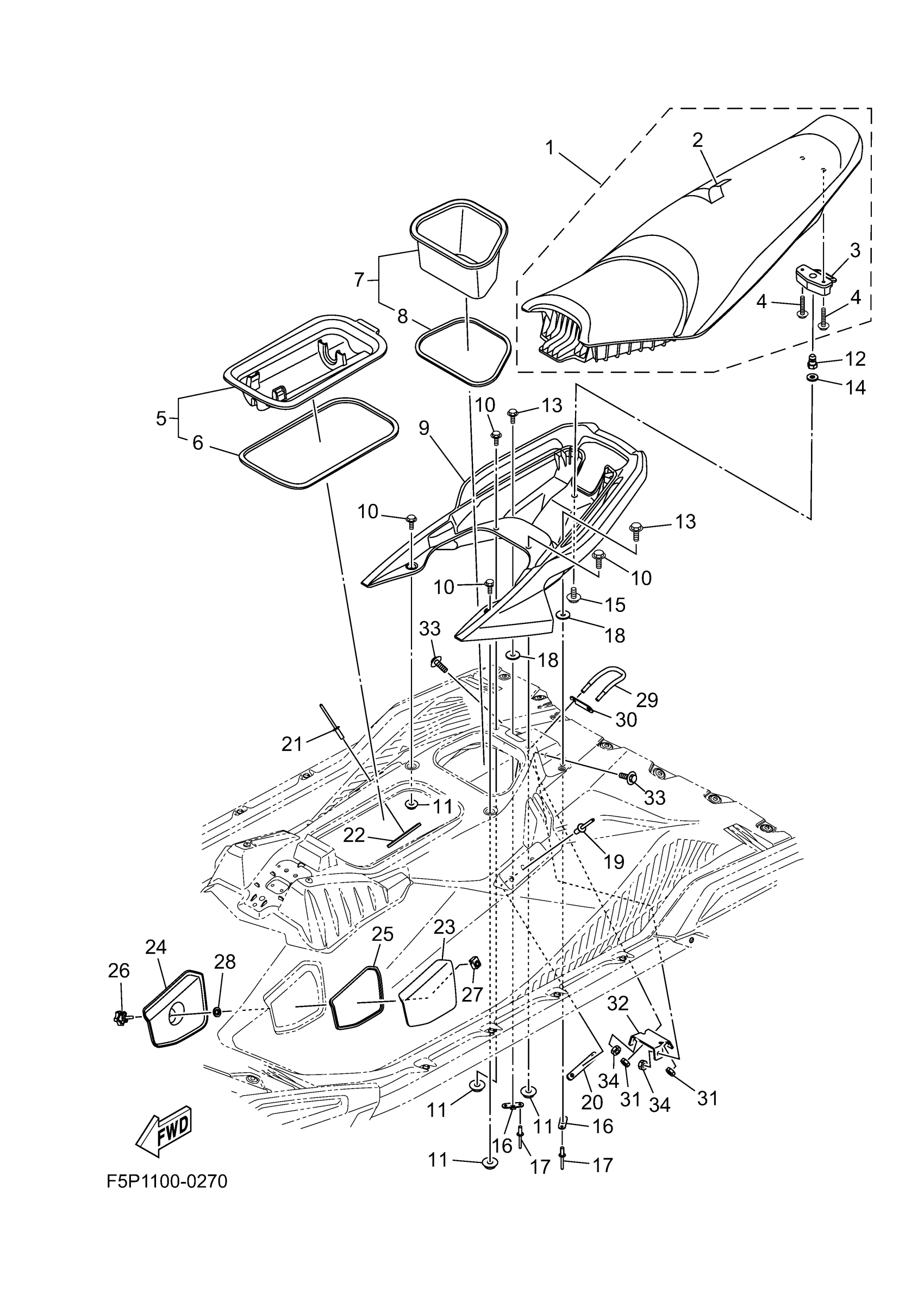

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

TRIPLE SEAT ASSY

F5P-U370H-10-00

Unavailable

2

. COVER,SEAT 3

F5P-UFJ53-10-00

Unavailable

3

. SEAT LOCK ASSY

F2C-U3850-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06808-00

Unavailable

5

CASE ASSY 2

F3Y-U592A-10-00

Unavailable

6

PACKING 5

F3Y-U266D-10-00

Unavailable

7

CASE ASSY 1

F5P-U591A-00-00

Unavailable

8

. PACKING 6

F5P-U266E-00-00

Unavailable

9

GRIP, HAND

F5P-U271B-00-00

Unavailable

10

BOLT, WITH WASHER

90119-08828-00

Unavailable

11

NUT, LOCK

F3Y-U142L-00-00

Unavailable

12

PIN

F1K-U3774-00-00

Unavailable

13

BOLT, WITH WASHER

90119-08828-00

Unavailable

14

WASHER, PLATE

90201-109U6-00

Unavailable

15

BOLT,WITH WASHER

90119-10815-00

Unavailable

16

BRACKET

F2C-U826C-00-00

Unavailable

17

RIVET 1

F4P-U516R-01-00

Unavailable

18

PACKING 4

F5P-U266C-00-00

Unavailable

19

RIVET 1

F4P-U516R-01-00

Unavailable

20

BRACKET, 2 (FX31)

F5P-U0512-00-00

Unavailable

21

RIVET 1

F4P-U516R-01-00

Unavailable

22

BRACKET, 2 (FX31)

F5P-U0512-00-00

Unavailable

23

COVER 1

F5P-U8187-20-00

Unavailable

24

COVER

F5P-U8188-00-00

Unavailable

25

PACKING,SEAL

F5P-U7824-00-00

Unavailable

26

KNOB

F5P-U6862-00-00

Unavailable

27

NUT

F3X-U517E-00-00

Unavailable

28

WASHER

F5P-U1174-00-00

Unavailable

29

SKI TOWS

F1B-U1629-00-00

Unavailable

30

PLATE A

GP7-U4953-10-00

Unavailable

31

NUT, NYLON (6J8)

95780-08300-00

Unavailable

32

RFM. DECK ASSY 1

F5P-U9310-00-00

Unavailable

33

BOLT,WITH WASHER

90119-08870-00

Unavailable

34

NUT, NYLON (6J8)

95780-08300-00

Unavailable
