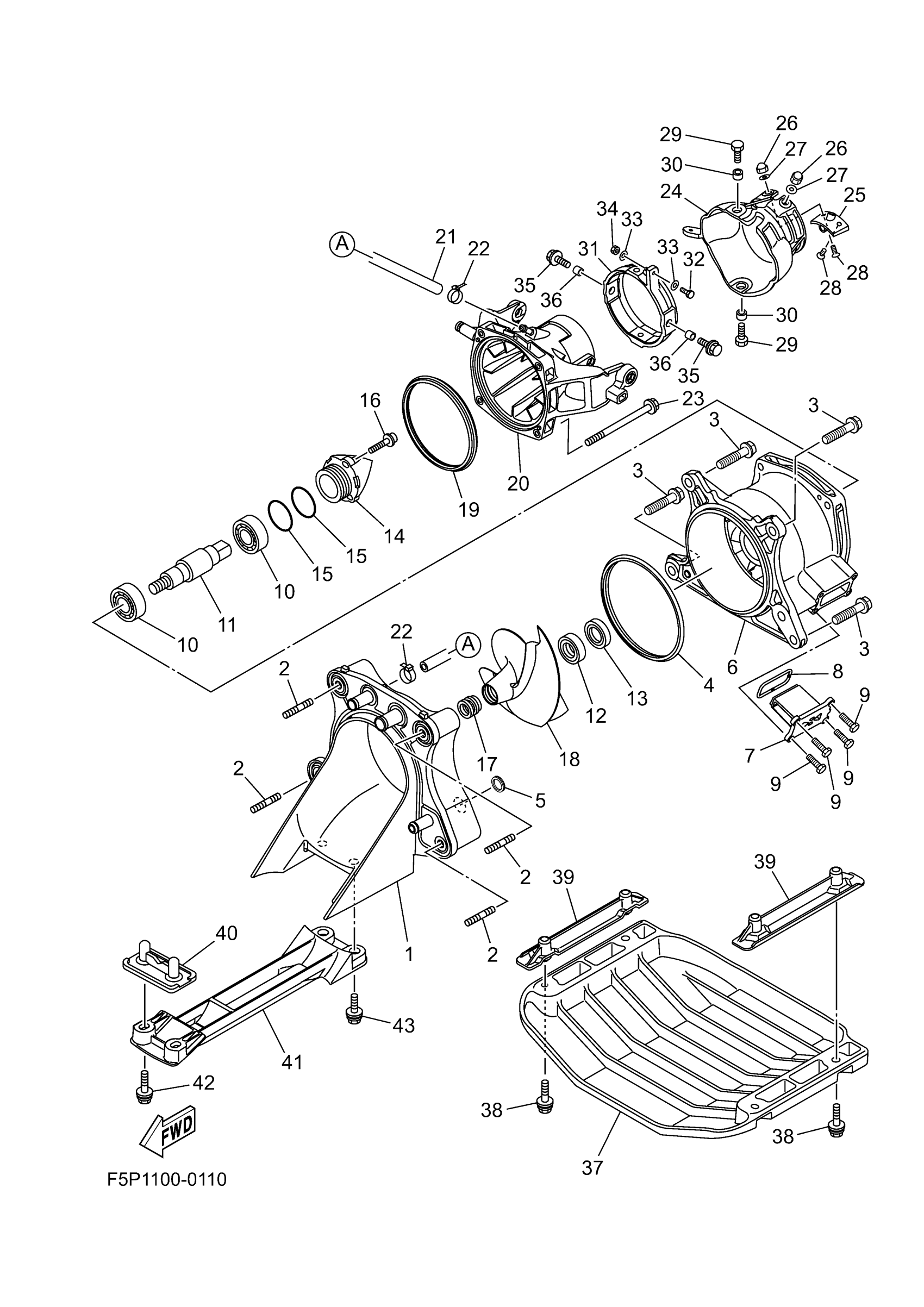

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 JET UNIT 1 Diagram
#
1
PLATE, TRANSOM 2
6MP-G5833-00-00
Unavailable
2
BOLT, STUD
90116-10803-00
Unavailable
3
BOLT, WITH WASHER
90119-10811-00
Unavailable
4
. PACKING
6MP-G6883-00-00
Unavailable
5
. RING, SEAL
6MP-G5874-00-00
Unavailable
6
HOUSING, IMPELLER
6MP-R1312-00-00
Unavailable
7
FILTER
6MP-G6882-00-00
Unavailable
8
O-RING
6MP-G2414-00-00
Unavailable
9
BOLT,WITH WASHER
90119-06890-00
Unavailable
10
BEARING
93306-255X7-00
Unavailable
11
SHAFT, DRIVE 4
6GA-G5514-00-00
Unavailable
12
OIL SEAL(6R7)
93102-25M34-00
$16.99
13
OIL SEAL(6R7)
93101-25M50-00
Unavailable
14
CAP
6EX-R1326-10-00
Unavailable
15
. O-RING
93210-44003-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-06823-00
Unavailable
17
CAP, IMPELLER
6DU-51319-00-00
Unavailable
18
IMPELLER
6MN-R1321-00-00
Unavailable
19
. O-RING
93211-49800-00
Unavailable
20
NOZZLE
6MN-R1318-00-00
Unavailable
21
HOSE (L380)
90445-14M25-00
Unavailable
22
CLAMP
90465-10098-00
Unavailable
23
BOLT, WITH WASHER
90119-10811-00
Unavailable
24
NOZZLE DEFLECTOR ASSY
6MN-R1300-00-00
Unavailable
25
SPOUT
6MP-U269B-00-00
Unavailable
26
NUT (J17)
95380-06800-00
Unavailable
27
WASHER, PLATE
90201-06020-00
Unavailable
28
SCREW, FLAT HEAD
98780-06016-00
Unavailable
29
BOLT, WITH WASHER
90119-08841-00
Unavailable
30
COLLAR
90387-08M30-00
Unavailable
31
RING,TRIM
6MN-R1190-00-00
Unavailable
32
STUD, JOINT BALL
6GA-U1461-00-00
Unavailable
33
WASHER, PLATE
90201-06020-00
Unavailable
34
NUT, HEXAGON
95380-06600-00
Unavailable
35
BOLT, WITH WASHER
90119-08841-00
Unavailable
36
COLLAR
90387-08M30-00
Unavailable
37
PLATE 2
F5P-U273B-00-00
Unavailable
38
BOLT
F4L-U3222-01-00
Unavailable
39
BRACKET 2
F5P-U8572-00-00
Unavailable
40
BRACKET, 3
F2S-U8577-00-00
Unavailable
41
SCREEN, INTAKE
F5P-U72B7-00-00
Unavailable
42
BOLT
F3Y-U1426-01-00
Unavailable
43
BOLT
F3Y-U1426-01-00
Unavailable
