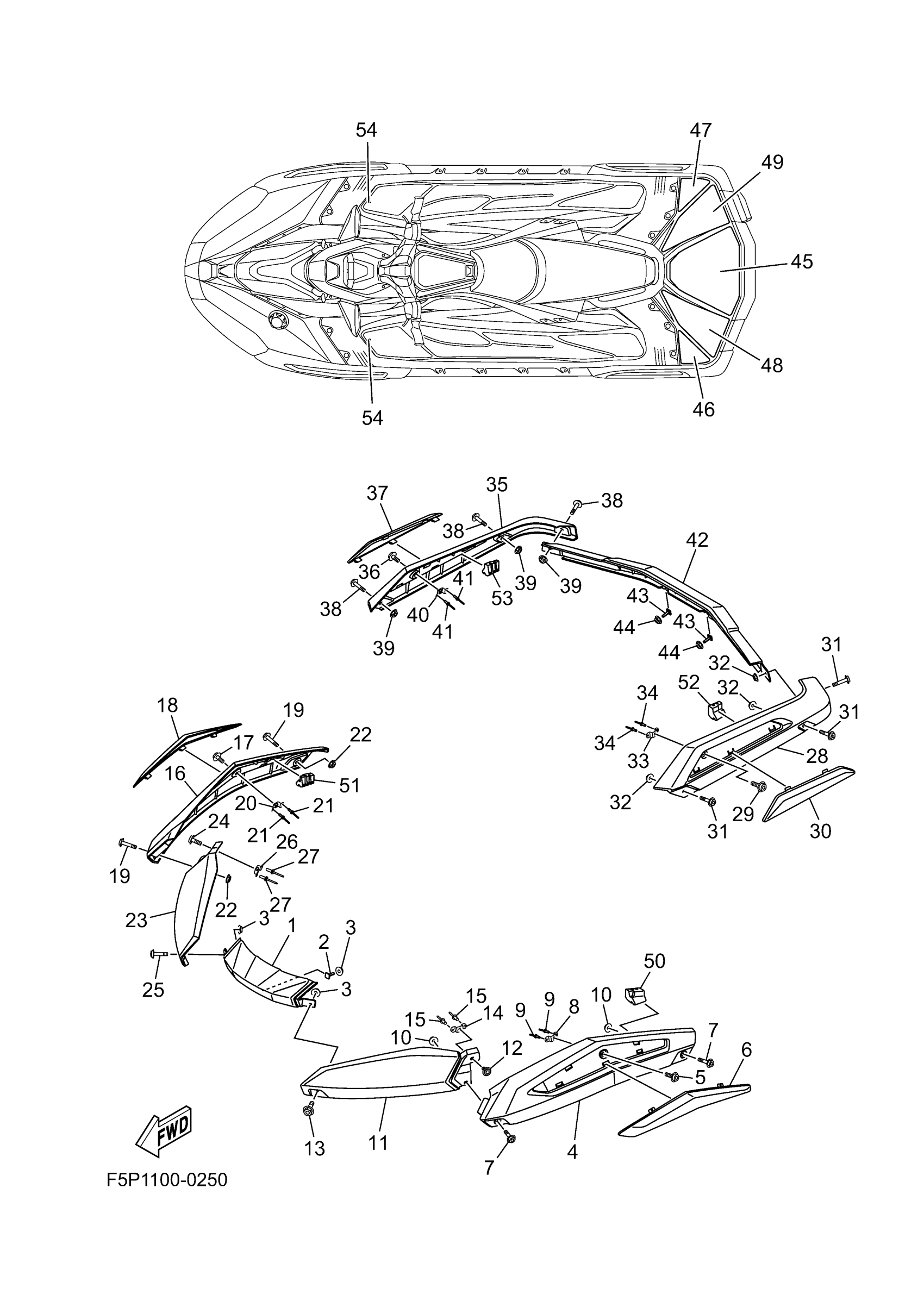

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F5P-U2511-00-00

Unavailable

2

BOLT, SPECIAL

F1W-U491K-02-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

Unavailable

4

GUARD,GUNWALE 1

F5P-U256C-00-00

Unavailable

5

SCREW

F7K-U8198-00-00

$2.99

6

CORE, GUNWALE 1

F5P-U2535-00-00

Unavailable

7

SCREW

F5G-U6829-09-00

Unavailable

8

BRACKET

F3X-U4949-00-00

Unavailable

9

RIVET, BLIND

90267-489U6-00

Unavailable

10

NUT, LOCK

F2N-U142L-00-00

Unavailable

11

JOINT, GUNWALE LH

F5P-U252E-00-00

Unavailable

12

SCREW

F7K-U8198-00-00

$2.99

13

SCREW

F5G-U6829-09-00

Unavailable

14

BRACKET

F3X-U4949-00-00

Unavailable

15

RIVET, BLIND

90267-489U6-00

Unavailable

16

GUARD,GUNWALE 2

F5P-U256D-00-00

Unavailable

17

SCREW

F7K-U8198-00-00

$2.99

18

CORE, GUNWALE 2

F5P-U2536-00-00

Unavailable

19

SCREW

F5G-U6829-09-00

Unavailable

20

BRACKET

F3X-U4949-00-00

Unavailable

21

RIVET, BLIND

90267-489U6-00

Unavailable

22

NUT, LOCK

F2N-U142L-00-00

Unavailable

23

JOINT, GUNWALE RH

F5P-U252F-00-00

Unavailable

24

SCREW

F7K-U8198-00-00

$2.99

25

SCREW

F5G-U6829-09-00

Unavailable

26

BRACKET

F3X-U4949-00-00

Unavailable

27

RIVET, BLIND

90267-489U6-00

Unavailable

28

GUNWALE, STERN 1

F5P-U251D-00-00

Unavailable

29

SCREW

F7K-U8198-00-00

$2.99

30

CORE, GUNWALE

F5P-U2537-00-00

Unavailable

31

SCREW

F5G-U6829-09-00

Unavailable

32

NUT, LOCK

F2N-U142L-00-00

Unavailable

33

BRACKET

F3X-U4949-00-00

Unavailable

34

RIVET, BLIND

90267-489U6-00

Unavailable

35

GUNWALE, STERN 2

F5P-U251E-00-00

Unavailable

36

SCREW

F7K-U8198-00-00

$2.99

37

CORE, GUNWALE

F5P-U2538-00-00

Unavailable

38

SCREW

F5G-U6829-09-00

Unavailable

39

NUT, LOCK

F2N-U142L-00-00

Unavailable

40

BRACKET

F3X-U4949-00-00

Unavailable

41

RIVET, BLIND

90267-489U6-00

Unavailable

42

COVER, GUNWALE 1

F5P-U252C-00-00

Unavailable

43

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

44

NUT, LOCK

F2N-U142L-00-00

Unavailable

45

MAT, UPPER

F5R-U3581-00-00

Unavailable

46

MAT, STEP 5

F5R-U351N-00-00

Unavailable

47

MAT, STEP 6

F5R-U351P-00-00

Unavailable

48

MAT, STEP 7

F5R-U351R-00-00

Unavailable

49

MAT, STEP 8

F5R-U351S-00-00

Unavailable

50

PLUG 1

F5P-UM8U0-00-00

Unavailable

51

PLUG 2

F5P-UM8U1-00-00

Unavailable

52

PLUG 3

F5P-UM8U2-00-00

Unavailable

53

PLUG 4

F5P-UM8U3-00-00

Unavailable

54

PLUG

F5P-U358B-00-00

Unavailable
