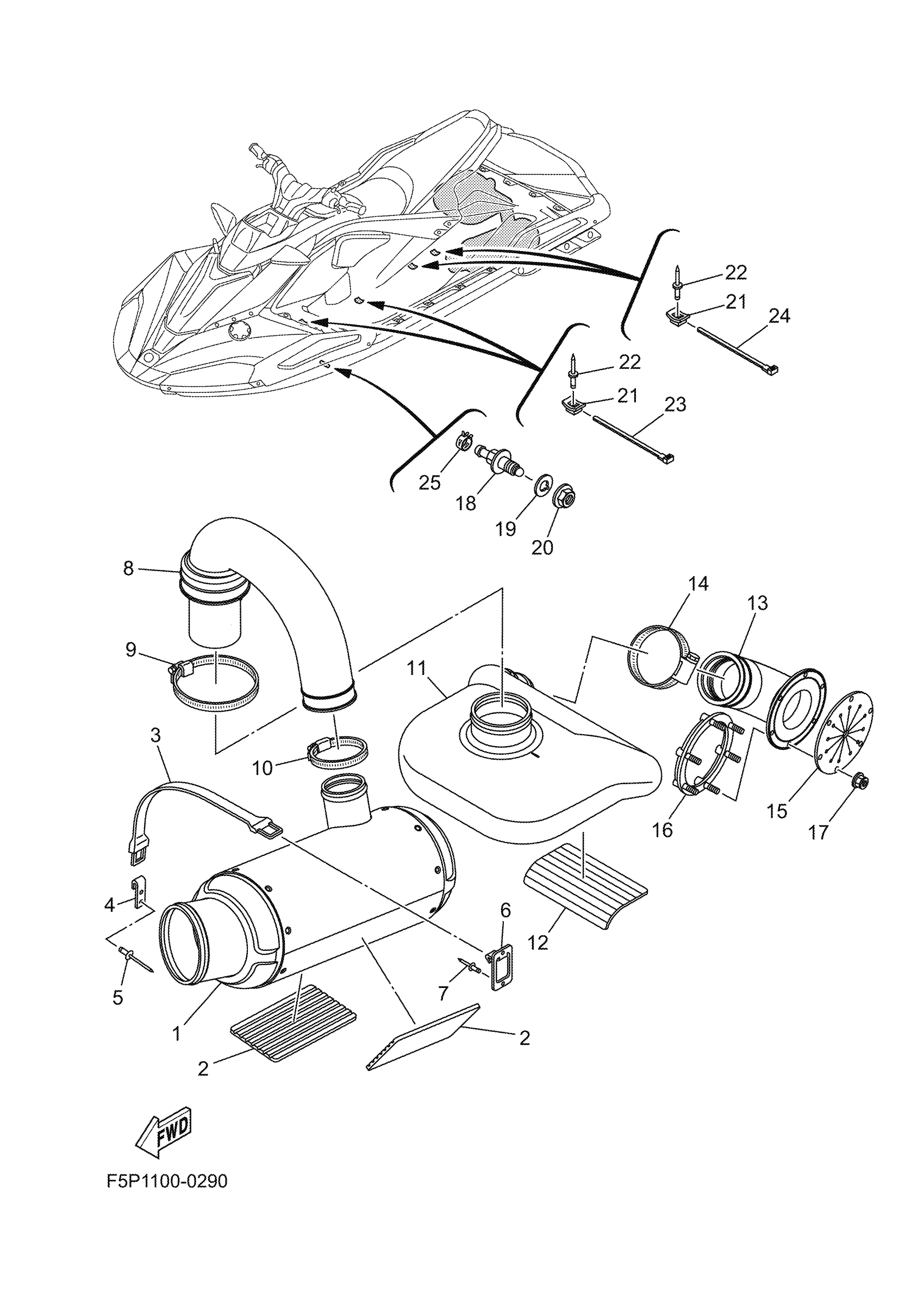

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F3Y-U7550-01-00

$357.56

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOOK A

F1K-U5772-04-00

$6.29

7

RIVET (EU0)

90267-48938-00

$5.00

8

HOSE, EXHAUST

F5P-U7555-00-00

Unavailable

9

BAND, HOSE 79

90601-179U8-00

$5.31

10

HOSE CLAMP ASSY

90450-99804-00

Unavailable

11

TANK, WATER

F3Y-U4261-00-00

$75.74

12

PAD, BATTERY

F1S-U8221-00-00

$2.75

13

HOSE,EXHAUST 3

F3Y-U758D-00-00

$21.20

14

BAND, HOSE 79

90601-179U8-00

$5.31

15

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

16

PLATE

F1S-U757B-01-00

$22.97

17

NUT, LOCK

F2N-U142L-00-00

$1.00

18

PILOT, WATER

F2C-U753B-01-00

$2.44

19

GASKET

F2C-U7564-02-00

$4.77

20

NUT

F2C-U2733-00-00

$1.87

21

BASE, CLAMP

F1W-U828M-00-00

$1.23

22

RIVET, BLIND

90267-48806-00

$2.00

23

CLAMP

90464-32801-00

$1.23

24

BAND

90601-200U2-00

$3.16

25

CLIP

90467-150A5-00

$2.64
