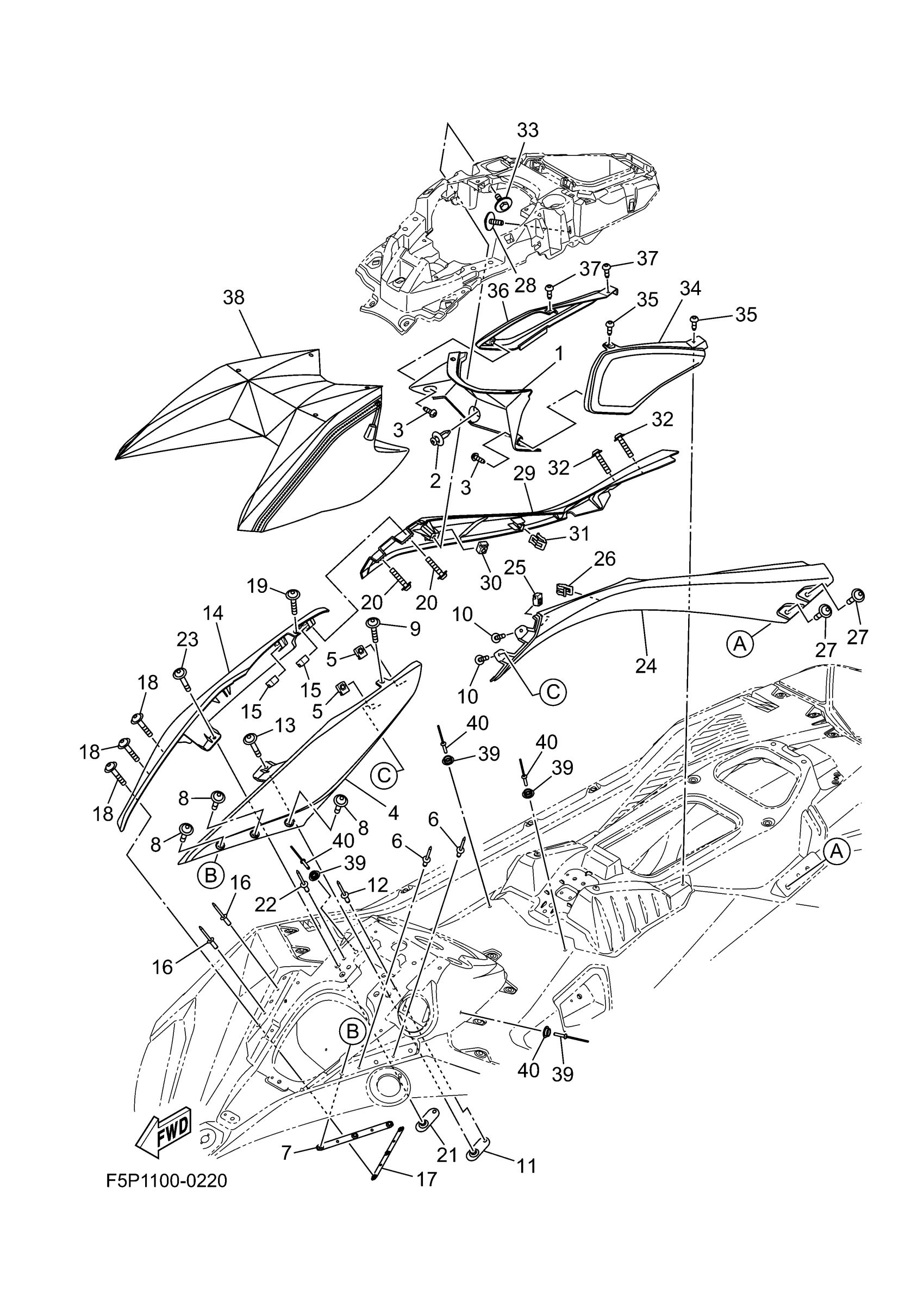

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 ENGINE HATCH 3 Diagram

#

Description
Price

1

COVER, GLOVE BOX

F5P-U4785-00-00

Unavailable

2

RIVET

F4P-U1454-00-00

Unavailable

3

SCREW

F2S-U13C1-00-00

Unavailable

4

COVER, SIDE 1

F5M-U377B-01-P0

Unavailable

5

NUT

F3X-U517E-00-00

Unavailable

6

RIVET 1

F4P-U516R-01-00

Unavailable

7

BRACKET 1

F5P-U0511-00-00

Unavailable

8

SCREW

F5G-U6829-00-00

Unavailable

9

SCREW

F5G-U6829-09-00

Unavailable

10

SCREW

F5G-U6829-09-00

Unavailable

11

PLATE, FIX

F2X-U5175-00-00

Unavailable

12

RIVET 1

F4P-U516R-01-00

Unavailable

13

SCREW

F5G-U6829-00-00

Unavailable

14

COVER, SIDE 2

F5M-U377C-01-P0

Unavailable

15

NUT

F3X-U517E-00-00

Unavailable

16

RIVET 1

F4P-U516R-01-00

Unavailable

17

BRACKET 1

F5P-U0511-00-00

Unavailable

18

SCREW

F5G-U6829-00-00

Unavailable

19

SCREW

F5G-U6829-09-00

Unavailable

20

SCREW

F5G-U6829-09-00

Unavailable

21

PLATE, FIX

F2X-U5175-00-00

Unavailable

22

RIVET 1

F4P-U516R-01-00

Unavailable

23

SCREW

F5G-U6829-00-00

Unavailable

24

FRAME

F5M-U3663-00-P0

Unavailable

25

NUT

F3X-U517E-00-00

Unavailable

26

CLIP

F3Y-U153K-00-00

Unavailable

27

SCREW

F5G-U6829-00-00

Unavailable

28

BOLT

F3X-U13B4-00-00

Unavailable

29

FRAME

F5M-U3664-00-P0

Unavailable

30

NUT

F3X-U517E-00-00

Unavailable

31

CLIP

F3Y-U153K-00-00

Unavailable

32

SCREW

F5G-U6829-00-00

Unavailable

33

BOLT

F3X-U13B4-00-00

Unavailable

34

PAD, KNEE 1

F5P-U353C-10-00

Unavailable

35

SCREW

F2S-U13C1-00-00

Unavailable

36

PAD, KNEE 2

F5P-U353D-10-00

Unavailable

37

SCREW

F2S-U13C1-00-00

Unavailable

38

FOOT REST COMP.

F5P-U4976-00-00

Unavailable

39

RING, SNAP

F5P-U1443-00-00

Unavailable

40

RIVET 1

F5P-U516R-00-00

Unavailable
