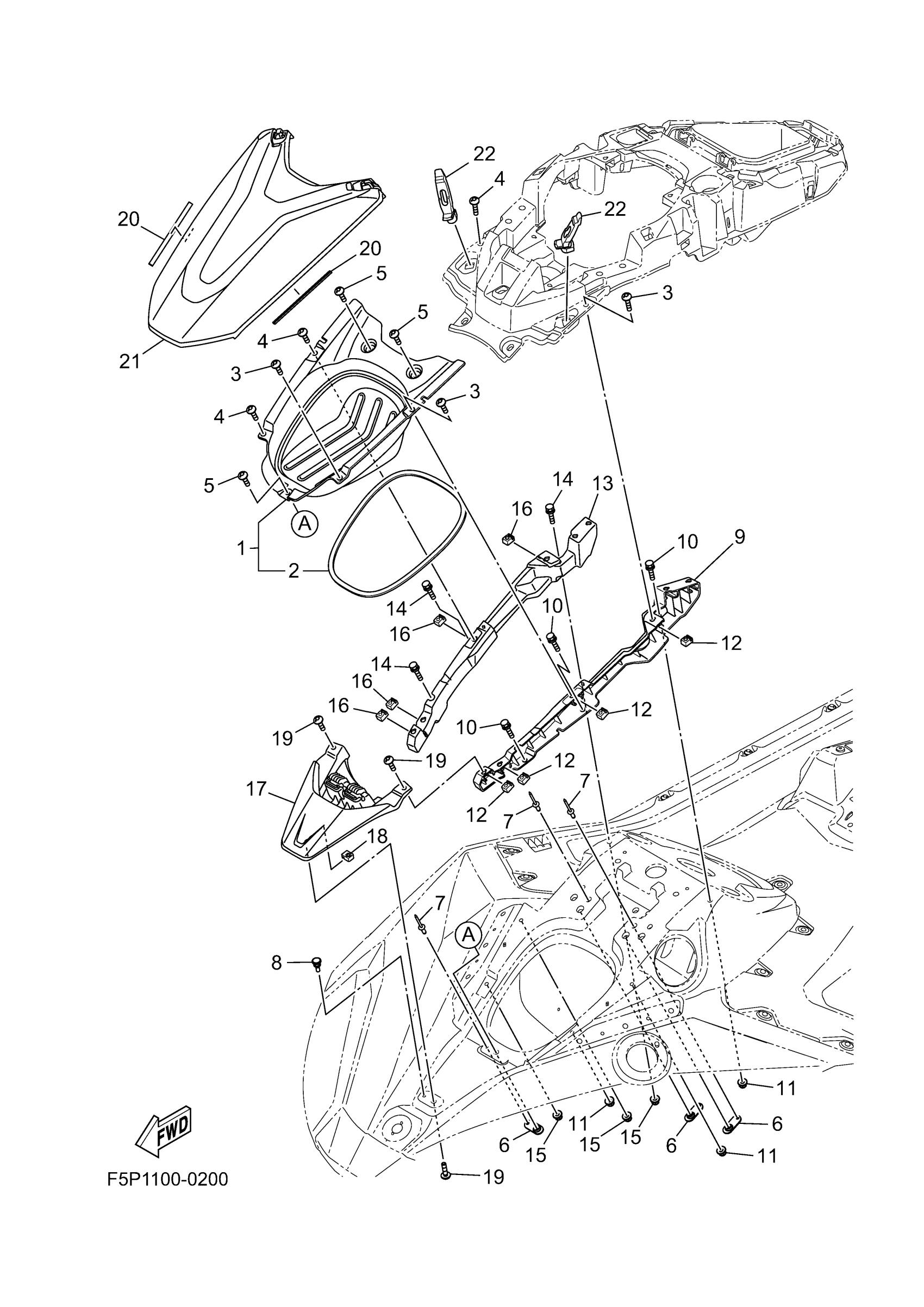

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 ENGINE HATCH 1 Diagram

#

Description
Price

1

BOWLOCKER ASSY

F5P-U475A-00-00

Unavailable

2

. PACKING 1

F3Y-U2663-00-00

Unavailable

3

SCREW

F5G-U7823-09-00

Unavailable

4

SCREW

F5G-U7823-09-00

Unavailable

5

SCREW

F5G-U7823-00-00

Unavailable

6

PLATE, FIX

F2X-U5175-00-00

Unavailable

7

RIVET 1

F4P-U516R-01-00

Unavailable

8

PLUG

F5P-U358B-00-00

$7.99

9

BRKT., COVER SIDE 1

F5P-U377M-00-00

Unavailable

10

BOLT, WITH WASHER

90119-06892-00

Unavailable

11

NUT, LOCK

F2N-U142L-00-00

Unavailable

12

NUT

F3X-U517E-00-00

Unavailable

13

BRKT, COVER SIDE 2

F5P-U377N-00-00

Unavailable

14

BOLT, WITH WASHER

90119-06892-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

Unavailable

16

NUT

F3X-U517E-00-00

Unavailable

17

COVER, FRONT

F5P-U513M-10-00

Unavailable

18

NUT

F3X-U517E-00-00

Unavailable

19

SCREW

F5G-U7823-09-00

Unavailable

20

PACKING 3

F4L-U266B-01-00

Unavailable

21

OUTER, ENGINE HATCH

F5P-U519F-10-00

Unavailable

22

LOCK 1

F5P-U264L-00-00

Unavailable
