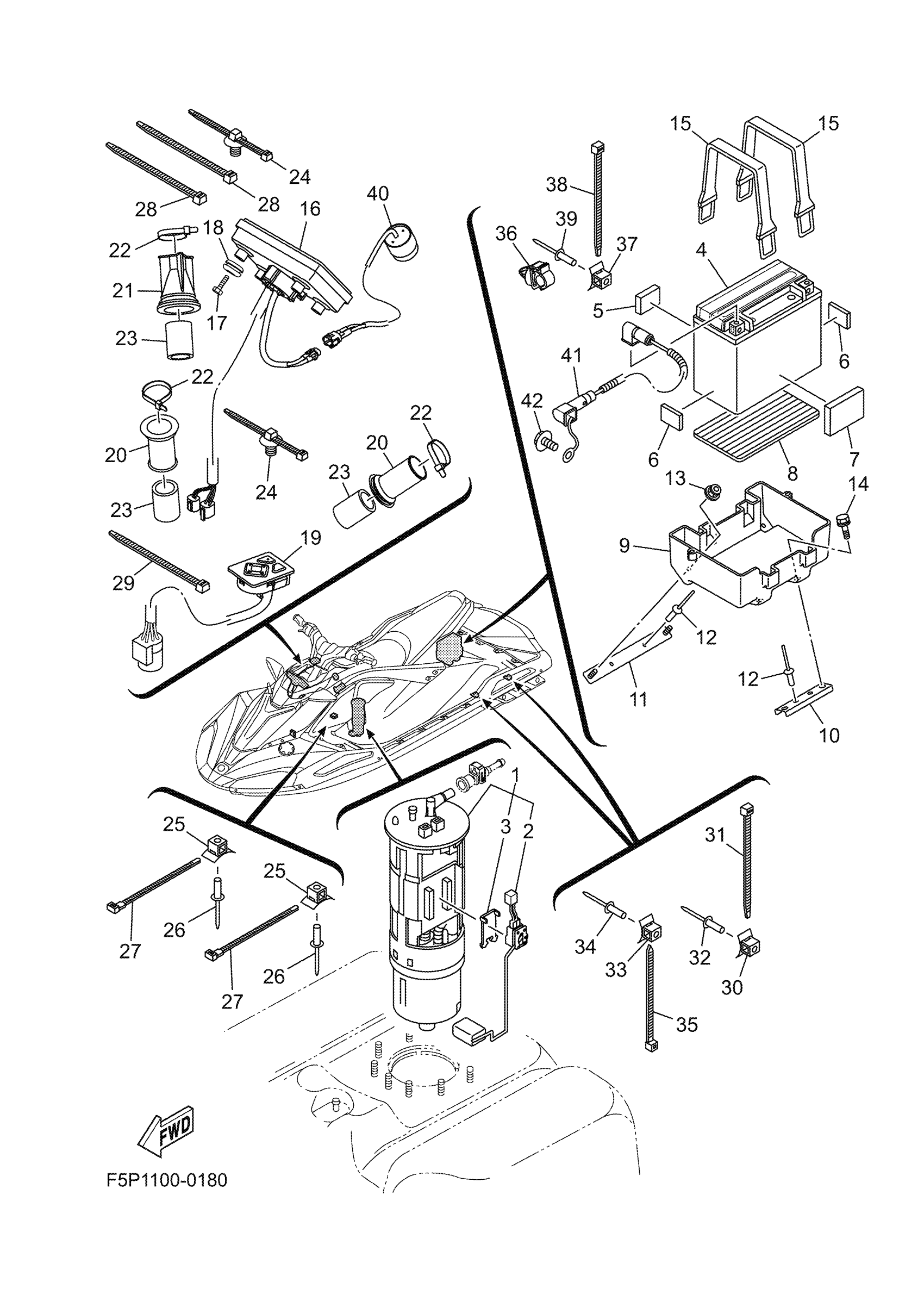

Yamaha JB1050CB (JETBLASTER LTD) F5P1 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

2

FUEL SENDER ASSY

6S5-682E0-10-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

5

PACKING

F2C-U1743-00-00

Unavailable

6

PAD, BATTERY

EU0-U8221-31-00

$2.99

7

MAT 2

F1W-U759C-01-00

Unavailable

8

PAD, BATTERY

F1S-U8221-00-00

Unavailable

9

CASE, BATTERY

F2S-U8211-00-00

Unavailable

10

PLATE, BASE 2

F2S-U8592-00-00

Unavailable

11

PLATE, BASE 3

F2S-U8593-00-00

Unavailable

12

RIVET (EU0)

90267-48938-00

Unavailable

13

NUT, LOCK

F2N-U142L-00-00

Unavailable

14

BOLT, WITH WASHER

90119-06820-00

Unavailable

15

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

16

METER ASSY

F5M-U820A-01-00

Unavailable

17

BOLT, WITH WASHER

90119-05803-00

Unavailable

18

. GROMMET

90480-19800-00

Unavailable

19

SWITCH ASSY.

F4P-U8090-02-00

Unavailable

20

GROMMET

GU2-6822E-01-00

Unavailable

21

GROMMET

F3J-U822E-01-00

Unavailable

22

CLAMP

90464-32801-00

Unavailable

23

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

24

CLAMP

1NS-F1338-00-00

Unavailable

25

BASE, CLAMP

F1W-U828M-00-00

Unavailable

26

RIVET, BLIND

90267-48806-00

Unavailable

27

CLAMP

90464-32801-00

Unavailable

28

CLAMP

F2C-U4256-00-00

Unavailable

29

CLAMP

F2C-U4256-00-00

Unavailable

30

BASE, CLAMP

F1W-U828M-00-00

Unavailable

31

CLAMP

90464-32801-00

Unavailable

32

RIVET, BLIND

90267-48806-00

Unavailable

33

BASE, CLAMP

F1W-U828M-00-00

Unavailable

34

RIVET, BLIND

90267-48806-00

Unavailable

35

CLAMP

90464-32801-00

Unavailable

36

CLAMP

90464-10008-00

Unavailable

37

BASE, CLAMP

F1W-U828M-00-00

Unavailable

38

CLAMP

90464-32801-00

Unavailable

39

RIVET, BLIND

90267-48806-00

Unavailable

40

BUZZER

F1S-68341-00-00

Unavailable

41

WIRE, MINUS LEAD

6GA-82116-00-00

Unavailable

42

BOLT, WITH WASHER

97513-08514-00

Unavailable
