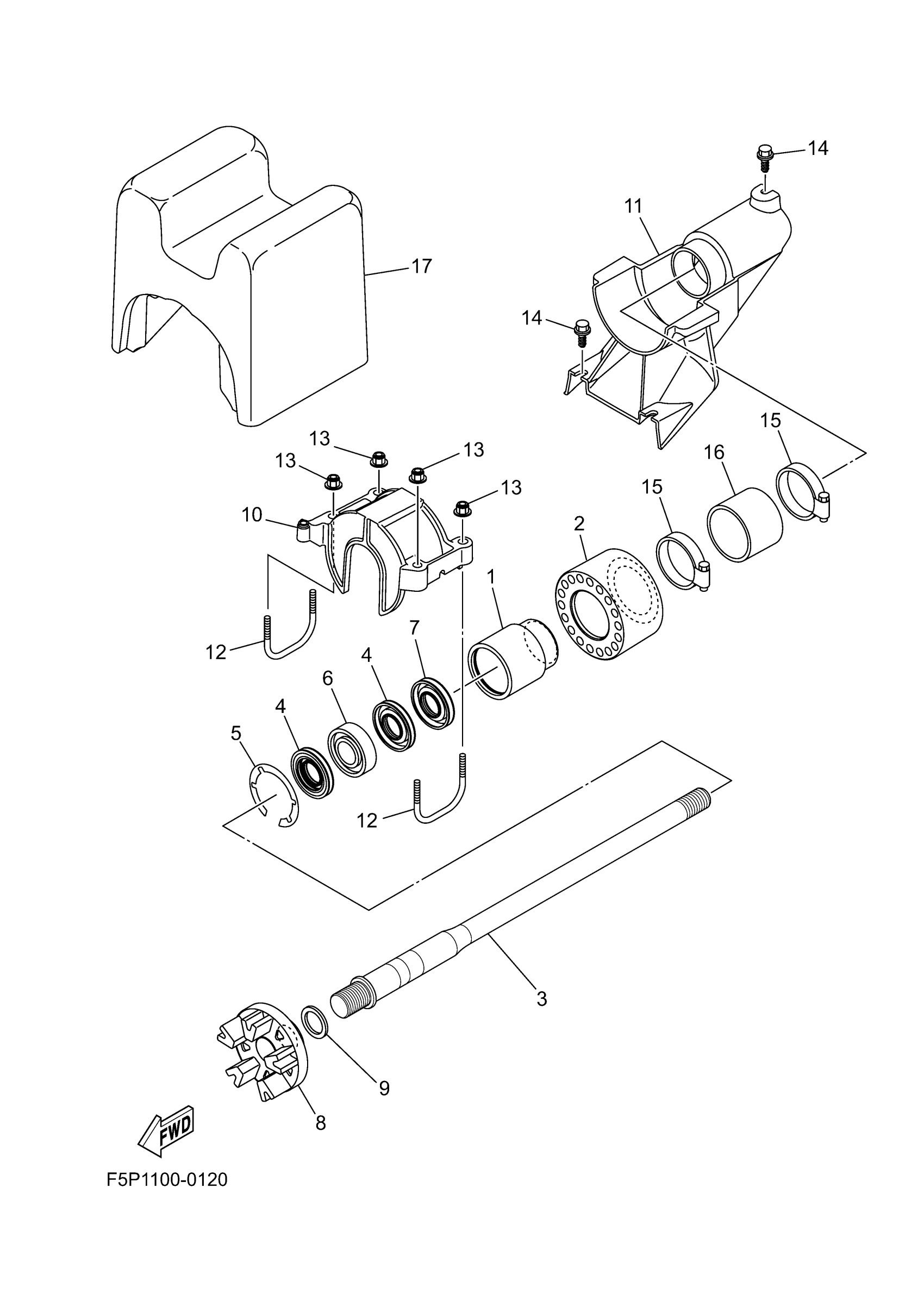

Yamaha JB1050BB (JETBLASTER PRO 2UP) F5M1 2025 JET UNIT 2 Diagram

Description

Price

HOUSING, BEARING

6GA-G5332-00-00

Unavailable

DAMPER

6GA-G5235-00-00

$17.94

SHAFT, DRIVE

6MP-G5511-00-00

Unavailable

OIL SEAL(62T)

93101-25M55-00

$24.36

CIRCLIP(26H)

99009-52500-00

$10.02

BEARING

93306-205XG-00

$8.61

OIL SEAL

93101-24001-00

$30.69

FLANGE, COUPLING 1

6GA-G5593-00-00

$24.39

WASHER, PLATE

90201-24800-00

$1.37

CAP

F3Y-U2155-01-00

$27.98

JOINT, PIPE

F5P-U883E-00-00

Unavailable

NUT,INSERT

F3Y-U3746-01-00

$2.07

NUT, LOCK

F2N-U142L-00-00

$1.00

BOLT

90109-06832-00

$2.44

BAND, HOSE 55

90601-155U4-00

$5.87

PIPE 1

F3Y-U883B-00-00

$4.77

FLOTATION, STERN RH

F3Y-U892D-01-00

Unavailable
