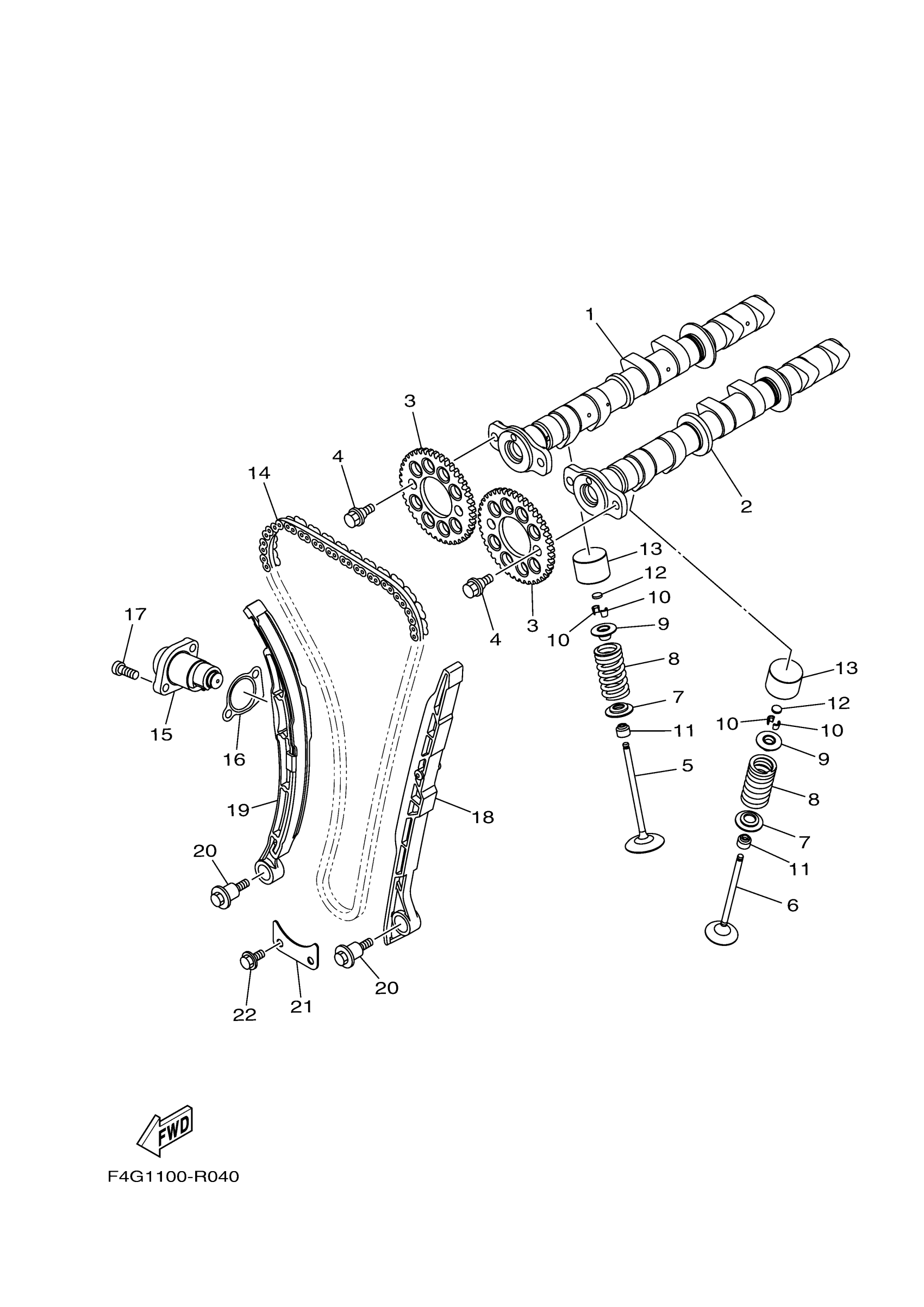

Yamaha JB1050AB (JETBLASTER PRO 3UP) F5R1 2025 VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

6EY-12170-00-00

$210.59

2

CAMSHAFT ASSY 2

6EY-12180-00-00

$210.59

3

SPROCKET, CAM CHAI

2HC-12176-00-00

$31.93

4

BOLT, FLANGE

90105-07004-00

$4.66

5

VALVE, INTAKE

8GL-12111-10-00

$23.98

6

VALVE, EXHAUST

8GL-12121-10-00

$42.31

7

SEAT, VALVE SPRING

1RC-12116-00-00

$1.78

8

SPRING, VALVE INNER

8GL-12113-00-00

$6.57

9

RETAINER, VALVE SPRING

3D7-12117-00-00

$4.75

10

COTTER, VALVE

1WG-12118-00-00

$5.50

11

SEAL, VALVE STEM

2HC-12119-00-00

$4.29

12

PAD, ADJUSTING 2 (1.20)

1HX-12168-00-00

Unavailable

12

PAD, ADJUSTING 2 (1.25)

1HX-12168-20-00

Unavailable

12

PAD, ADJUSTING 2 (1.30)

1HX-12168-40-00

$12.14

12

PAD, ADJUSTING 2 (1.35)

1HX-12168-60-00

$11.67

12

PAD, ADJUSTING 2 (1.40)

1HX-12168-80-00

Unavailable

12

PAD, ADJUSTING 2 (1.45)

1HX-12168-A0-00

Unavailable

12

PAD, ADJUSTING 2 (1.50)

1HX-12168-F0-00

Unavailable

12

PAD, ADJUSTING 2 (1.55)

1HX-12168-H1-00

Unavailable

12

PAD, ADJUSTING 2 (1.60)

1HX-12168-K1-00

Unavailable

12

PAD, ADJUSTING 2 (1.65)

1HX-12168-M1-00

Unavailable

12

PAD, ADJUSTING 2 (1.70)

1HX-12168-R1-00

Unavailable

12

PAD, ADJUSTING 2 (1.75)

1HX-12168-U1-00

Unavailable

12

PAD, ADJUSTING 2 (1.80)

1HX-12168-W1-00

Unavailable

12

PAD, ADJUSTING 2 (1.85)

1HX-12168-Y1-00

Unavailable

12

PAD, ADJUSTING 2 (1.90)

1HX-12169-11-00

Unavailable

12

PAD, ADJUSTING 2 (1.95)

1HX-12169-31-00

Unavailable

12

PAD, ADJUSTING 2 (2.00)

1HX-12169-50-00

Unavailable

12

PAD, ADJUSTING 2 (2.05)

1HX-12169-70-00

Unavailable

12

PAD, ADJUSTING 2 (2.10)

1HX-12169-90-00

Unavailable

12

PAD, ADJUSTING 2 (2.15)

1HX-12169-E0-00

Unavailable

12

PAD, ADJUSTING 2 (2.20)

1HX-12169-G0-00

Unavailable

12

PAD, ADJUSTING 2 (2.25)

1HX-12169-J0-00

Unavailable

12

PAD, ADJUSTING 2 (2.30)

1HX-12169-L0-00

Unavailable

12

PAD, ADJUSTING 2 (2.35)

1HX-12169-N0-00

Unavailable

12

PAD, ADJUSTING 2 (2.40)

1HX-12169-T0-00

Unavailable

13

LIFTER, VALVE

6EY-12153-01-00

$12.86

14

CHAIN

94591-57140-00

Unavailable

15

TENSIONER ASSY, CA

8KH-12210-00-00

Unavailable

16

GASKET, TENSIONER CASE

2C0-12213-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

DAMPER, CHAIN 1

6EY-12251-00-00

$23.99

19

DAMPER, CHAIN 2

2HC-12252-00-00

Unavailable

20

BOLT

90109-06297-00

Unavailable

21

PLATE

6EY-12279-00-00

$1.36

22

BOLT, FLANGE

95817-06012-00

Unavailable
