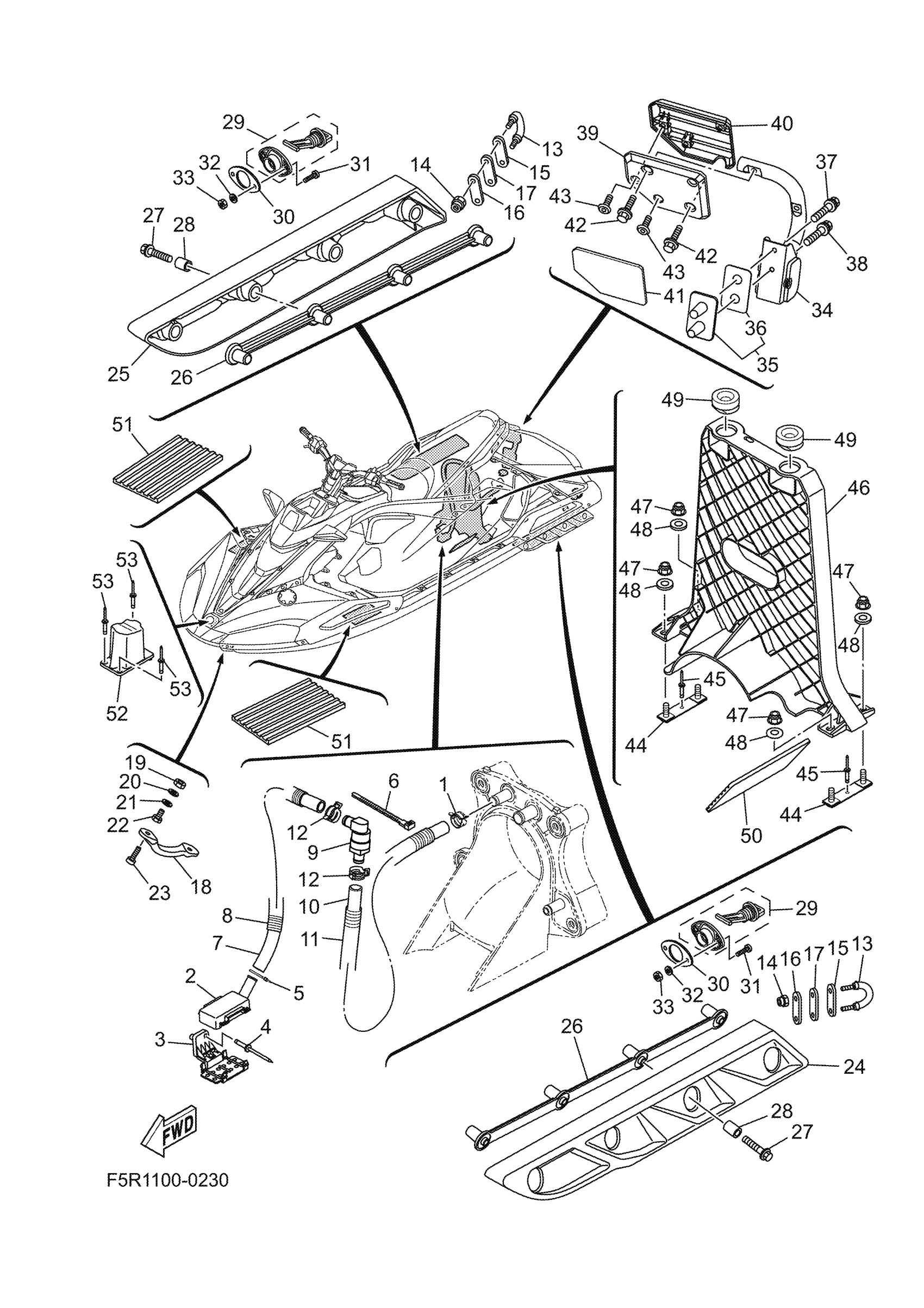

Yamaha JB1050AB (JETBLASTER PRO 3UP) F5R1 2025 HULL & DECK Diagram
#
1
CLIP
90467-190A2-00
Unavailable
2
STRAINER, BILGE
F5P-U761D-00-00
Unavailable
3
BRACKET
F5P-U7698-00-00
Unavailable
4
RIVET, BLIND
90267-489U8-00
Unavailable
5
CLAMP
90465-10098-00
Unavailable
6
BAND
90601-200U2-00
Unavailable
7
HOSE
F5P-U784C-00-00
Unavailable
8
TUBE
F3Y-U773D-10-00
Unavailable
9
JOINT, HOSE
68N-5112T-00-00
Unavailable
10
HOSE
F5P-U784C-00-00
Unavailable
11
TUBE
F3Y-U773D-10-00
Unavailable
12
CLIP
90467-190A2-00
Unavailable
13
STERN EYE
F2N-U1628-10-00
$12.99
14
NUT, NYLON (6J8)
95780-08300-00
Unavailable
15
PLATE A
GP7-U4953-10-00
Unavailable
16
PLATE A
GP7-U4953-10-00
Unavailable
17
PACKING
F1B-U1653-03-00
Unavailable
18
BOW EYE 1
F1K-61624-00-00
Unavailable
19
NUT.HEX.(COARS)
99780-12600-00
Unavailable
20
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
21
WASHER
F0X-61637-00-00
Unavailable
22
NUT
F0X-61652-01-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
24
BODY, STABILIZER LH
F5P-U885N-00-00
Unavailable
25
BODY, STABILIZER RH
F5P-U885P-00-00
Unavailable
26
BRACKET,STABILIZER
F2S-U883T-00-00
Unavailable
27
BOLT,WASHER BASED
90105-088F9-00
Unavailable
28
SPACER
F2N-U8169-10-00
Unavailable
29
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
30
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
31
SCREW, PAN HEAD
9788R-05025-00
Unavailable
32
WASHER
9299R-05200-00
Unavailable
33
NUT, FLANGE
9572R-05300-00
Unavailable
34
LADDER, STEP ASSY
F5P-U278A-00-00
Unavailable
35
BRACKET, LADDER LH
F2S-U278F-01-00
Unavailable
36
PACKING, BRKT. 1
F2S-U278H-01-00
Unavailable
37
BOLT, WITH WASHER
90119-08844-00
Unavailable
38
BOLT, WITH WASHER
90119-08844-00
Unavailable
39
STEP
F5P-U882F-00-00
Unavailable
40
PLATE, STEP 1
F5P-U884R-00-00
Unavailable
41
COVER STEP 1
F5P-U4994-00-00
Unavailable
42
BOLT, WITH WASHER
90119-06892-00
Unavailable
43
SCREW
F2S-U13C1-00-00
Unavailable
44
BRACKET
F1K-U826C-03-00
Unavailable
45
RIVET (EU0)
90267-48938-00
Unavailable
46
FRAME COMP. 2
F5P-U8702-00-00
Unavailable
47
NUT, LOCK
F3Y-U142L-00-00
Unavailable
48
WASHER
9299R-08200-00
Unavailable
49
GROMMET
J0P-F4742-00-00
Unavailable
50
PAD, BATTERY
F1S-U8221-00-00
Unavailable
51
PAD, BATTERY
F1S-U8221-00-00
Unavailable
52
PAD, LOCK
F5P-U5545-00-00
Unavailable
53
RIVET, BLIND
90267-489U2-00
Unavailable
