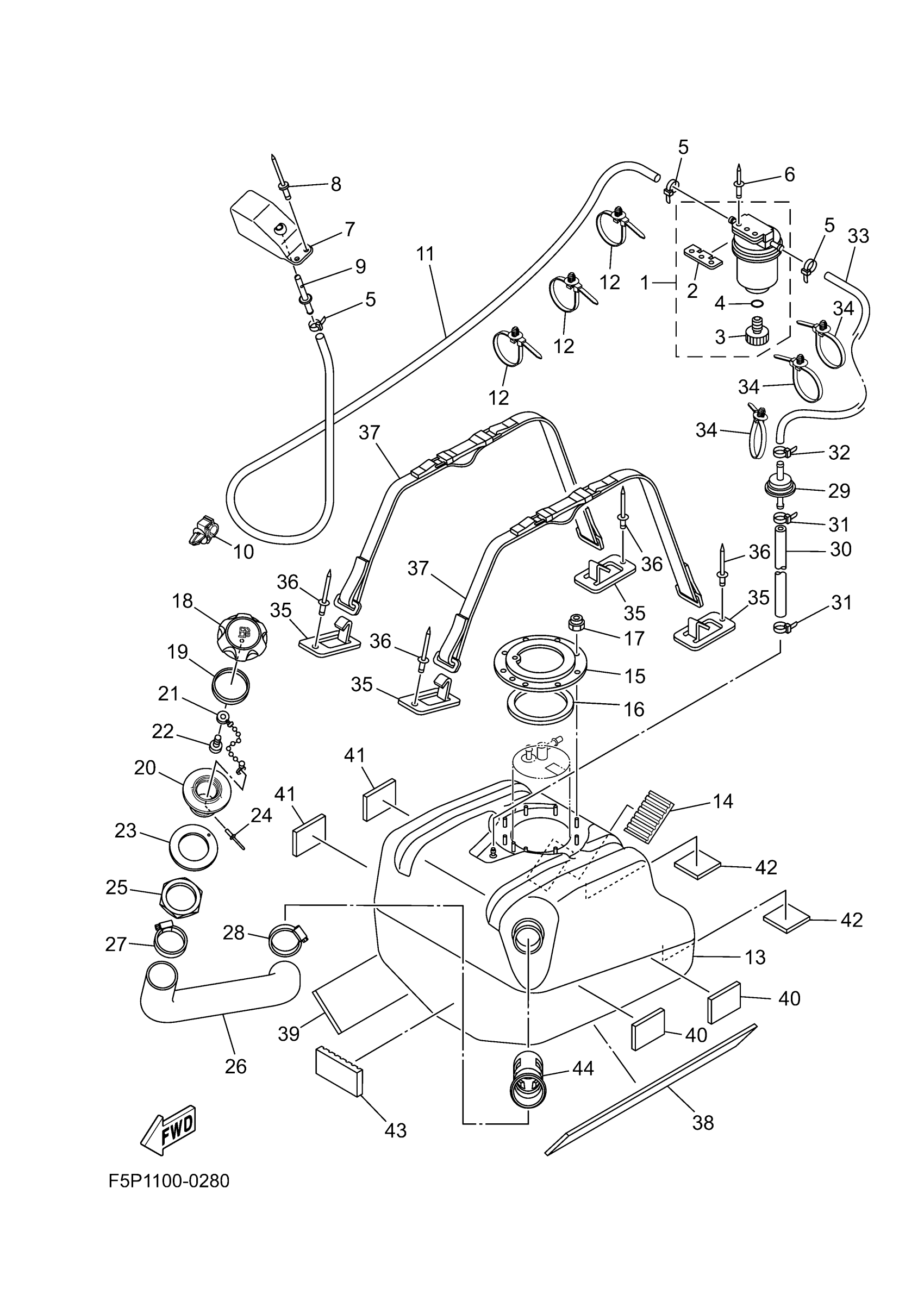

Yamaha JB1050AB (JETBLASTER PRO 3UP) F5R1 2025 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

CLAMP

90465-10098-00

$1.68

6

RIVET, BLIND

90267-489U2-00

$1.43

7

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

8

RIVET, BLIND

90267-489U6-00

$1.37

9

PIPE, VENTILATION

F1G-62149-00-00

$11.35

10

CLAMP

90464-12830-00

$0.98

11

HOSE, AIR VENT 3

F5P-U7856-01-00

Unavailable

12

CLAMP

1NS-F1338-00-00

$2.80

13

TANK, FUEL

F3Y-U7711-02-00

$244.52

14

PAD, BATTERY

F1S-U8221-00-00

$2.75

15

RING

F1B-U7773-00-00

$20.81

16

PACKING, SEAL

F1B-67747-00-00

$16.66

17

NUT, NYLON

9572R-06300-00

$2.80

18

CAP, FUEL FILLER

F2N-U7831-10-00

$14.94

19

PACKING

GP7-U7832-01-00

$5.35

20

SOCKET

GP7-U7833-11-00

$10.75

21

CHAIN BALL

GP7-U7835-00-00

$4.51

22

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

23

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

24

RIVET, BLIND

90267-329UR-00

$1.15

25

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

26

HOSE

F5P-U7844-00-00

Unavailable

27

BAND, HOSE 55

90601-155U4-00

$5.87

28

BAND, HOSE 55

90601-155U4-00

$5.87

29

CHECK VALVE

F3Y-U7767-00-00

$22.97

30

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

31

CLAMP

90465-10098-00

$1.68

32

CLAMP

90465-10098-00

$1.68

33

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

34

CLAMP

1NS-F1338-00-00

$2.80

35

HOOK A

F1K-U5772-04-00

$6.29

36

RIVET (EU0)

90267-48938-00

$5.00

37

BELT, TANK 1

F3Y-67743-01-00

$29.99

38

MAT 1

F2S-U759B-00-00

$3.86

39

MAT 1

F2S-U759B-00-00

$3.86

40

MAT 2

F1W-U759C-01-00

$2.50

41

MAT 2

F1W-U759C-01-00

$2.50

42

MAT 2

F1K-U759C-00-00

$1.72

43

PAD, BATTERY

F1S-U8221-00-00

$2.75

44

TUBE

F4L-U773D-00-00

$27.26
