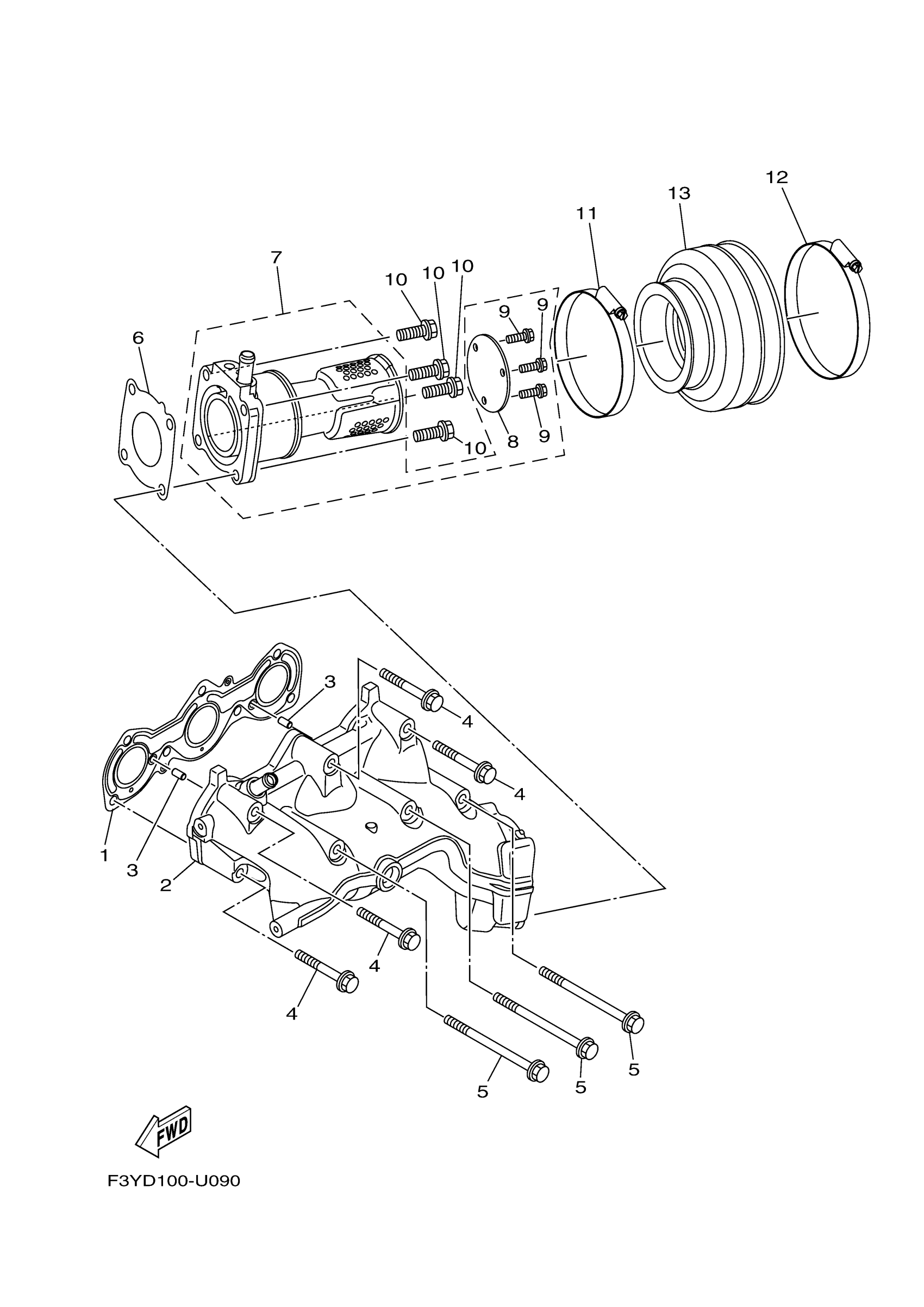

Yamaha JB1050A (JET BLASTER) F6C3 2024 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6GA-14613-00-00

$32.67

2

MUFFLER 1

6GA-14711-00-00

$507.34

3

PIN, DOWEL (614)

93606-12019-00

$3.50

4

BOLT, WITH WASHER

90119-08034-00

$3.41

5

BOLT, WITH WASHER

90119-08097-00

$6.18

6

. GASKET, MUFFLER DAMPER 1

6GA-14739-00-00

$7.59

7

PIPE, TAIL

6GA-14784-00-00

$211.75

8

. PLATE, SILENCER 6

6GA-1469W-00-00

$8.07

9

. BOLT, FLANGE DEEP RECESS

95E34-06016-00

$4.41

10

BOLT, FLANGE (3JPE)

95024-08030-00

$8.54

11

HOSE CLAMP ASSY

90450-99808-00

$5.00

12

HOSE CLAMP ASSY

90450-99810-00

$5.37

13

PIPE, OUTLET

6GA-14752-00-00

$83.81
