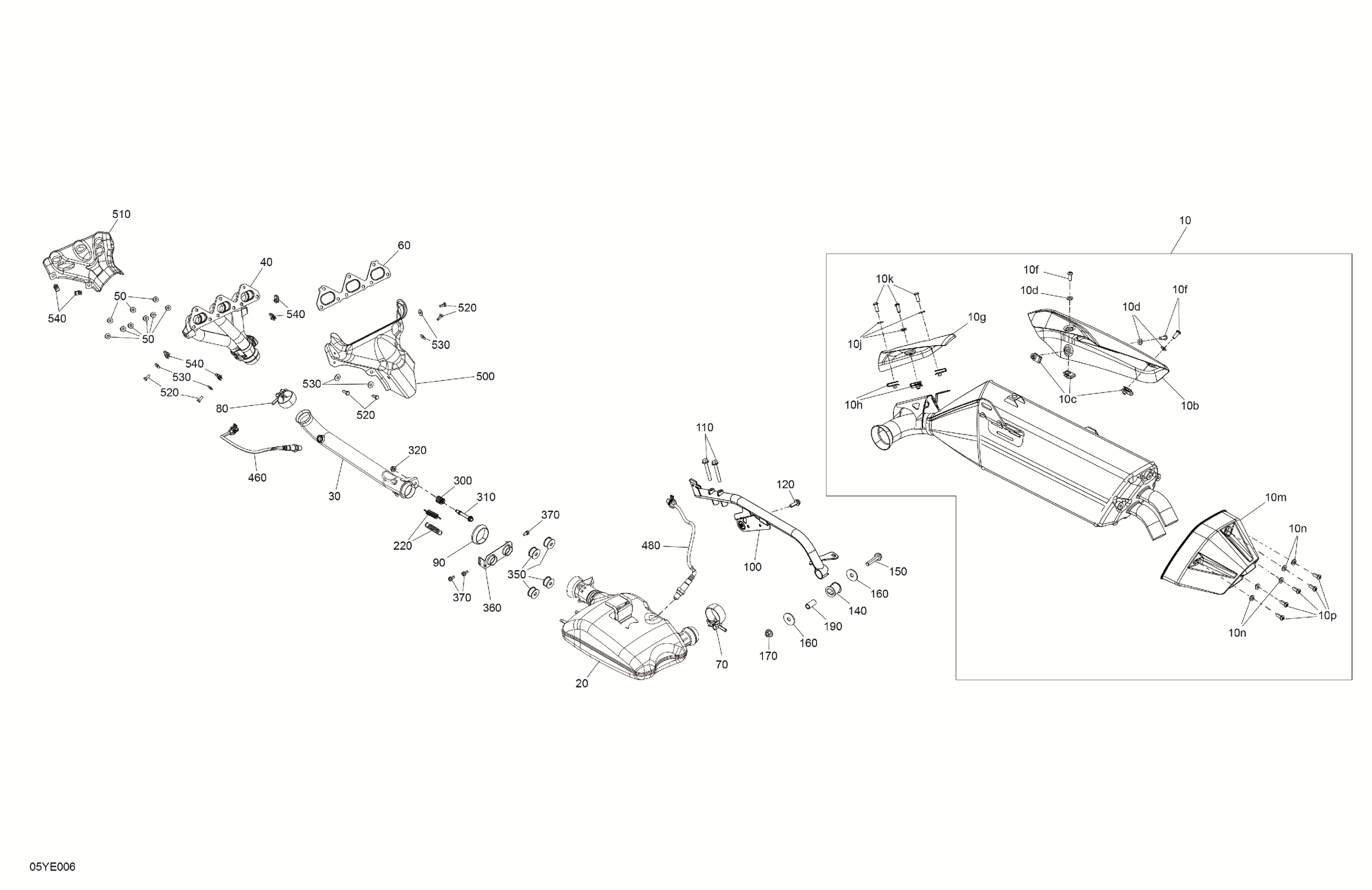

Can-Am Japan - RT LIMITED - Platine Edition - G1SD - Deep Marsala, 2025 Engine - Exhaust Diagram

#

Description
Price

10

Sterling Silver, Exhaust Muffler Sec Ass'y | Includes 10 to 10p

707603476

$1,091.99

10b

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

10c

Panel Nut M6 X 1.0

250100198

$2.11

10d

Black, Flat Washer 6 mm

234061670

$1.25

10f

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10g

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$26.99

10h

Panel Nut M6 X 1.0

250100198

$2.11

10j

Black, Flat Washer 6 mm

234061670

$1.25

10k

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10m

Sterling Silver, Rear Muffler Trim

707603477

$82.49

10n

Stainless Flat Washer M6

234061600

$0.33

10p

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

20

Primary Exhaust Muffler

707603431

$1,197.49

30

Exhaust Pipe Out

707603478

$338.99

40

Exhaust Manifold

707603565

$769.99

50

Hex. Flange Nut M8

233081416

$1.15

60

Exhaust Seal

707601985

$7.94

70

Exhaust Clamp

707600980

$24.99

80

Exhaust Clamp

707600980

$24.99

90

Exhaust Gasket

514054174

$28.49

100

Exhaust Mounting | Includes 100 to 100a7

707603879

$35.99

100a7

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

110

Hex. Flange Screw M8 X 55

207585544

$1.69

120

Hex. Flange Screw M6 X 16

210261650

$1.67

140

Anti-Vibration Rubber

293830162

$13.22

150

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

160

Washer 10 mm

506150000

$2.74

170

Hex. Flange Nut M10

233101600

$5.29

190

Bushing | Includes 240d to 240d1

503189282

$4.34

220

Spring

415107100

$6.35

300

Spring

707600682

$6.35

310

Hex. Flan. Screw Dogp. M10 X 80

250001312

$11.64

320

Hex. Flange Nut M10

233101414

$4.97

350

Anti-Vibration Rubber

707600702

$8.57

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

370

Hex. Flange Screw M6 X 12

210261250

$1.90

460

Oxygen Sensor

707600872

$144.99

480

Oxygen Sensor

707600872

$144.99

500

Heat Shield interior

707603641

$53.99

510

Heat Shield Exterior

707603642

$53.99

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

530

Flat Washer M6, Stainless

234062600

$0.77

540

Panel Nut M6 X 1.0

250100198

$2.11
