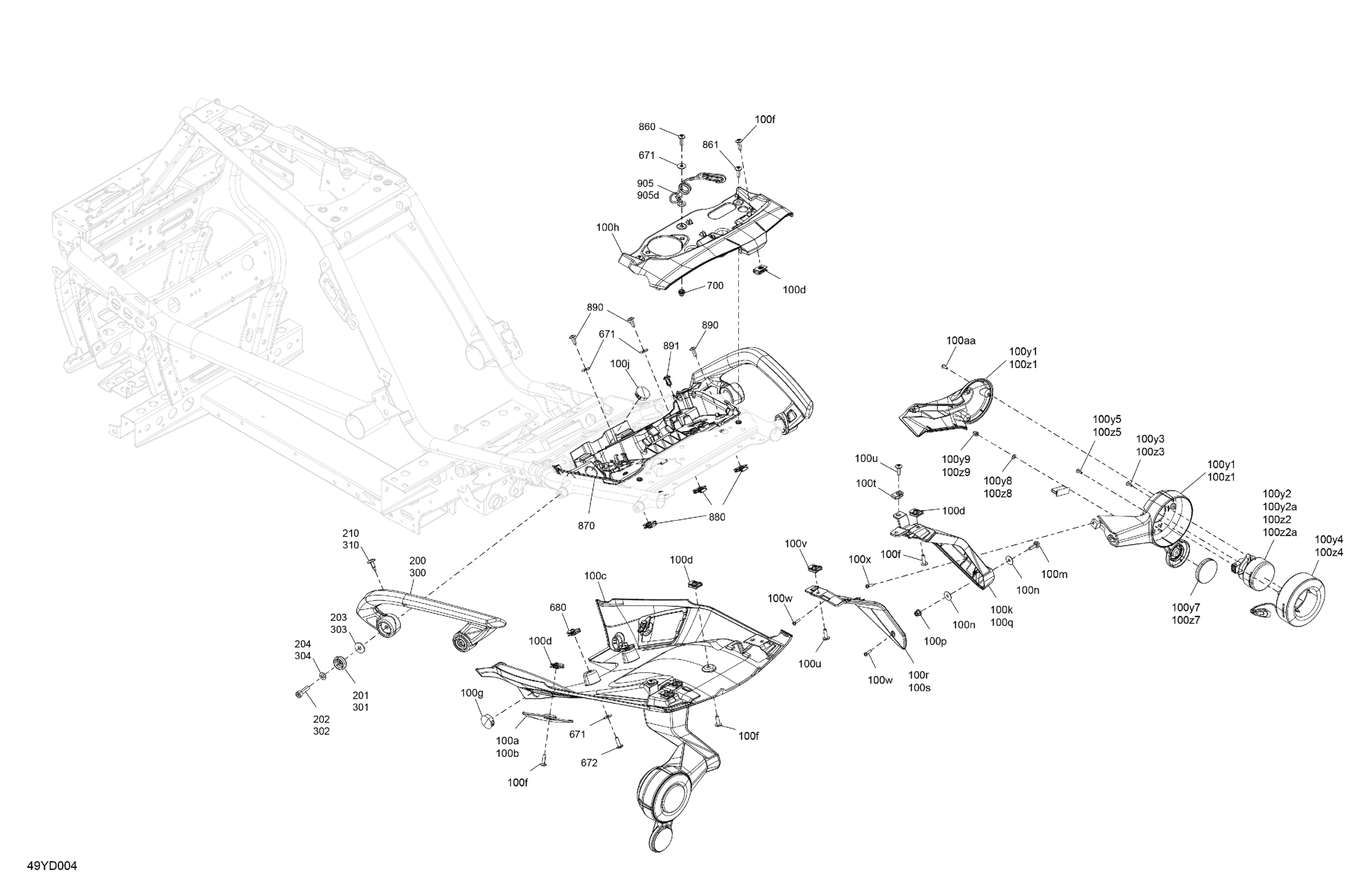

Can-Am Japan - F3 SPORT - E6RD- SPORT - Monolith Black, 2024 Body - Cargo Diagram

#

Description
Price

100a

LH Front Cap

708301513

$17.00

100b

RH Front Cap

708301514

$17.00

100c

Under Tail Cover

708001415

$55.00

100d

Panel Nut M6 X 1.0

250100208

$1.07

100f

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100g

Black, Nylon Cap

414916600

$4.32

100h

Taillight Support

708002814

$27.00

100j

Black, Nylon Cap

414916600

$4.32

100k

LH Flasher Support

708002222

$72.00

100m

Hex. Flange Screw M6 X 20

207662044

$1.66

100n

Flat Washer

224060201

$1.15

100p

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100q

RH Flasher Support

708002223

$72.00

100r

LH Cap Support

708001624

$17.00

100s

RH Cap Support

708001625

$17.00

100t

Panel Nut M6 X 1.0

250100198

$1.73

100u

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100v

Panel Nut M6 X 1.0

250100208

$1.07

100w

Torx-Truss Pt K40 X 16

250000759

$1.74

100x

Flange Torx Screw K40 X 16

250000287

$1.74

100y1

LH Housing Ass'y

708002232

$32.00

100y2

Rear Flasher

710004057

$164.00

100y2a

Bulb 12V 21W | Not Shown

715900043

$17.00

100y3

Torx Truss PT K40 x 12

250001131

$1.74

100y4

Rear Light

710004056

$402.00

100y5

Torx Truss PT K40 x 12

250001131

$1.74

100y7

Red, Reflector

705016982

$12.32

100y8

Flat Washer M5

234051670

$1.74

100y9

Cap Nut M5

250100152

$2.00

100z1

RH Housing Ass'y

708002233

$32.00

100z2

Rear Flasher

710004057

$164.00

100z2a

Bulb 12V 21W | Not Shown

715900043

$17.00

100z3

Torx Truss PT K40 x 12

250001131

$1.74

100z4

Rear Light

710004056

$402.00

100z5

Torx Truss PT K40 x 12

250001131

$1.74

100z7

Red, Reflector

705016982

$12.32

100z8

Flat Washer M5

234051670

$1.74

100z9

Cap Nut M5

250100152

$2.00

100aa

Torx Truss PT K40 x 12

250001131

$1.74

200

LH Rear Holding Handle

708003456

$106.00

201

Bushing

708302461

$19.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

203

Flat Washer 8 mm

234082410

$1.11

204

Stainless Steel Flat Washer 8 mm

234081670

$0.56

210

Tuflock Phillips Plastic Screw

414745900

$1.30

300

RH Rear Holding Handle

708003457

$106.00

301

Bushing

708302461

$19.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

303

Flat Washer 8 mm

234082410

$1.11

304

Stainless Steel Flat Washer 8 mm

234081670

$0.56

310

Tuflock Phillips Plastic Screw

414745900

$1.30

671

Stainless Steel Flat Washer

234062670

$1.74

672

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

680

Panel Nut M6 X 1.0

250100208

$1.07

700

Insert Half Hex Body M6 x 1.0

250100199

$2.54

860

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

861

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

$1.07

890

Torx Truss M8 X 16

250000881

$1.74

891

Tuflok Plastic Rivet

293150230

$1.21

905

Lanyard | Included 905 to 905d

708002532

$23.00

905d

Cord Decal

704905127

Unavailable
