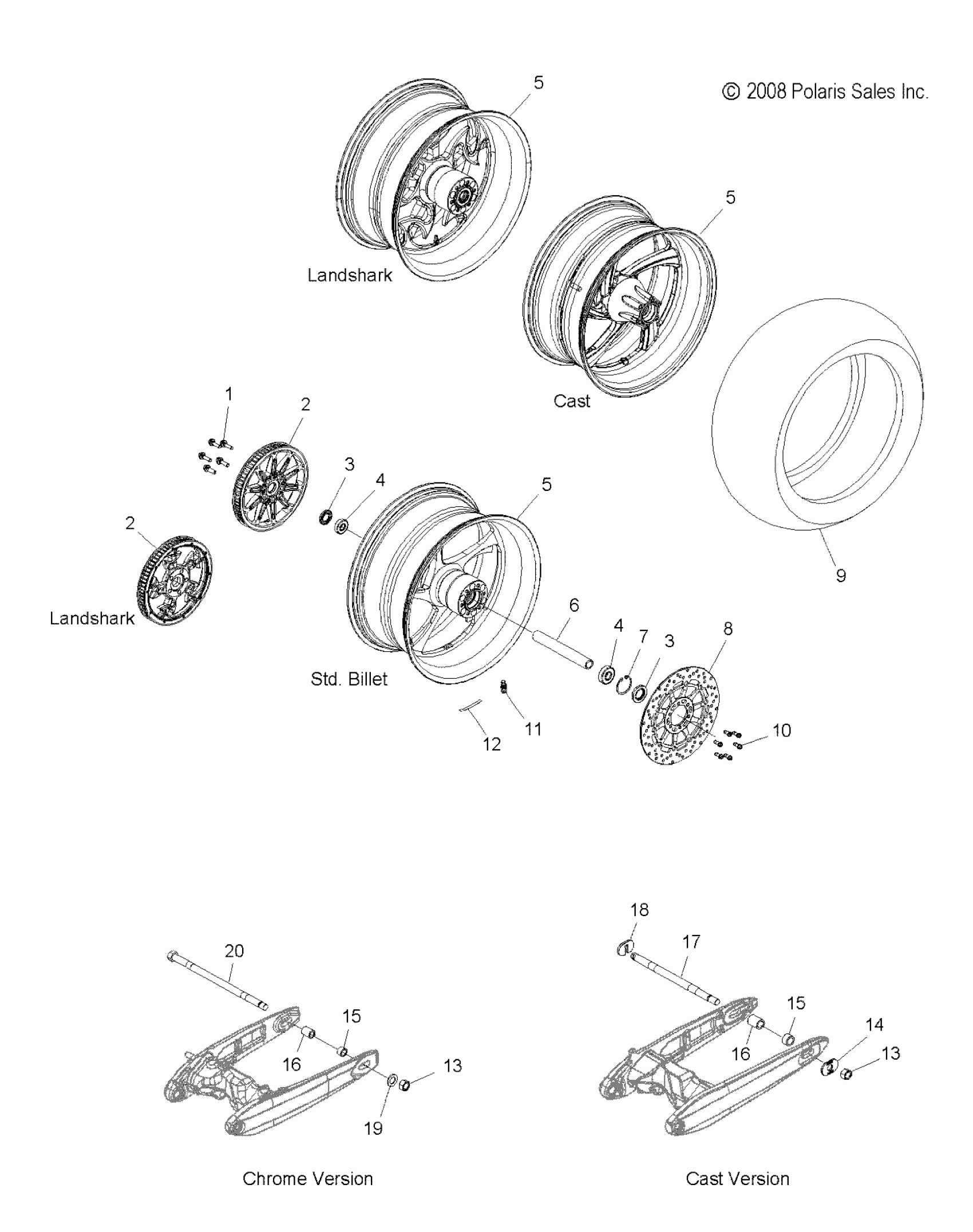

Polaris JACKPOT/NESS JACKPOT ALL OPTIONS - V09XB36/XC36 WHEELS, REAR - V09XB36/XC36 ALL OPTIONS (49VICWHEELRR09JP) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

Asm., Sprocket, Driven, 70T, Black

1332399-266

$564.99

2

Asm., Sprocket, Driven, 70T, Silver

1332399-385

Unavailable

2

Asm., Sprocket, Driven, Landshark Chrome [Ness]

1332587-156

Unavailable

2

Asm., Sprocket, Driven, 70T, Black

1332399-266

$564.99

2

Asm., Sprocket, Driven, 70T, Silver

1332399-385

Unavailable

2

Asm., Sprocket, Driven, Landshark Chrome [Ness]

1332587-156

Unavailable

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

Asm., Wheel, Rear, Cast, Black [Incl. 3-8,11,12]

1521154-266

$598.49

5

Asm., Wheel, Rear, Cast, Silver [Incl. 3-8,11,12]

1521154-385

$464.99

5

ASM., WHEEL, BILLET, REAR [Incl. 3-8,11,12]

1521386-405

$1,609.99

5

Asm., Wheel, Rear, Billet, Landshark [Incl. 3-8,11,12][Ness]

1521282

Unavailable

5

Asm., Wheel, Rear, Cast, Black [Incl. 3-8,11,12]

1521154-266

$598.49

5

Asm., Wheel, Rear, Cast, Silver [Incl. 3-8,11,12]

1521154-385

$464.99

5

ASM., WHEEL, BILLET, REAR [Incl. 3-8,11,12]

1521386-405

$1,609.99

5

Asm., Wheel, Rear, Billet, Landshark [Incl. 3-8,11,12][Ness]

1521282

Unavailable

5

Asm., Wheel, Rear, Cast, Black [Incl. 3-8,11,12]

1521154-266

$598.49

5

Asm., Wheel, Rear, Cast, Silver [Incl. 3-8,11,12]

1521154-385

$464.99

5

ASM., WHEEL, BILLET, REAR [Incl. 3-8,11,12]

1521386-405

$1,609.99

5

Asm., Wheel, Rear, Billet, Landshark [Incl. 3-8,11,12][Ness]

1521282

Unavailable

6

SPACER, BEARING

5334450

Unavailable

7

Ring, Retaining

7710526

$10.32

8

Rotor, Brake, Silver

1910959-385

$264.99

8

Rotor, Brake, Black

1910959-266

$379.99

9

TIRE, REAR

5412522

$372.99

10

SCREW

7518661

$1.59

11

VALVE, RIM [CAST]

1521312

$11.32

11

Valve, Rim, Chrome

1520995

Unavailable

12

Weight, Balance

1520618

Unavailable

13

NUT, HEX

7547226

$23.81

13

NUT, HEX

7547226

$23.81

14

WASHER, INDICATOR, AXLE, ZNC

5248452-236

$27.78

15

SPACER, LH

5631479

$3.97

15

SPACER, LH

5631479

$3.97

16

SPACER, RH

5631581

$11.99

16

SPACER, RH

5631581

$11.99

17

Axle, Rear, 250

5135747

$79.37

18

RETAINER, AXLE, REAR

5248599

$27.78

19

Washer, Flat

7550001

$3.17

20

Spindle, Wheel, Rear

1014584

Unavailable
